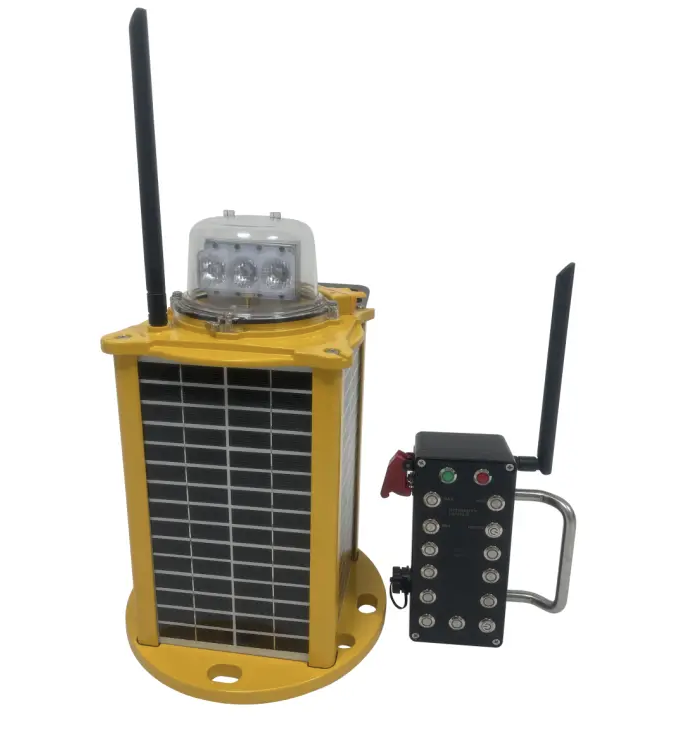

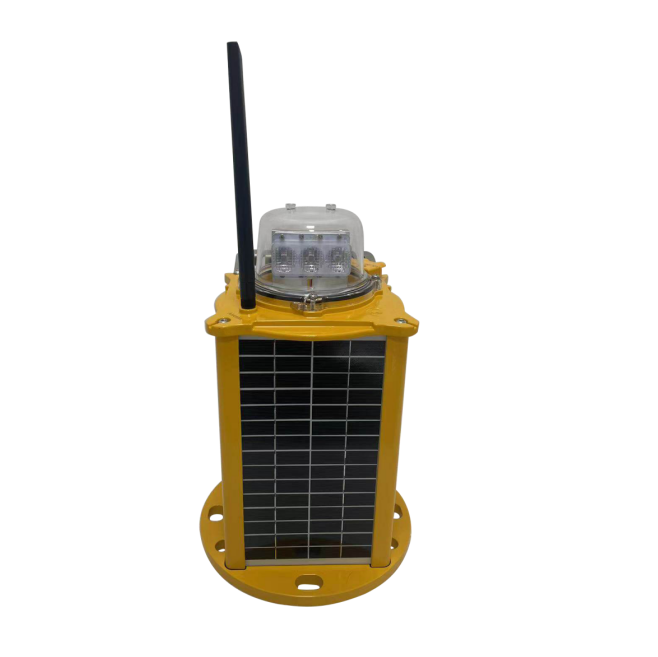

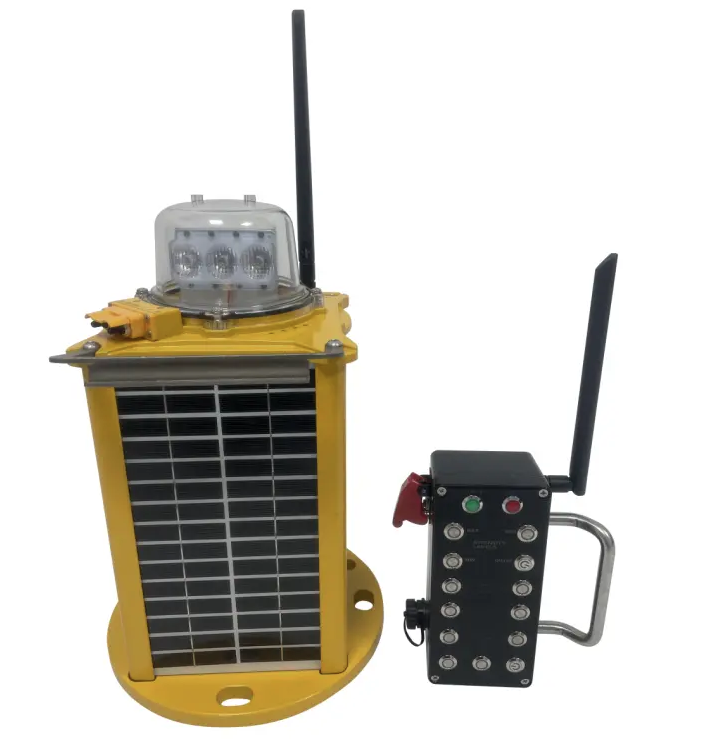

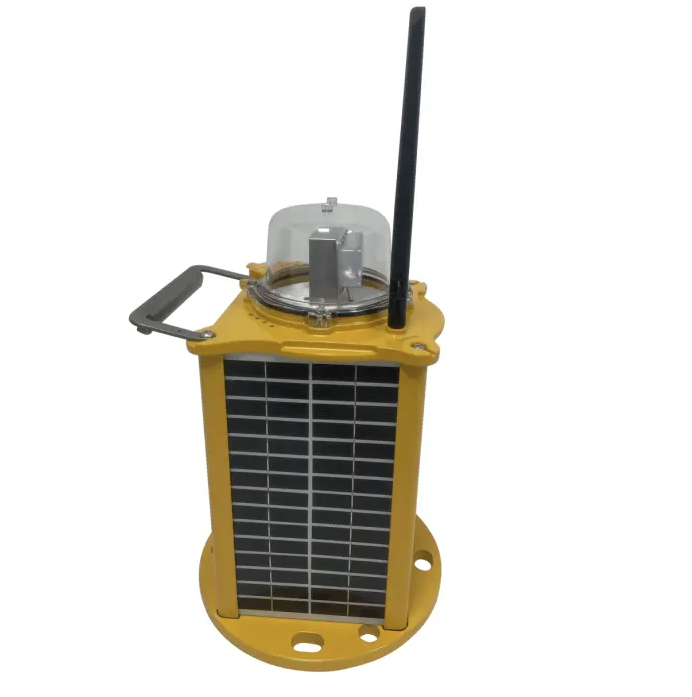

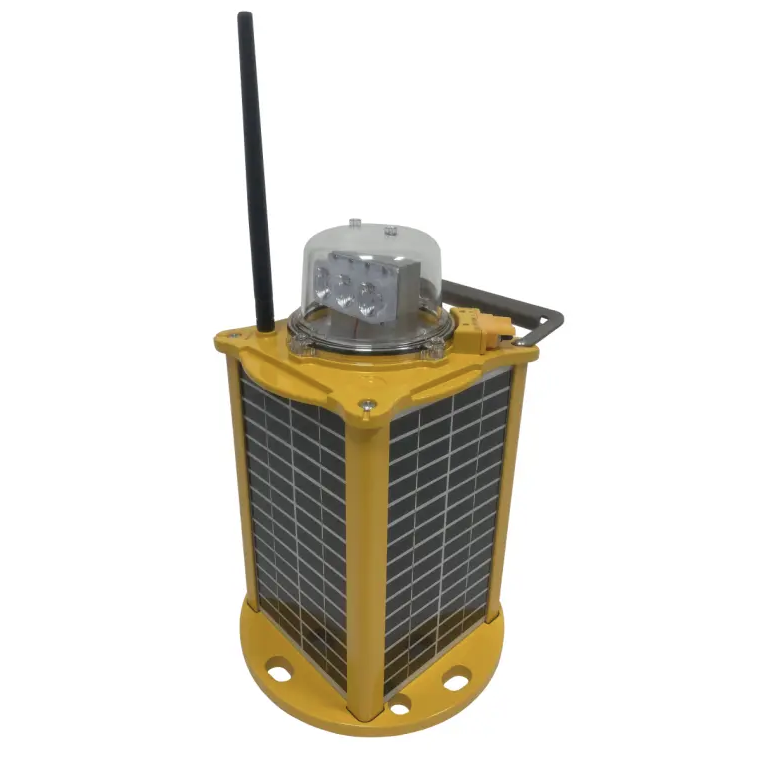

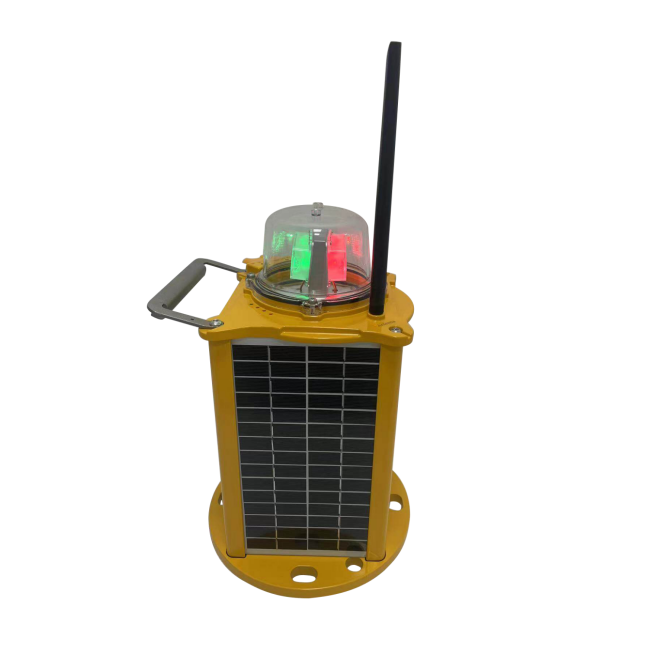

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 3

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 4

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 5

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 6

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 7

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 8

QCL500-S-TAE-XX LED Portable Radio Controlled Solar Runway Threshold End Light - Image 9

Short Description:

With its combination of advanced technology, portability, and sustainability, Altiglo QCL500-S-TAE-XX LED Portable Solar Powered Runway Threshold End Light is a reliable and efficient solution for airport runway lighting needs. Whether for temporary installations, emergency situations, or as a permanent lighting solution, this product is designed to meet the demanding requirements of modern aviation operations.

Solar panel: Solar module, mono-crystalline silicon 12V/4*5W LED

Life Time:100,000Hours

Color: Green and Red

IP grade: IP68

Item: QCL500-S-TAE-XX

E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)

Downloads

Send Enquiry

SKU: QCL500-S-TAE-XX
Category: Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller

Item	QCL500-S-TAE-XX
E LECTRICAL CHARACTERISTIC - Illumination	Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Light intensity	Red≥2500cd;Green≥3200cd
Beam angle	Bi-directional
LED Color	Green and red
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Fixed mode
Autonomy	20hrs( at max intensity ， auto n o m y can be changed acc or ding to the light intensity)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 12V/4*5W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V20Ah Lithium battery

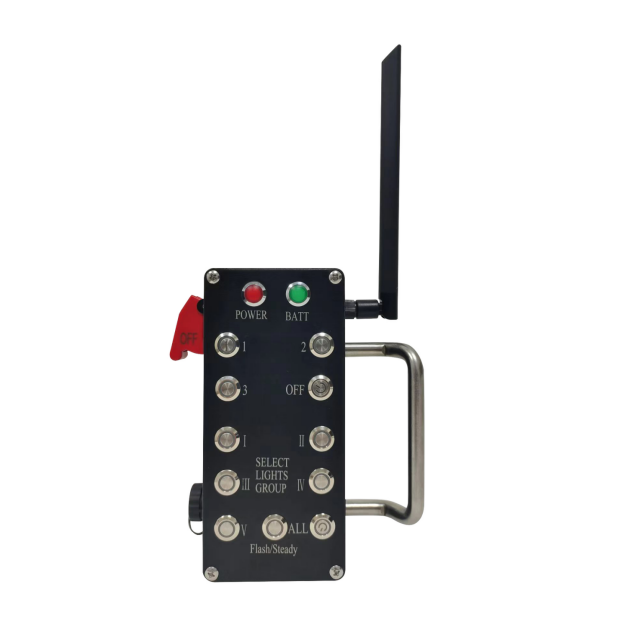

Frequency	Lora 433MHZ
B attery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP6 8
Weight	6.4 KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ + 55 ℃
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph (240kph)
Dimensions	354mm H, 234mm Diameter
Reserved bolt mounting dimensions	Φ200*M14(4 mounting holes)
OTHERS - Warranty	2 years for light 1 year for battery
Optional	GPS Synchronization function
