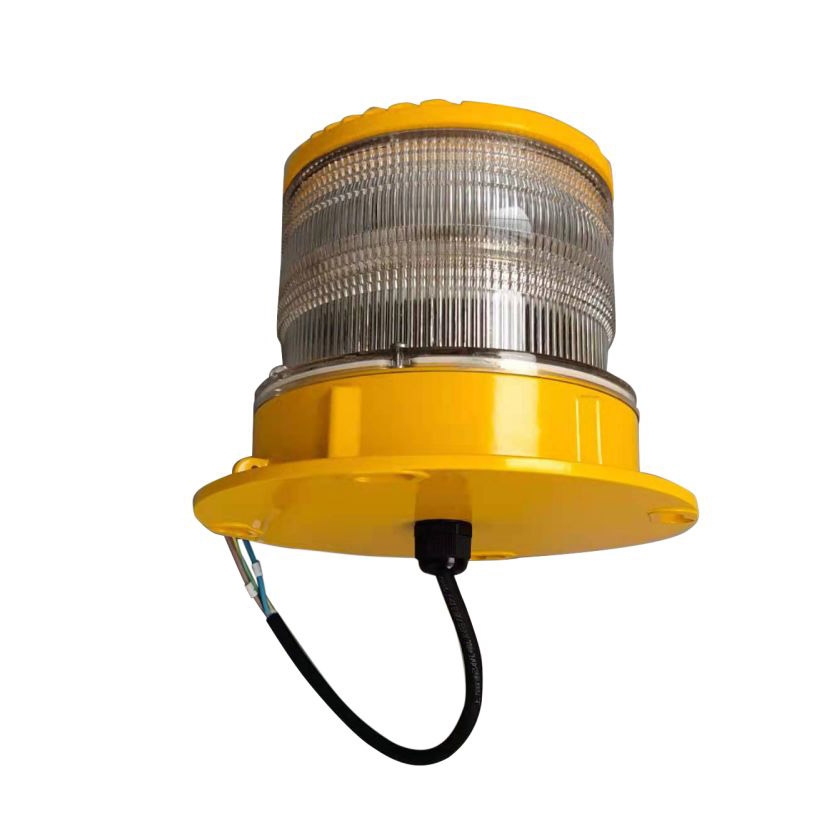

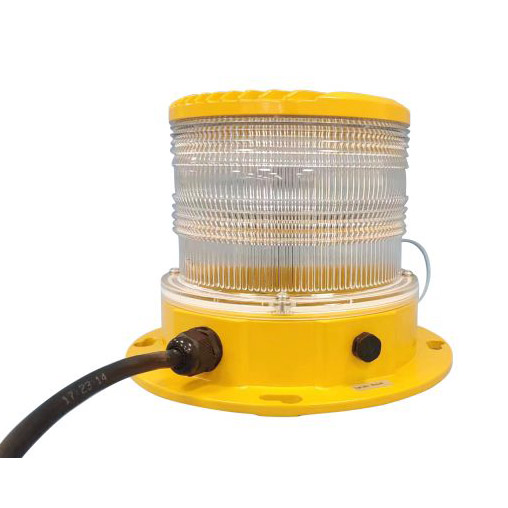

AG8K L-864 Single Medium Intensity Obstruction Light(Type B or Type C)

Short Description:

Product Name: Medium Intensity LED Steady Type or Flashing Type(Type B or Type C)

Input voltage: 85-265VAC, 50/60 Hz; 12VDC; 24VDC or 30-60VDC;

Effective Intensity: >2000 Candela

LED Lifespan: 100,000 Hours

Materials: Lens-PC; Body- Aluminum

Item: AG8K

ELECTRICAL CHARACTERISTIC - Effective Intensity: >2000 Candela

Downloads

Send Enquiry

Item	AG8K
ELECTRICAL CHARACTERISTIC - Effective Intensity	>2000 Candela
Vertical Divergence	3 Degree
Horizontal out-put	360 Degree
LED Color	Red
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Alarm type	NO & NC, dry contact relay
POWER SUPPLY - Input voltage	85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Power consumption	25W(Steady burning), 5W(Flashing)
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP65
Weight	2.5KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Wire Connection mode	Prewired
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built in photocell NO & NC, dry contact relay GPS Synchronization
