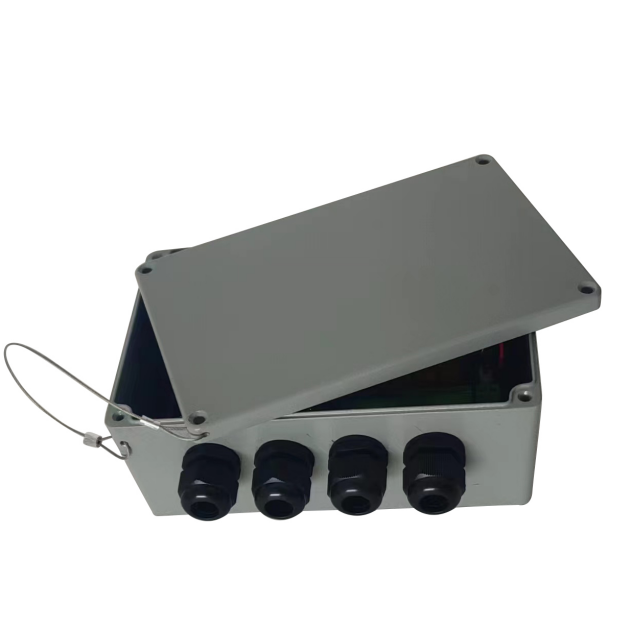

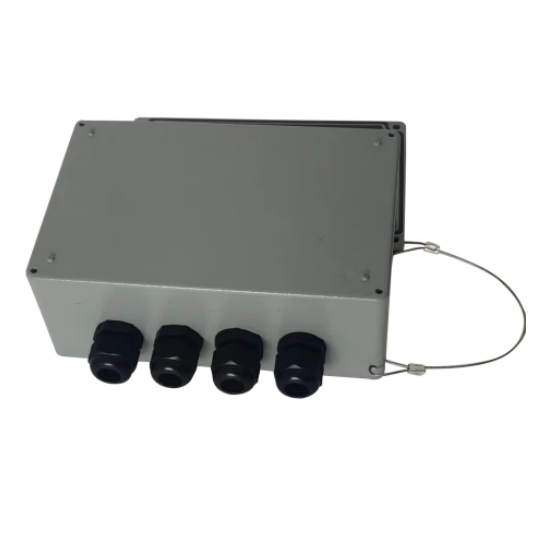

XBL08A Obstruction Light Monitoring Controller
Short Description:
Input&output voltage: 48VDC
Number of Light output: 2*contact relay for lights, power and photocell
Photocell sensitivity: 70~100Lux
Photocell bypass: Auto/Manual adjustable
Alarm type: NO&NC,Dry contact alarm
Materials: Aluminum alloy
IP protection: IP65
Item: XBL08A
POWER SUPPLY - Input voltage: 48V DC
Downloads
- SKU
XBL08A- Category
- Controller & Monitoring
- Item: XBL08A
- POWER SUPPLY - Input voltage: 48V DC
- Max.Load/Output: 1A
- Flash Rate: Steady/Flashing(20FPM), adjustable
- Photocell sensitivity: 70-100 Lux
- Photocell bypass: Auto/Manual adjustable
- Alarm type: NO & NC, dry contact relay
- Numbers of Alarm Output: 2*contact relay for lights, power and photocell
| Item | XBL08A |
|---|---|
| POWER SUPPLY - Input voltage | 48V DC |
| Max.Load/Output | 1A |
| Flash Rate | Steady/Flashing(20FPM), adjustable |
| Photocell sensitivity | 70-100 Lux |
| Photocell bypass | Auto/Manual adjustable |
| Alarm type | NO & NC, dry contact relay |
| Numbers of Alarm Output | 2*contact relay for lights, power and photocell |
| MECHANICAL STRUCTURE - Enclosure Type | Outdoor |
| Enclosure Material | Aluminum alloy |
| Protection | IP65 |
| Net Weight | 1.2kg |
| Dimension (H*W*Depth) | 188mm*120mm*78mm |
| Operation Temperature | -30˚C ~ +70˚C |
| Operation Humidity | 0-95% RH non-condensing |
| Mounting | Wall mounting or U-bolt mounting |
Typically specified for Controller & Monitoring projects.
Common use cases include aircraft warning lights, aviation light fitting, aviation light for tower, aviation lights, aviation warning lights, controller & monitoring.
