Portable Battery Heliport, Portable Battery Powered

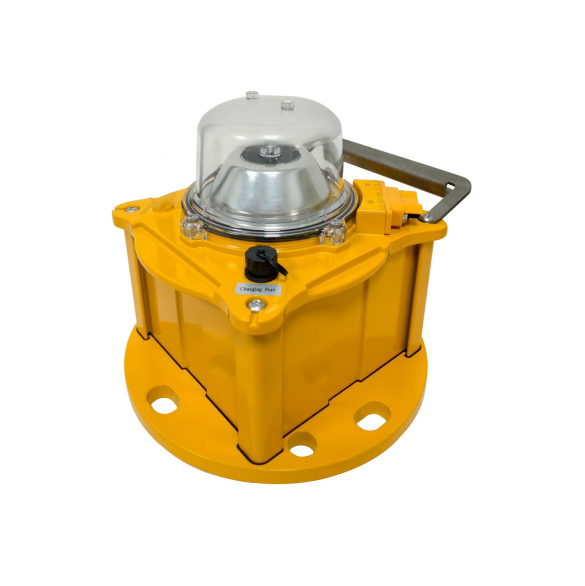

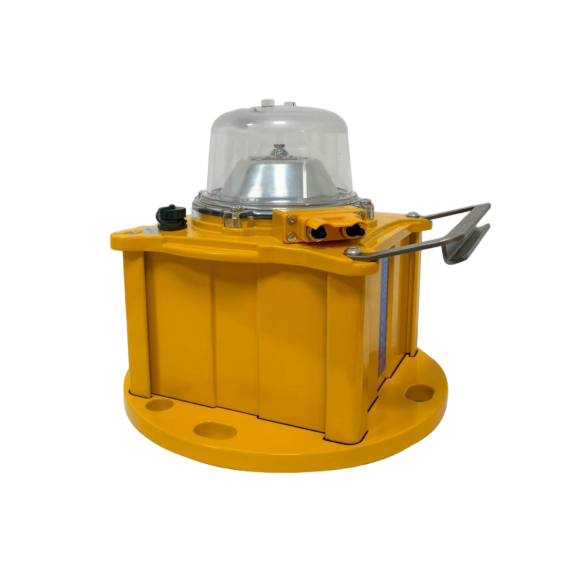

AS60-K Led Portable Rechargeable Heliport Perimeter Light
Short Description:
Altiglo AS60-K LED portable rechargeable perimeter light offers a reliable, efficient, and cost-effective solution for enhancing heliport safety. With its portable and versatile design, durable construction, and exceptional visibility, it is the ideal choice for heliports in a wide range of applications. Trust our LED portable rechargeable perimeter light to provide the safety and visibility needed for heliport operations, day or night, in any environment.
Power supply: AC220V,50Hz
Rated power: 5W (Steady burning)
LED Life Time:100,000 Hours
Effective Intensity:＞30cd
Materials:Die-casting Aluminum
Item: AS60-K
ELECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
Downloads
- SKU
AS60-K- Category
- Portable Battery Heliport, Portable Battery Powered
- Item: AS60-K
- ELECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Green
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Steady burning
- POWER SUPPLY - Battery parameters: 3.7V13AH
| Item | AS60-K |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >30Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Green |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Battery parameters | 3.7V13AH |
| Power consumption | 5W (Steady burning) |
| Charging power supply | AC220V, 50Hz |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Dimensions | Φ 234 * 164 mm |
| Bolt mounting dimensions | Φ 200 *M 14 ( 4 mounting holes) |
| IP Ingress | IP66 |
| Weight | 2. 6 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
Typically specified for Portable Battery Heliport, Portable Battery Powered projects.
Common use cases include battery powered lighting, elevated heliport perimeter light, helipad light, helipad lighting suppliers, helipad lighting systems, helipad perimeter light.
