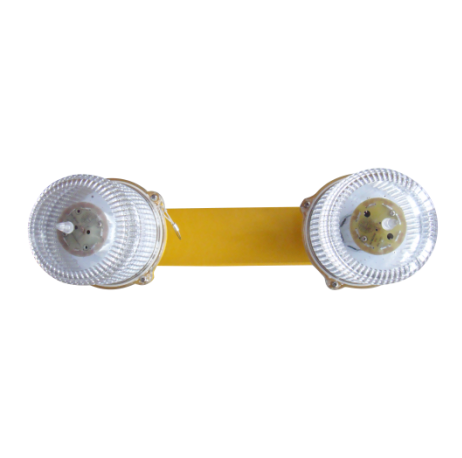

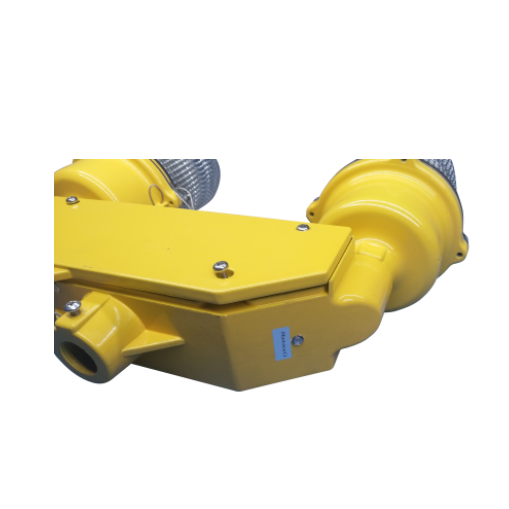

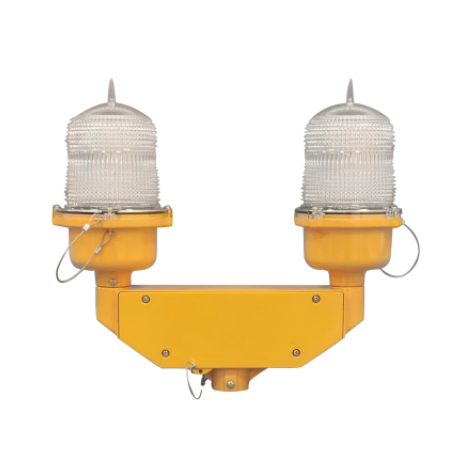

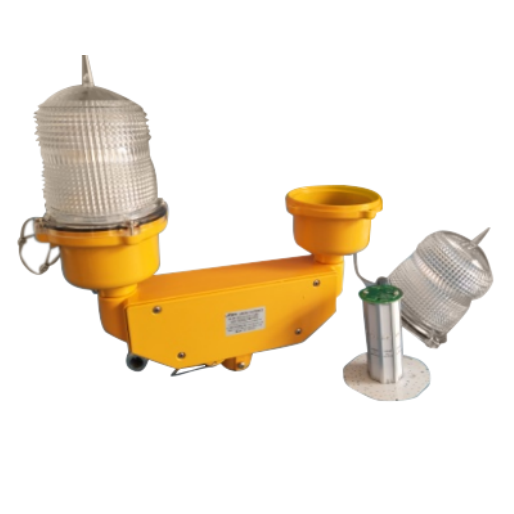

WL78D L-810 Low Intensity Dual Obstruction Light (Type B)
Short Description:
Product name:Low Intensity LED Steady Type or Flashing Type(Type B)
Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Effective Intensity:>32.5 Candela
LED Lifespan:100,000 Hours
Materials:Lens-PC; Body- Aluminum
Item - WL78DSS: WL78DST
ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5 Candela
Downloads
- SKU
WL78D-L-290-LOW-INTENSITY-DUAL-OBSTRUCTION-LIGHT-TYPE-B- Category
- Low Intensity Series, Type B Series
- Item - WL78DSS: WL78DST
- ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5 Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Red, yellow, white, green or blue
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing
- Operation mode - Service+Service: Service+Standby
| Item - WL78DSS | WL78DST |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >32.5 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red, yellow, white, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Operation mode - Service+Service | Service+Standby |
| Flash Pattern | Flashing:20/30/40/60FPM;Default: 40FPM;Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; |
| Power consumption | 10W (Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP65 |
| Weight | 3KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Threaded 3/4” bottom entry |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO dry contact relay |
Typically specified for Low Intensity Series, Type B Series projects.
Common use cases include low intensity series, obstruction lighting, products, type b series.
