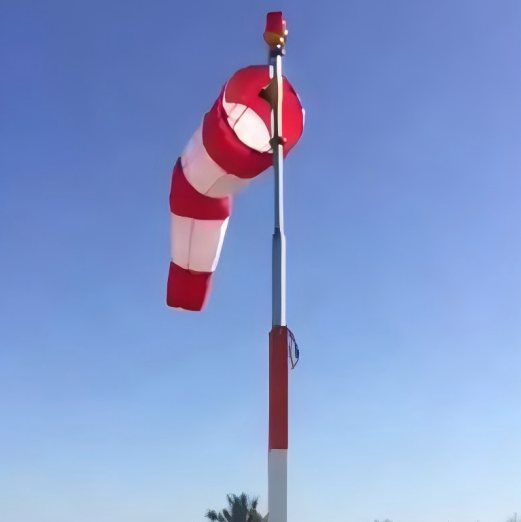

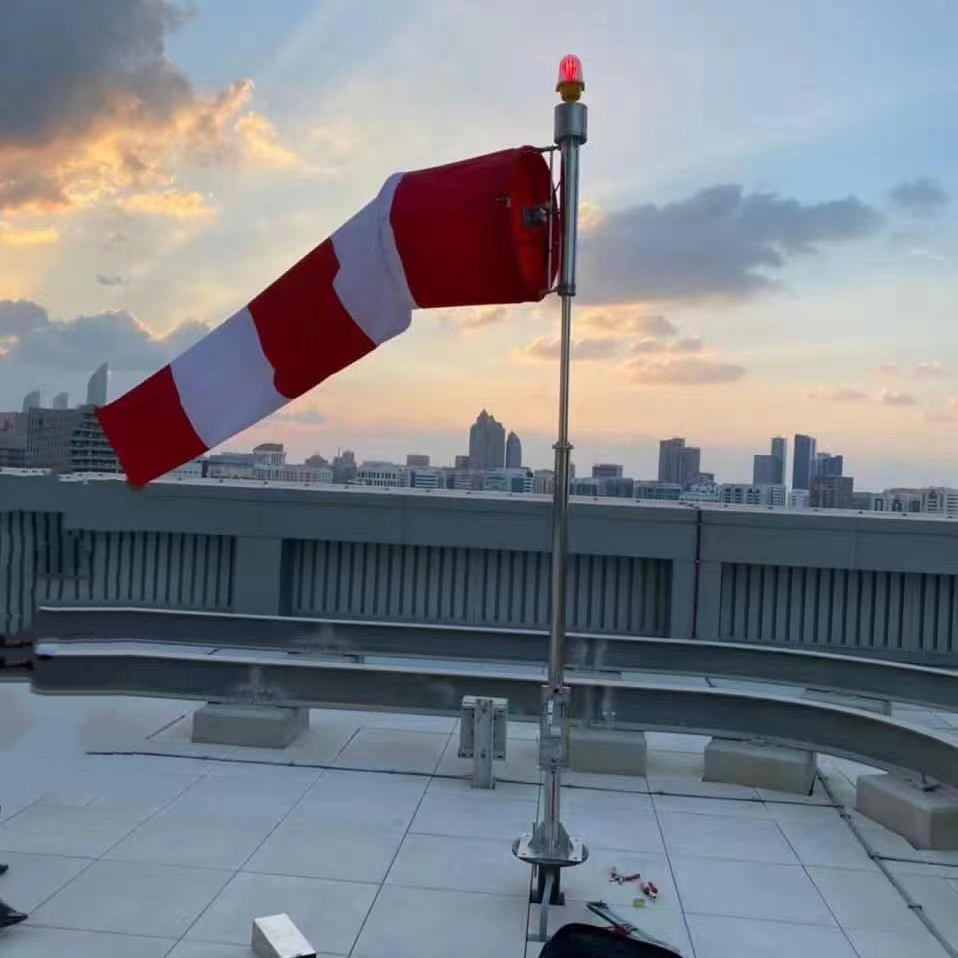

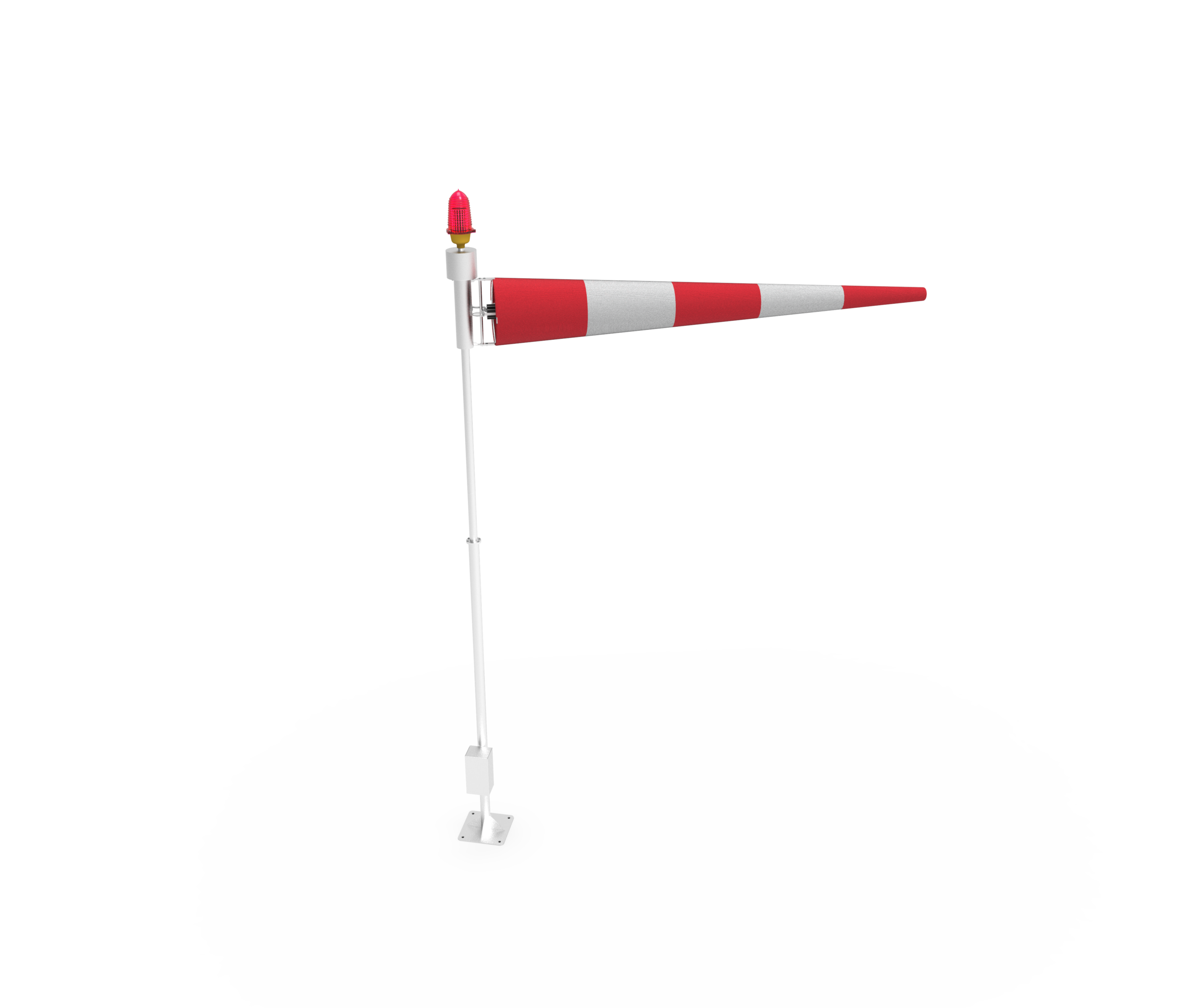

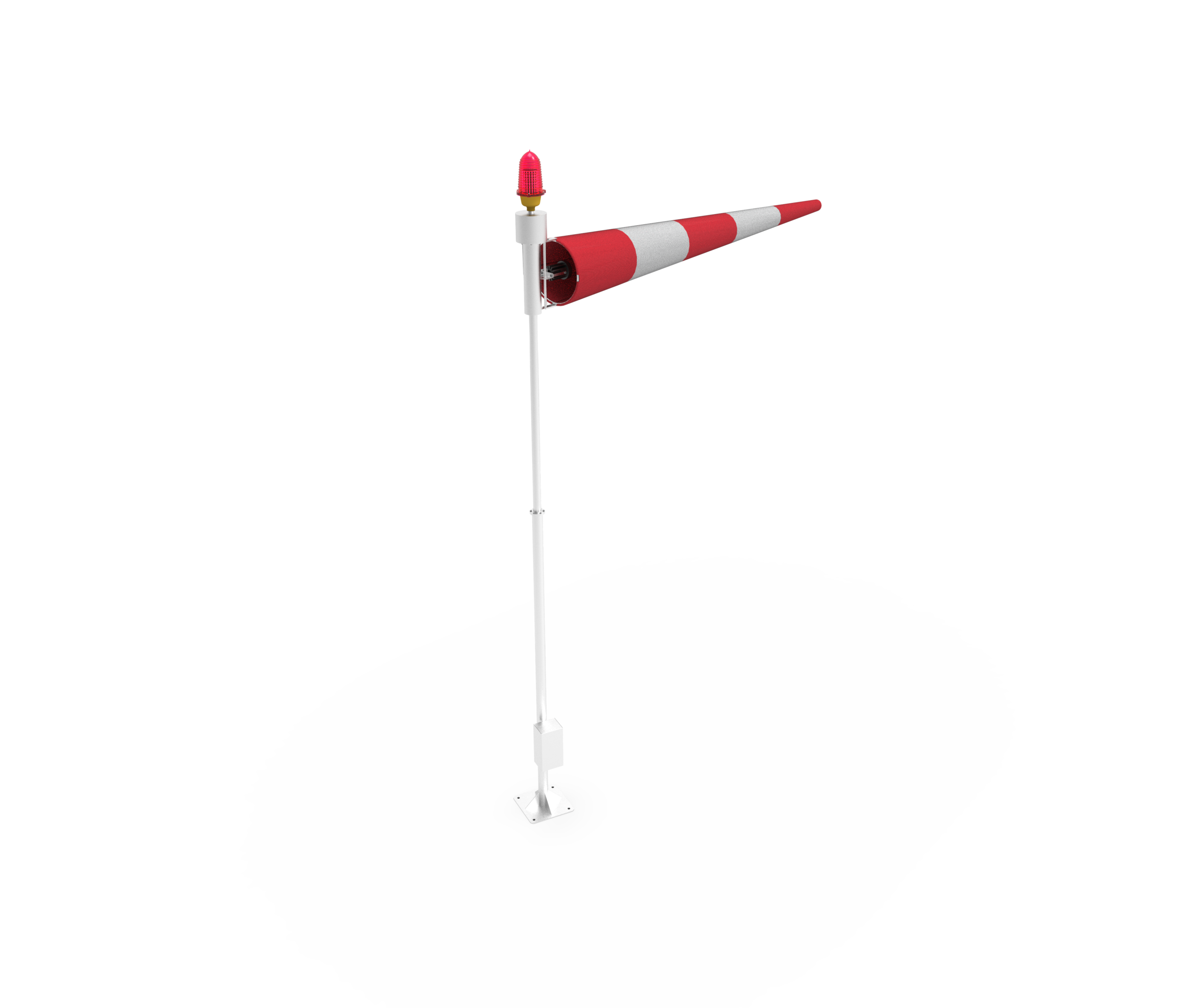

AS980 Internally Illuminated Wind Cone
Short Description:
Product name: L806 Internally Illuminated Wind Cone
Input voltage:220VAC (Option voltage,eg:AC120V,DC48V)
Power Consumption:20W
Working mode: Steady Burning
Light source life:100,000h
Mast Materials:Stainless Steel (SS304)
Windsock color:Red & White striped or Orange
Light Color:Red or White
IP rate:IP65
Item: AS980
Application - Application: Helipad
Downloads
- SKU
AS980- Category
- Wind Cone
- Item: AS980
- Application - Application: Helipad
- Suitable For: Safe Area
- Zone: Safe Area
- ELECTRICAL CHARACTERISTIC - Internal light source: LED, steady burning, colour white.
- Obstruction Light Source: LED, steady burning, colour Red
- Obstruction light: Low Intensity 32 cd
- Light Color: Red/White
| Item | AS980 |
|---|---|
| Application - Application | Helipad |
| Suitable For | Safe Area |
| Zone | Safe Area |
| ELECTRICAL CHARACTERISTIC - Internal light source | LED, steady burning, colour white. |
| Obstruction Light Source | LED, steady burning, colour Red |
| Obstruction light | Low Intensity 32 cd |
| Light Color | Red/White |
| Light Source | L-810 LED Obstruction Light on top |
| Life expectancy | 100.000+ hours |
| POWER SUPPLY - Input Voltage | AC220V, 50/60Hz (Option voltage, eg:AC120V, DC48V) |
| Consumption | 20 Watt |
| MECHANICAL STRUCTURE - Tested Ambient Temp | -20°C to + 60°C |
| Cable | H07RN-F 3x1mm² |
| Cable glands included | 1 x M20x1.5 |
| Assembly | Internally lighted + obstruction light |
| Mounting | Tiltable foot |
| Mast material | Stainless Steel (SS304) |
| Windsock Frame | SS304, Rotating Frame and Hoop |
| Altitude | ≤4500m |
| Ingress Protection | IP65 |
| Mast length | Up to 7m |
| Chassis Installation Size | 350mm×M20×6PCS |
| Windsock material | PVC |
| Windsock colour | Red/White striped or Orange |
| Ambient temp | -40°C to + 85°C |
| Windspeed | 260 km/hr |
| OTHERS - Incompliance with | ICAO annex 14, CAP437, FAA L-807 |
Typically specified for Wind Cone projects.
Common use cases include elevated type, heliport lighting, products, wind cone.
