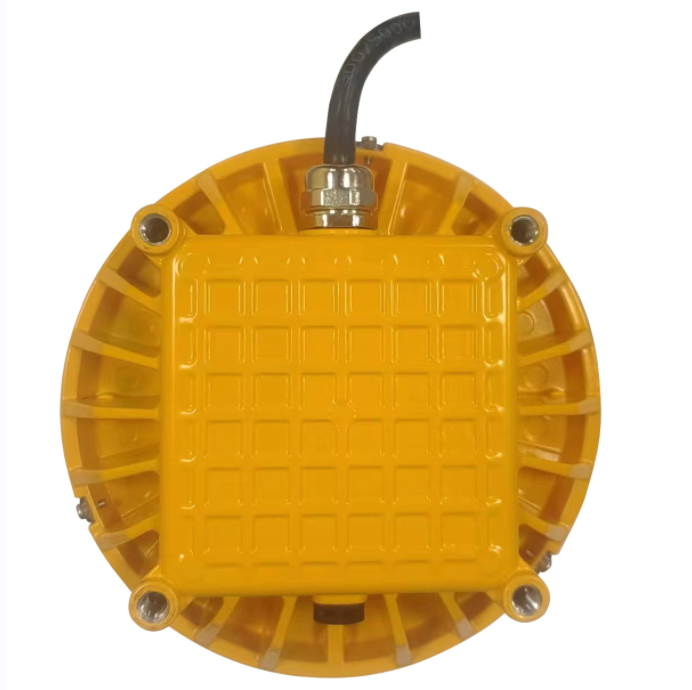

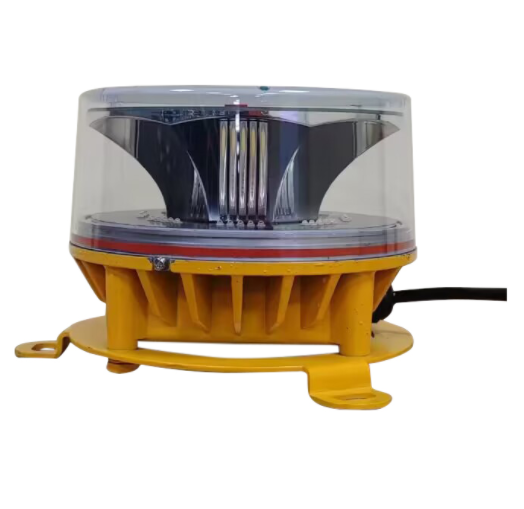

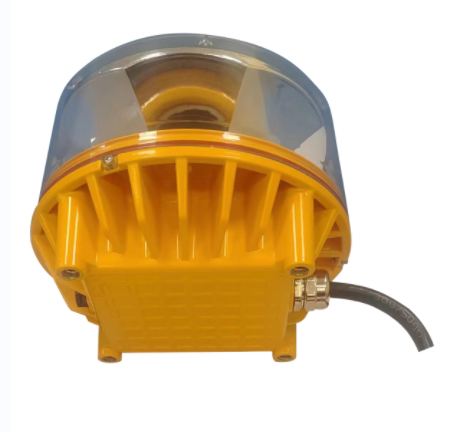

WL700S Low Intensity Single Obstruction Light (Type E)
Short Description:
Product name:Low Intensity LED Steady Type or Flashing Type(Optional)
Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Effective Intensity:>300 Candela
LED Lifespan:100,000 Hours
Materials:Lens-PC; Body- Aluminum
Item: DL 300S
E LECTRICAL CHARACTERISTIC - Effective Intensity: >300 Candela
Downloads
- SKU
WL- Category
- Low Intensity Series, Type E Series
- Item: DL 300S
- E LECTRICAL CHARACTERISTIC - Effective Intensity: >300 Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Red, yellow, white, green or blue
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing
- Flash Pattern: Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
| Item | DL 300S |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | >300 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red, yellow, white, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; |
| Power consumption | <10W(flashing); 20W(Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP67 |
| Weight | 1.2KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | With 1 m lead wire |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization function |
Typically specified for Low Intensity Series, Type E Series projects.
Common use cases include aircraft warning lights, aviation light fitting, aviation light for tower, aviation lights, aviation warning lights, led aviation light.
