Medium Intensity Series Solar Powered Series, Solar-Powered Series

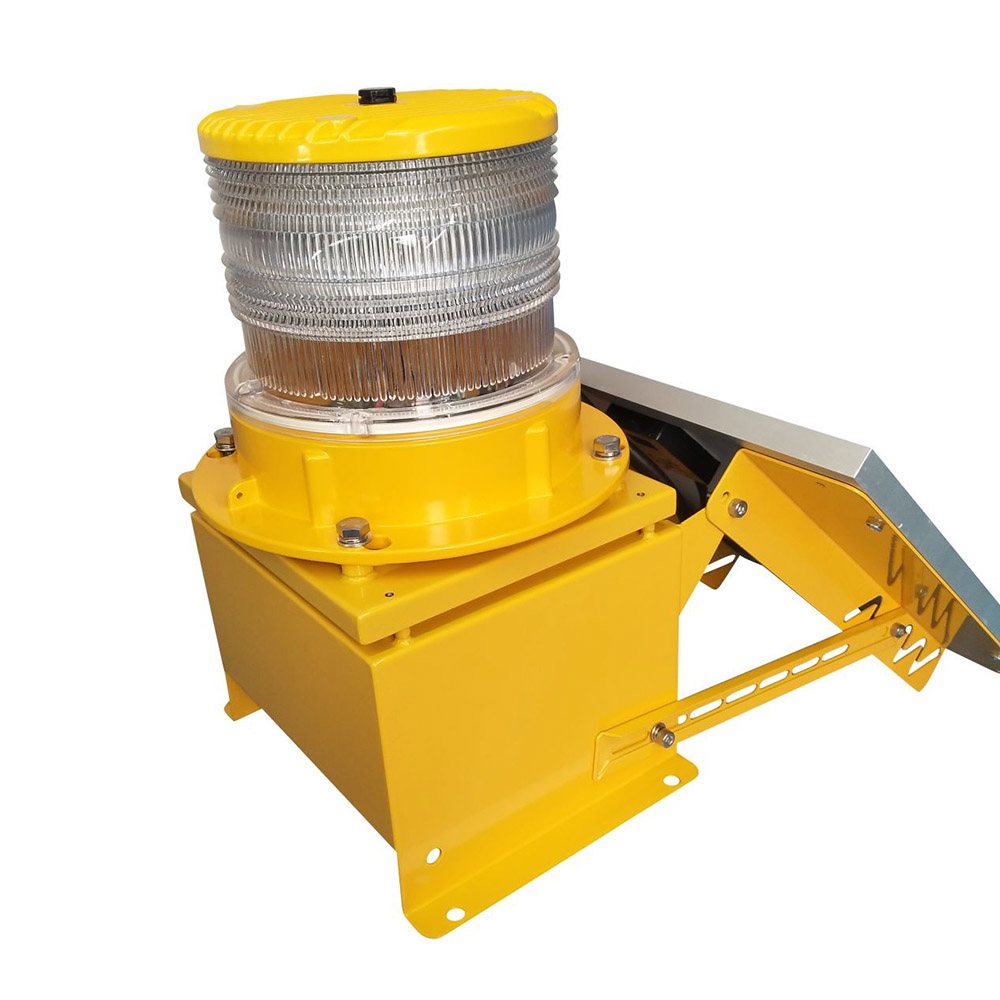

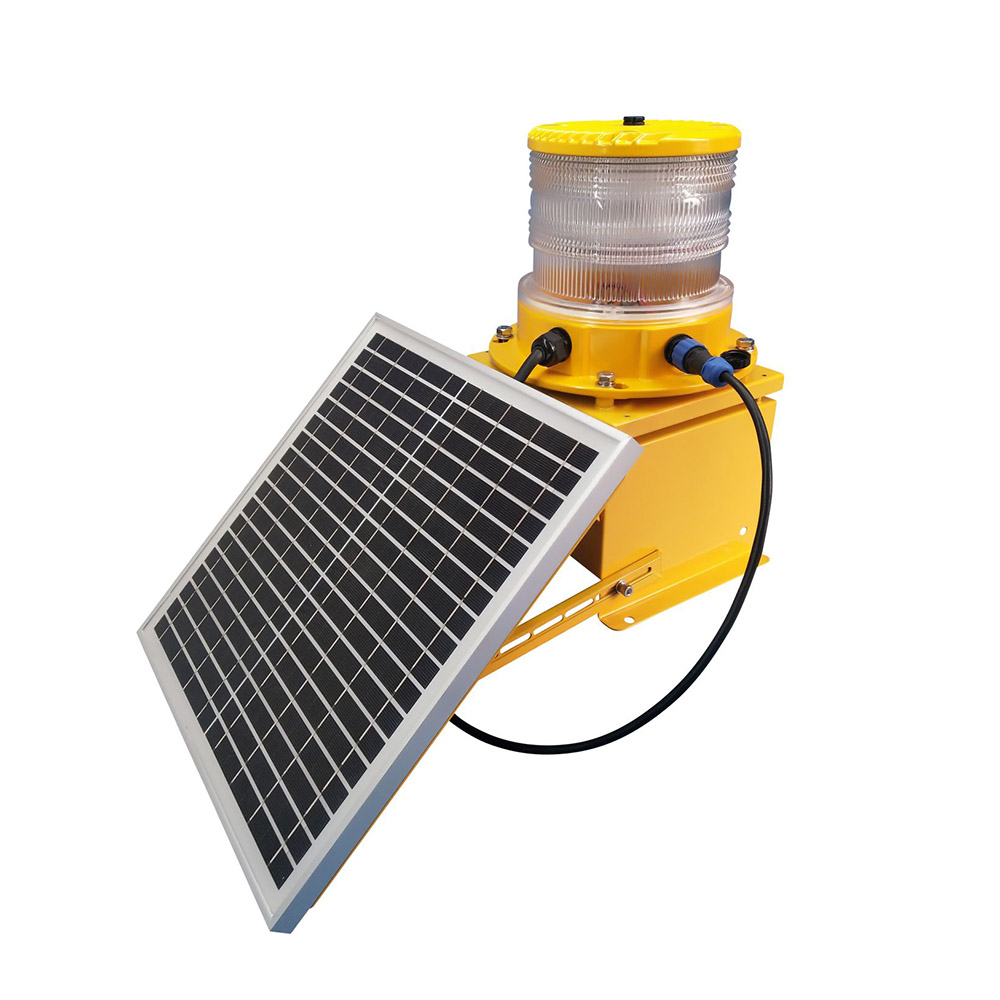

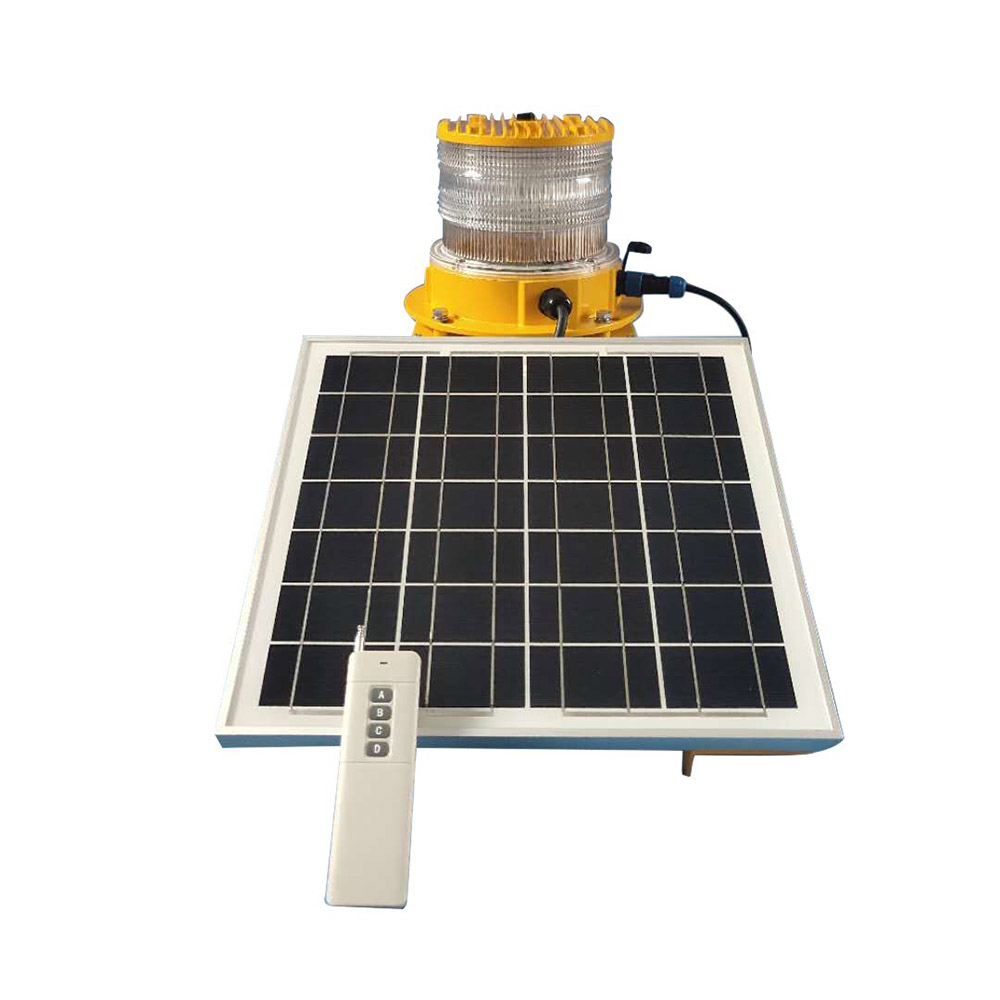

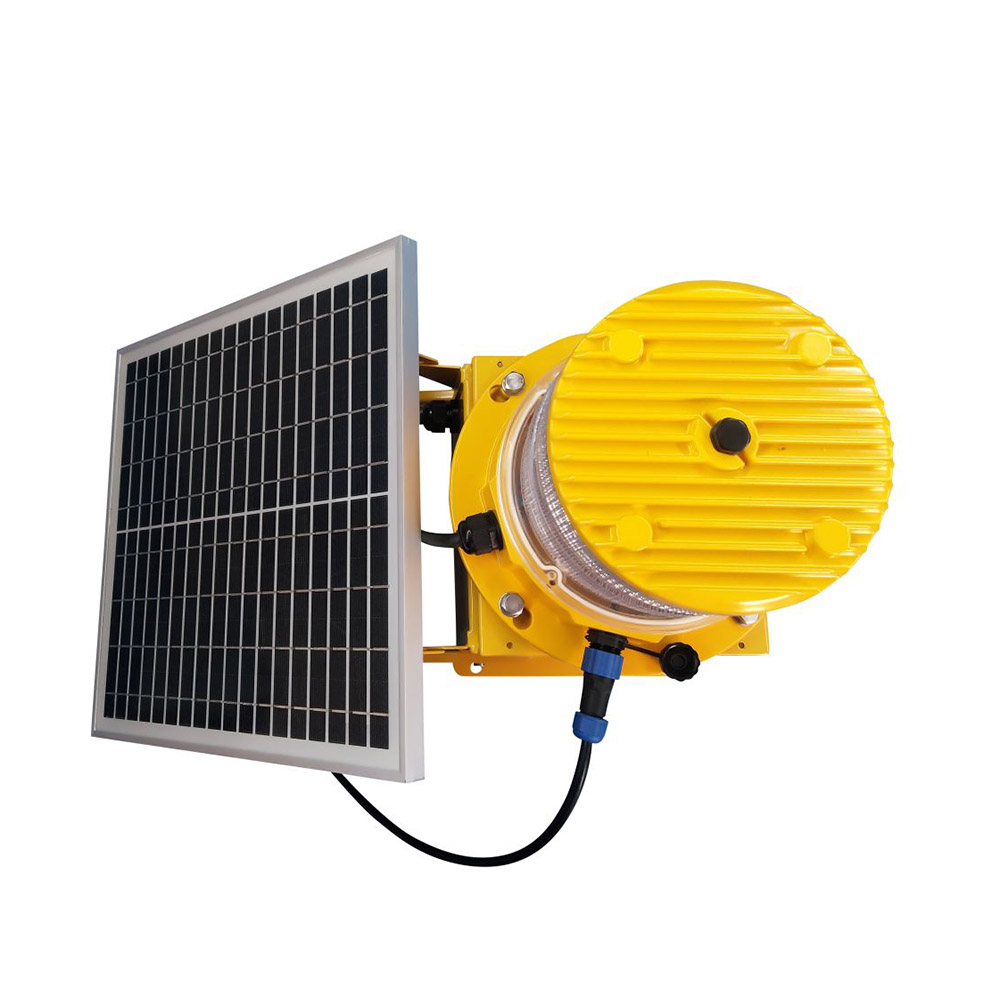

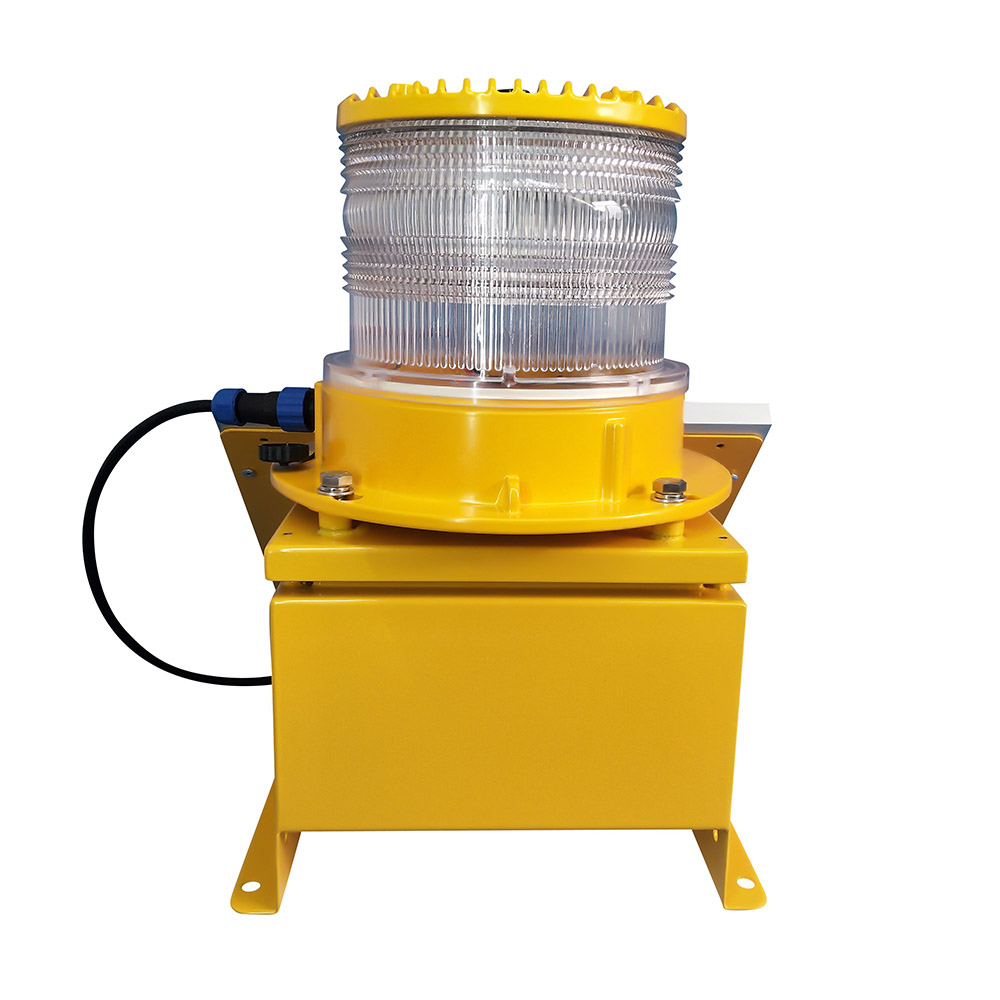

GY8KS-R L-864 LED Single Medium intensity Solar Powered Obstruction Light(Type B or Type C)
Short Description:
Product name: L-864 Medium Intensity Solar LED Obstruction Light with Remote Controller(Type B or C)
Solar panel: High efficient mono-crystalline silicon 18V/20 Watts
Battery capacity: 12V/12AH rechargeable Lead acid battery
Intensity: >2000cd
Autonomy: 8 days (in cloudy & rainy days)
Suitable areas: PSH=4
Intensity: 2000 Candela
LED Color Available: Red, white, green, blue or yellow
Downloads
- SKU
GY8KS-R-L-246-LED-SINGLE-MEDIUM-INTENSITY-SOLAR-POWERED-OBSTRUCTION-LIGHTTYPE-B-OR-TYPE-C- Category
- Medium Intensity Series Solar Powered Series, Solar-Powered Series
- Intensity: 2000 Candela
- LED Color Available: Red, white, green, blue or yellow
- Vertical Divergence: Peak intensity at 3 Degree
- Horizontal Out-put: 360 Degree
- Illumination: Ultra-bright LEDs
- LED Lifespan: 100, 000 Hours
- Autonomy: 8 days (in cloudy & rainy days)
- On & Off Level: 70/100 Lux
| Intensity | 2000 Candela |
|---|---|
| LED Color Available | Red, white, green, blue or yellow |
| Vertical Divergence | Peak intensity at 3 Degree |
| Horizontal Out-put | 360 Degree |
| Illumination | Ultra-bright LEDs |
| LED Lifespan | 100, 000 Hours |
| Autonomy | 8 days (in cloudy & rainy days) |
| On & Off Level | 70/100 Lux |
| Flash Pattern | 40 times/min(other flashing pattern also available) |
| Power Source | 18V/20W solar module |
| Battery Type | Lead acid type. 12V/12AH(VRLA) |
| Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Water-proof | IP65 |
| Weight | 11KG |
| Temperature Range | -30℃~+70℃ |
| Light Dimensions | 200mm H, 178mm Diameter |
| Solar panel Dimension | 420mm*600mm(bracket not included) |
| Suitable areas | PSH=4 |
| Warranty | 2 years |
Typically specified for Medium Intensity Series Solar Powered Series, Solar-Powered Series projects.
Common use cases include aviation lamp, aviation light for tower crane, building aviation light, communication tower lighting, medium intensity series, obstruction lighting.
