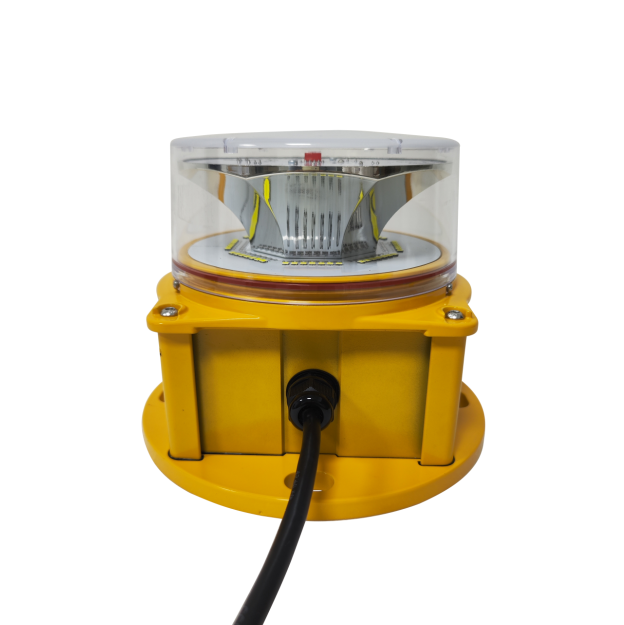

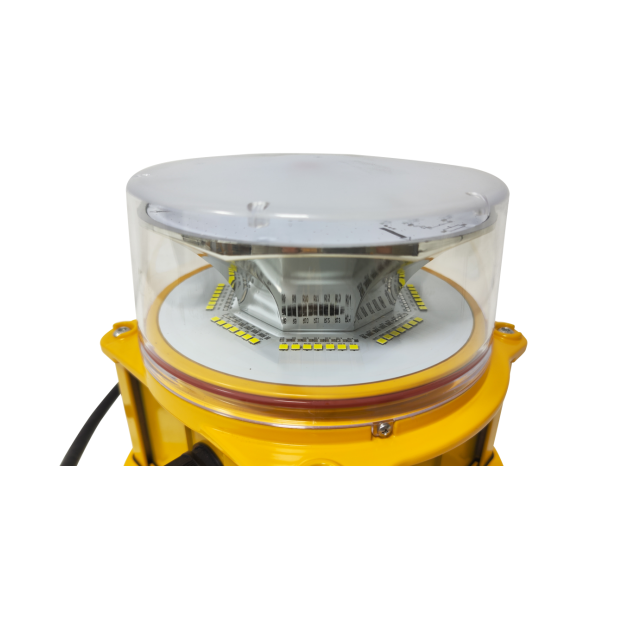

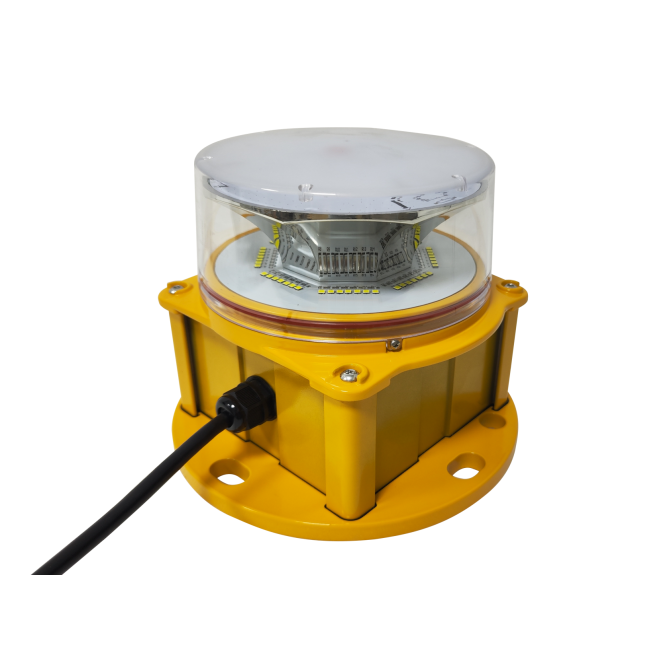

JT8H L-856 High Intensity Obstruction Light(Type A)

Short Description:

Product Name: High Intensity LED Obstruction Light (Type A)

Input voltage: 85-265VAC, 50/60 Hz;12VDC; 24VDC or 30-60VDC;

Effective Intensity: ( Night) 2000cd (±25%); (dusk)20,000cd (±25%); (in the daytime)200,000cd (±25%)

LED Lifespan: 100,000 Hours

Materials: Lens-PC; Body- Aluminum

Item: JT8 H

ELECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 200, 000cd+25%, D usk : white 20, 000cd+25%, Night: white 2, 000cd+25%

Downloads

Send Enquiry

Item	JT8 H
ELECTRICAL CHARACTERISTIC - Effective Intensity	Day: white 200, 000cd+25%, D usk : white 20, 000cd+25%, Night: white 2, 000cd+25%
Vertical Divergence	3 Degree
Horizontal out-put	360 Degree
LED Color	White
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM;Steady burning
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Alarm type	NO & NC, dry contact relay
POWER SUPPLY - Input voltage	85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Instant Power consumption	800 W
MECHANICAL STRUCTURE - Average Power consumption	80W
Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP66
Weight	8KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Lightning protection leve l	IEC61000-4-5 L-N ± 6KV/3KV IEC61000-4-5 LN-NE ± 6KV/3KV
ESD （ Electro-Static discharge ）	IEC61000-4-2 Air Discharge 15KV Contact discharge 8KV
Wire Connection mode	Prewired
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization function
