Low Intensity Series, Type A Series
Short Description:

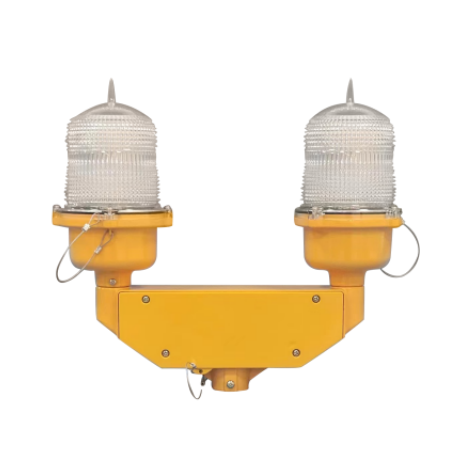

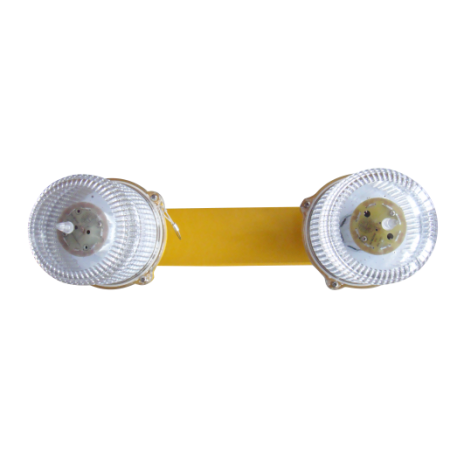

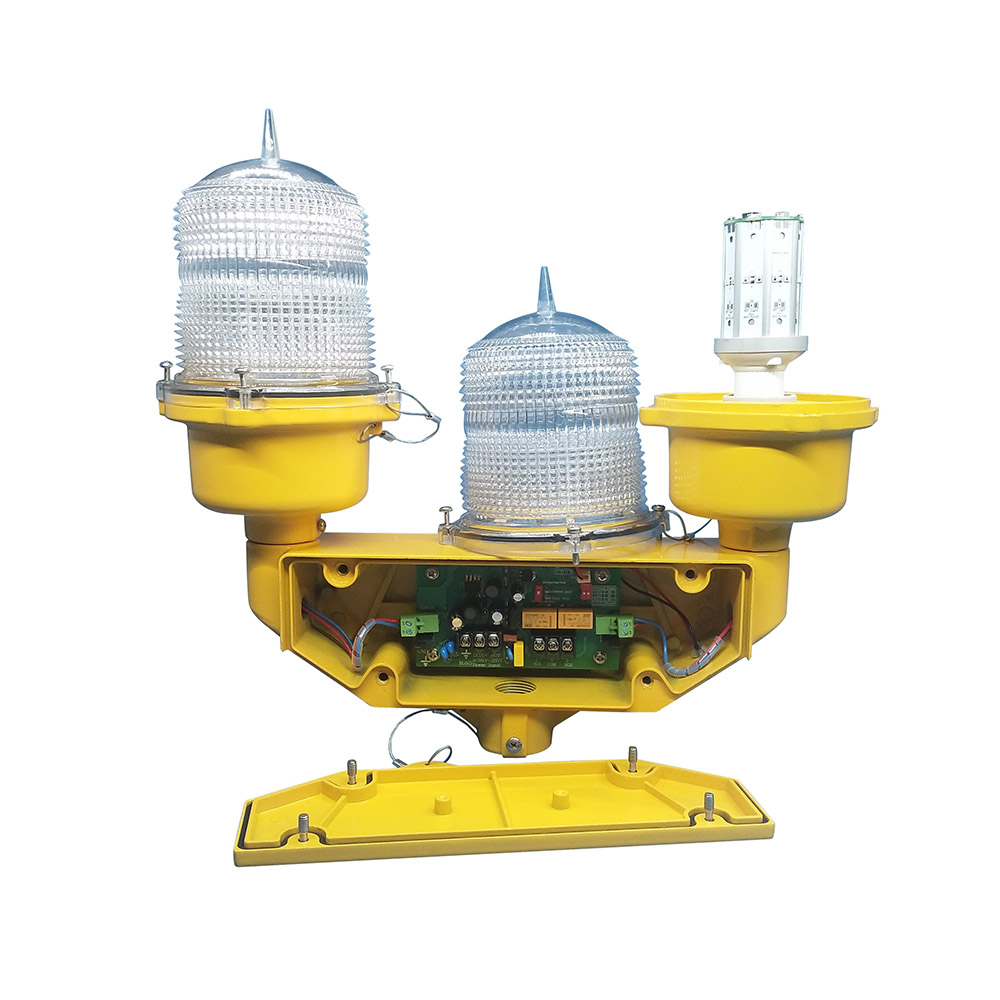

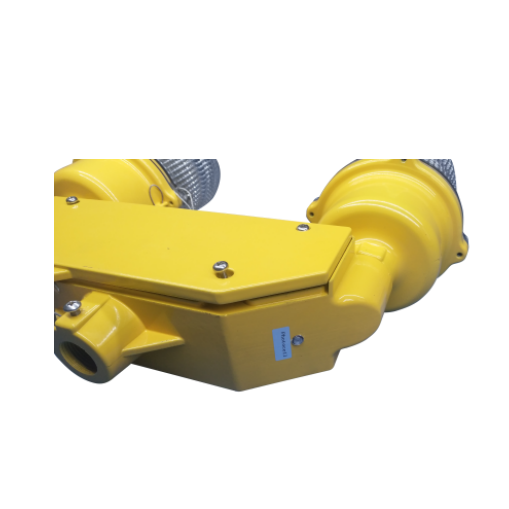

When it comes to safety and visibility, our WL90DE LED dual low intensity obstruction light is unparalleled. It provides a highly visible warning light that alerts aircraft to the presence of the structure, helping to prevent potential collisions. Its reliability and durability make it the perfect choice for any high rise structure, offering peace of mind for building owners and ensuring the safety of all who may come into contact with the structure.Invest in the safety and visibility of your high rise structure with our LED dual low intensity obstruction light.
Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Effective Intensity:>32.5 Candela
LED Lifespan:100,000 Hours
Materials:Lens-PC; Body- Aluminum
Item - WL90DESS: WL90DEST
ELECTRICAL CHARACTERISTIC - Effective Intensity: >10 Candela
Downloads
WL90DE-E83-TYPE-LOW-INTENSITY-DUAL-OBSTRUCTION-LIGHT-TYPE-A| Item - WL90DESS | WL90DEST |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >10 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red, yellow, white, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Operation mode - Service+Service | Service+Standby |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz;12VDC; 24VDC; 30-60VDC; |
| Power consumption | 6W(Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP65 |
| Weight | 3KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Threaded 3/4” bottom entry |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO dry contact relay |
Typically specified for Low Intensity Series, Type A Series projects.
Common use cases include low intensity series, obstruction lighting, products, type a series.
