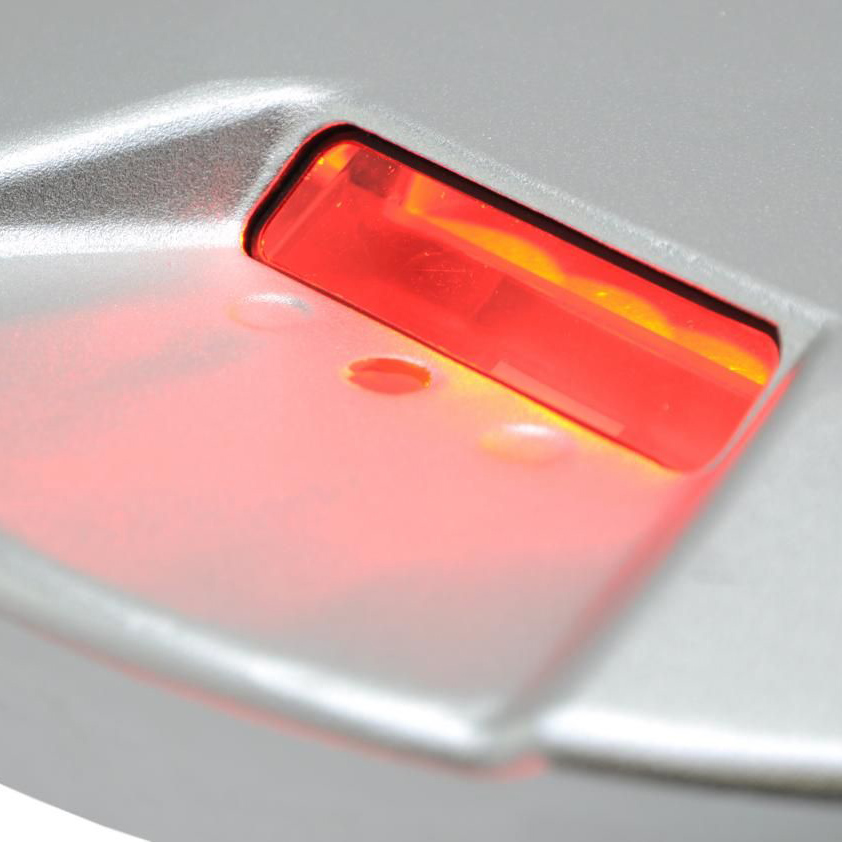

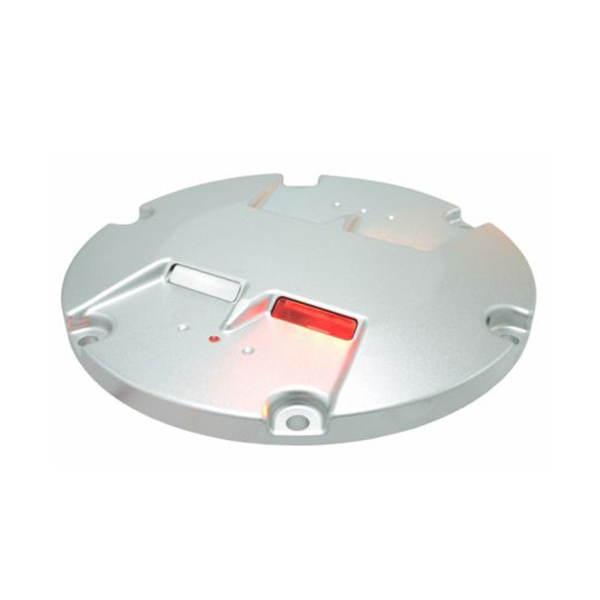

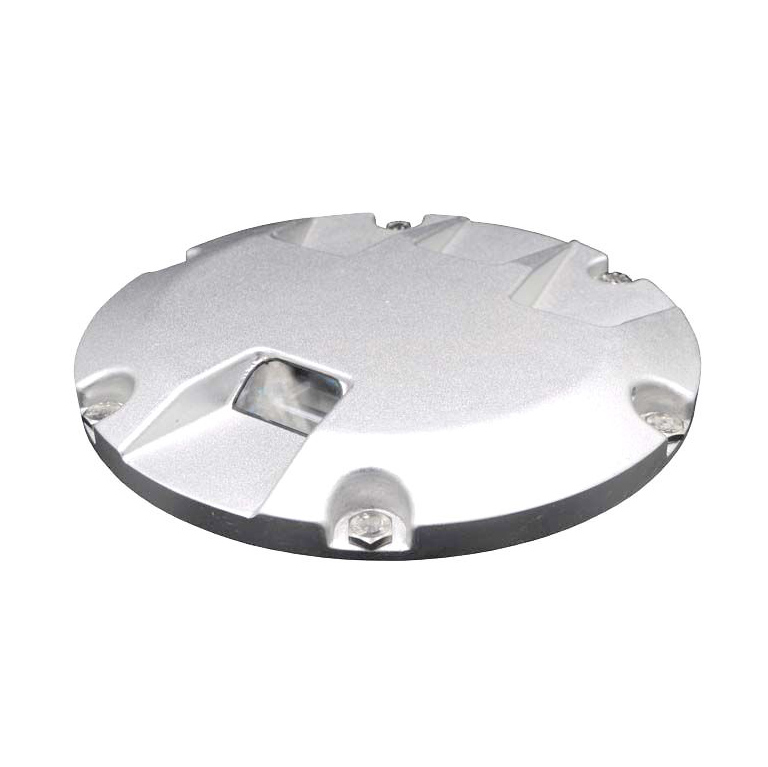

OS-END-98-R(L) Led Inset Runway End Light

Short Description:

Altiglo QCL830 cutting-edge LED Inset Runway End Light–the perfect solution for

illuminating runway ends for safe and efficient aircraft operations.This

state-of-the-art lighting system is designed to provide enhanced visibility and

guidance for pilots during takeoff, landing, and taxiing.

Power supply:2.8A~6.6A

Power consumption:14W

LED Life Time:100,000 Hours

Minimum Average Intensity:2500cd

Color: Red

IP grade: IP68

Item: OS-END-98-R(L)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

Item	OS-END-98-R(L)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~6.6A
Power consumption	14W
Power Factor	≥ 0.9
Lamp	LED Lamp
Lamp Life	100, 000Hours
Photometric Property - Light color	Red
Main beam angle	Vertical:0.2°- 4.75°; Horizontal:± 6°
Min intensity	2500cd
Lamp Size	203203150mm(without shallow base) 220220150mm(with shallow base)
Gross Weight	2.4Kg(without shallow base) 6.1kg(with shallow base)
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Angle of Main Light Beam	Average Intensity Actual
Horizontal	Vertical
OS-END-98-R(L) - ICAO Figure A2-8/FAA L-850D	3034
1 - Shallow base	Driver assembly
2 - O Sealing ring	Waterproof connector
3 - Shallow base cover	O Sealing ring
4 - Joggle	Screws
5 - Waterproof connector	Lower cover
