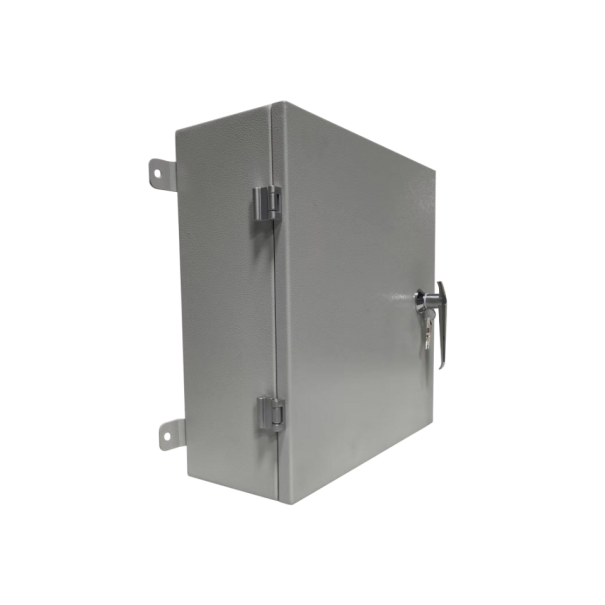

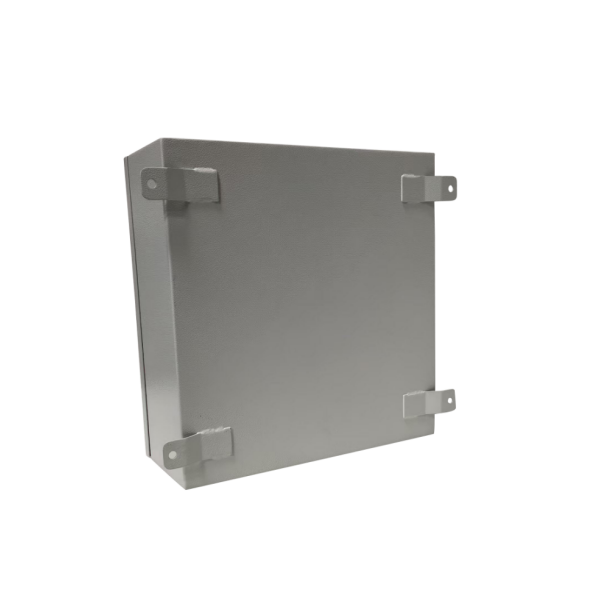

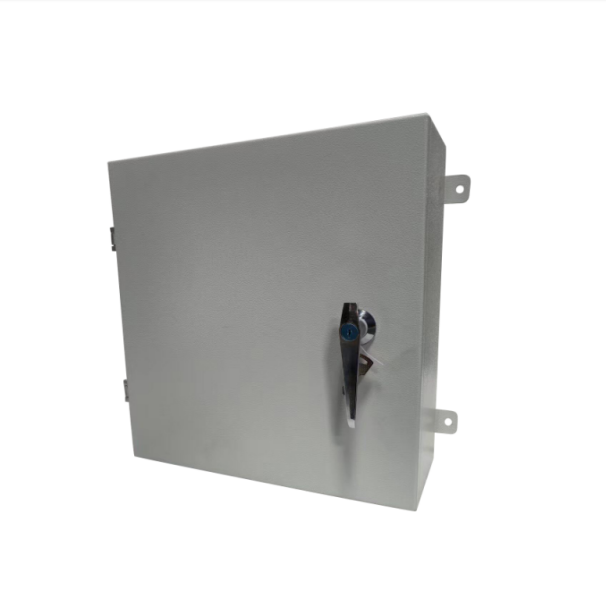

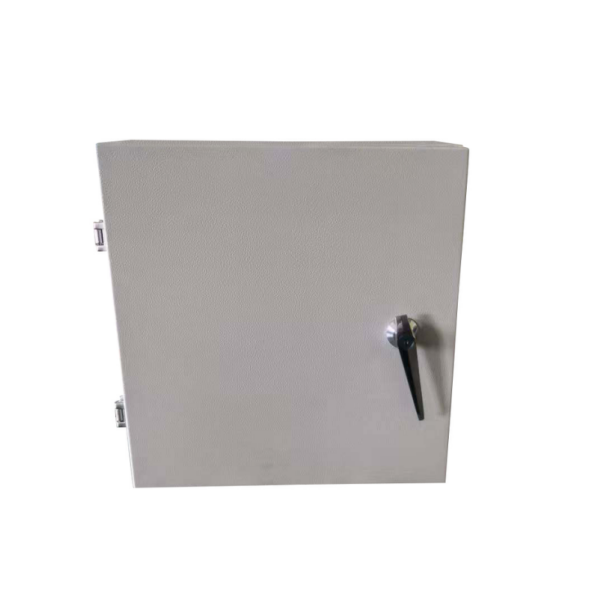

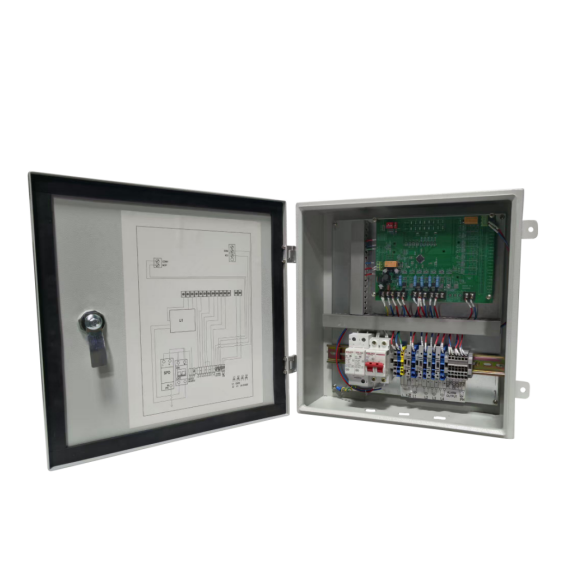

XBL05B Obstruction Light Monitoring Controller
Short Description:
Altiglo XBL05B state-of-the-art obstruction light monitoring control panel is the ultimate solution for comprehensive and efficient monitoring and control of aircraft warning lights. With its advanced features and user-friendly design, it provides a reliable and hassle-free solution for ensuring compliance and safety in any high-rise installation,such as tall buildings, towers.
Input voltage: 85-265VDC
Output voltage: 48VDC
Number of Light output: 5*contact relay for lights and power
Photocell sensitivity: 70~100Lux
Photocell bypass: Auto/Manual adjustable
Alarm type: NO&NC,Dry contact alarm
Materials: Aluminum alloy
IP protection: IP65
Item: XBL05B
POWER SUPPLY - Input voltage: 110-265V AC
Downloads
- SKU
XBL05B- Category
- Controller & Monitoring
- Item: XBL05B
- POWER SUPPLY - Input voltage: 110-265V AC
- Output voltage: 48V DC
- Numbers of Light Output: 5
- Max.Load/Output: 1A
- Flash Rate: Steady/Flashing(20FPM), adjustable
- Photocell sensitivity: 70-100 Lux
- Photocell bypass: Auto/Manual adjustable
| Item | XBL05B |
|---|---|
| POWER SUPPLY - Input voltage | 110-265V AC |
| Output voltage | 48V DC |
| Numbers of Light Output | 5 |
| Max.Load/Output | 1A |
| Flash Rate | Steady/Flashing(20FPM), adjustable |
| Photocell sensitivity | 70-100 Lux |
| Photocell bypass | Auto/Manual adjustable |
| Alarm type | NO & NC, dry contact relay |
| Numbers of Alarm Output | 5*contact relay for lights and power |
| Surge Protection | 20KV |
| MECHANICAL STRUCTURE - Enclosure Type | Outdoor |
| Enclosure Material | Die casting Aluminum |
| Protection | IP65 |
| Net Weight | 4kg |
| Dimension (H*W*Depth) | 360*300*183.7mm |
| Operation Temperature | -30°C~+70°C |
| Operation Humidity | 0-95% RH non-condensing |
| Mounting | Wall mounting or U-bolt mounting |
Typically specified for Controller & Monitoring projects.
Common use cases include aircraft warning light manufacturers, aircraft warning lights, aviation lights, building aviation light, controller & monitoring, obstacle light.
