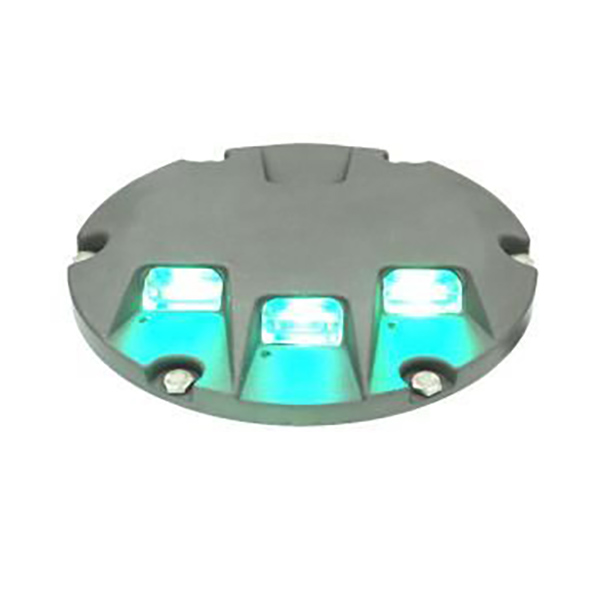

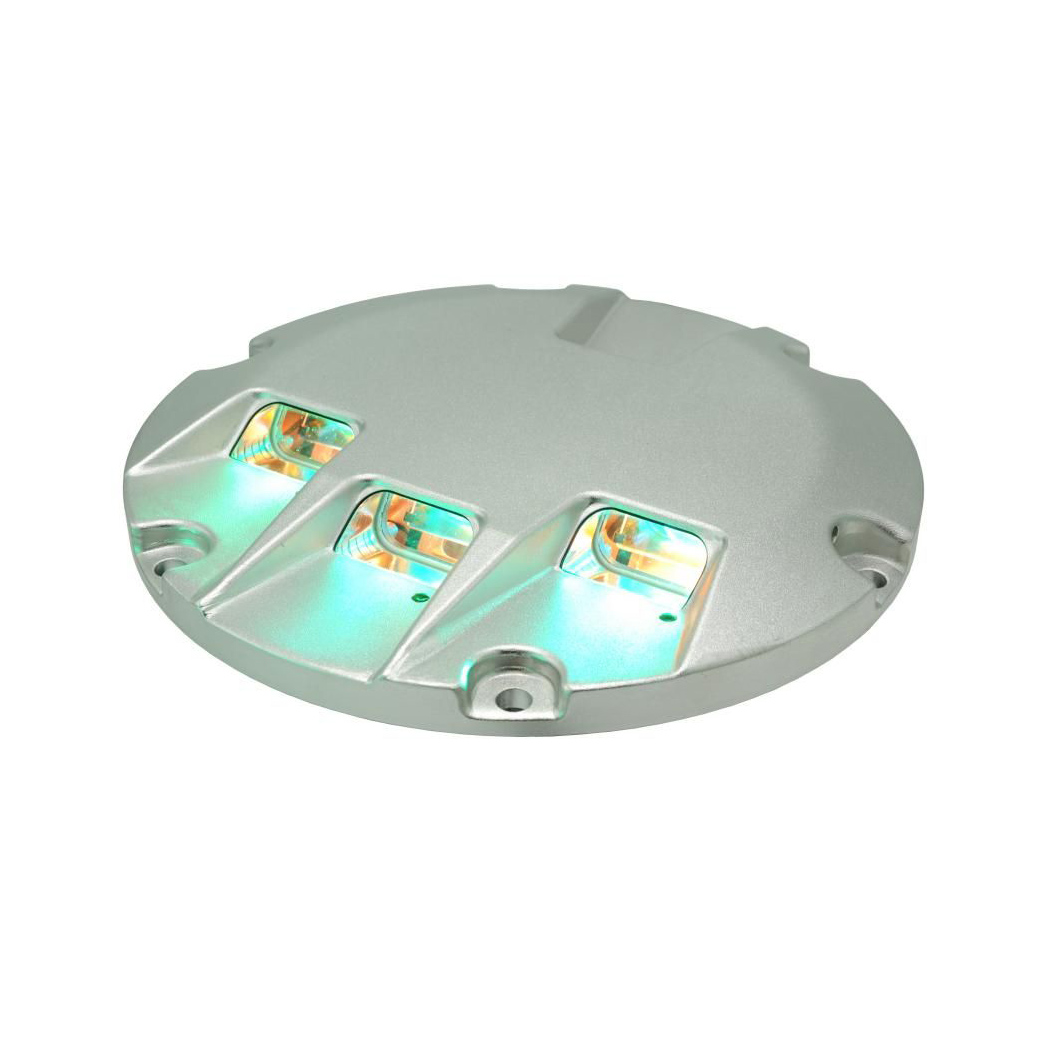

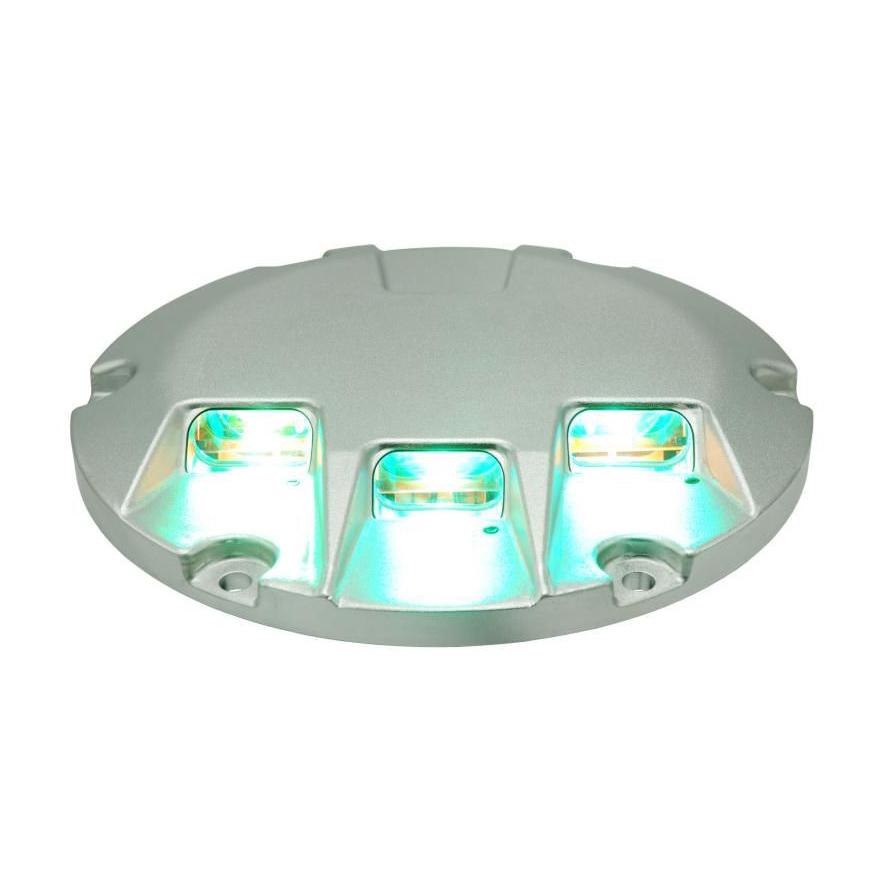

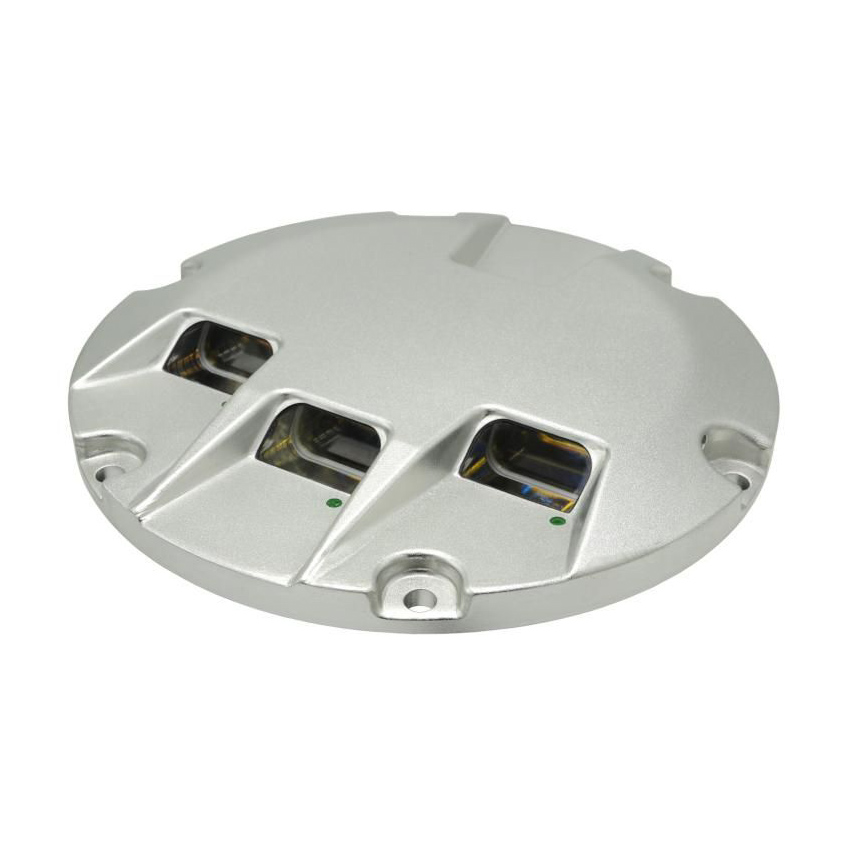

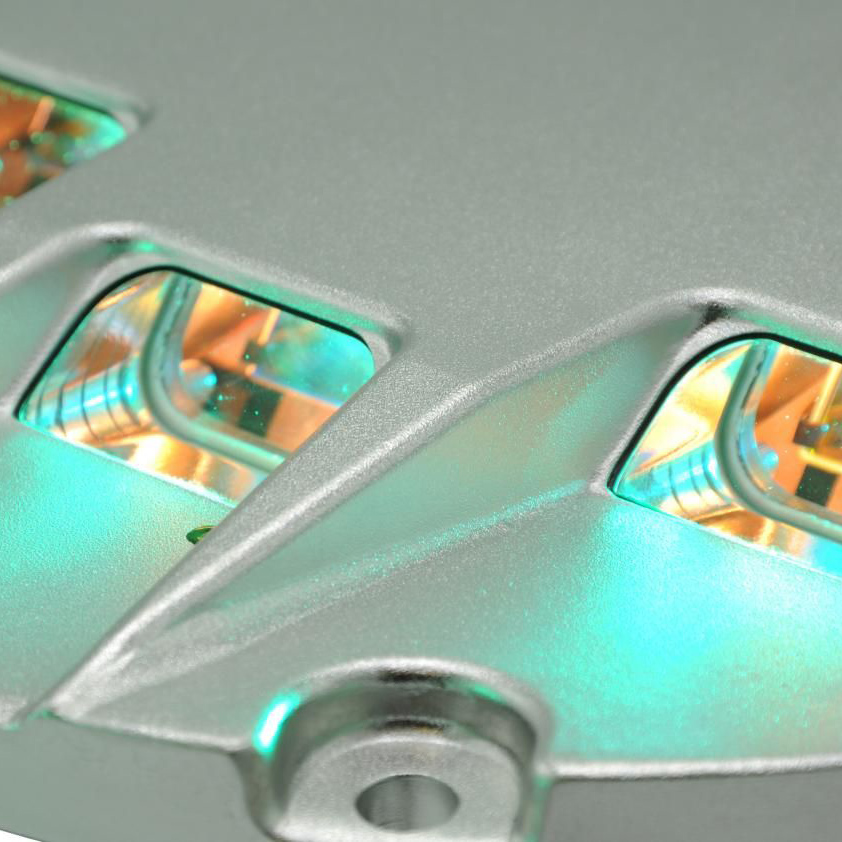

OS-RTW-98-X-G(H) Halogen Inset Runway Threshold Wing-bar Light
Short Description:
Altiglo OS-RTW-98-X-G(H) Halogen Inset runway threshold wing-bar light Halogen Elevated Runway Threshold Wingbar Light Halogen inset runway threshold wing bar light is a top-quality lighting solution that provides exceptional visibility and reliability for runway threshold marking. With its durable construction and high-performance halogen bulbs, this product is a crucial addition to any airport’s lighting infrastructure. Upgrade your runway lighting system with our superior runway threshold wing bar light and ensure the safety of all air traffic operations.
Power supply: 2.8A-6.6A
Rated power: 3X105W
Halogen Life Time:1000 Hours
Minimum Average Intensity:10,000cd
Color: Green
IP grade: IP68
Item: OS-RTW-98-X-G(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-RTW-98-X-G(H)- Category
- Inset Type, Runway Lighting Series
- Item: OS-RTW-98-X-G(H)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- Precipitation: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: 3X105W
| Item | OS-RTW-98-X-G(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | 3X105W |
| Lamp | Halogen Lamp |
| Lamp Life | 1000Hours |
| Photometric Property - Light color | Green |
| Main beam angle | Vertical:0.5°-10.5°; Horizontal:± 7° |
| Min intensity | 10, 000cd |
| Light Size | 322.5X322.5X162mm |
| Packing Size | 330X330X150mm³ |
| Weight | 7Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Angle of Main Light Beam | Average Intensity Actual |
| OS-RTW-98-X-G(H) - ICAO Figure A2-4 | Vertical |
| ±7̊ toe-in 2 ̊ - 0.5~10.5̊ | 12586 |
| 1 - Shallow base | Lower cover |
| 2 - O-ring | Bulb holder plate |
| 3 - M16 waterproof connector | Light bulb card |
| 4 - Bolt | Color filter |
| 5 - Upper cover | Led Bulb |
Typically specified for Inset Type, Runway Lighting Series projects.
Common use cases include halogen inset runway threshold wing-bar light, inset runway threshold wingbar light, inset threshold and wing bar light, inset type, products, reliance - runway threshold wingbar inset 12.
