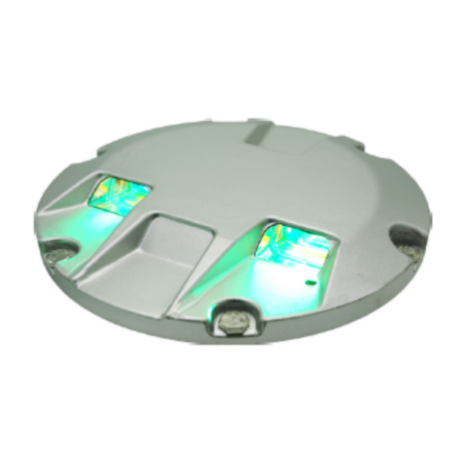

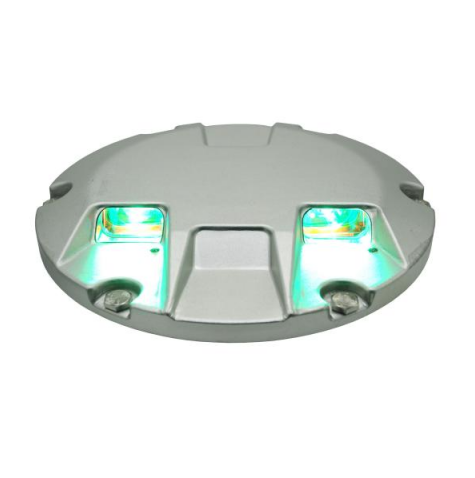

OS-TAE-98-X-GR(H) Halogen Inset Runway Threshold And End Light

Short Description:

Altiglo OS-TAE-98-X-GR(H) Halogen Inset Runway Threshold End Light is an essential addition to any airport runway, providing clear and reliable guidance for pilots during critical phases of flight. Its durable construction, bright illumination, and energy-efficient design make it the perfect choice for enhancing safety and efficiency at any airport. Trust in our product to deliver the reliable performance and visibility that pilots need for safe takeoffs and landings.

Power supply: 2.8A~6.6A

Rated power: 2*105W(green); 2*105W(red)

Halogen Life Time:1000 Hours

Minimum Average Intensity:Green:10,000cd; Red: 2500cd

Color: Green & Red

IP grade: IP68

Item: OS-TAE-98-X-GR(H)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-TAE-98-X-GR(H)

Item	OS-TAE-98-X-GR(H)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~ 6.6A
Rated power	2105W(red)；2105W(green)
Lamp	Halogen Lamp
Lamp Life	1000Hours
Photometric Property - Light color	Green & Red
Main beam angle	Vertical:1°- 10° or 0.25°-4.75° or 0.2°- 4.7°; Horizontal±5.5°or ±6°
Min intensity	Green:10, 000cd; Red: 2500cd
Light Size	340X340X190mm³
Weight	7Kg(without shallow base） 12Kg(with shallow base）
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main beam	Actual avg. cd
H	V
OS-TAE-98-X-GR(H)-315 - ICAO Figure A2-3	11096
ICAO Figure A2-8 - ±6°	2727
OS-TAE-98-X-GR(H)-210 - FAA L-850D	3904
±6° - 0.2° to 4.7°	2603
1 - Shallow base	Lower cover
2 - O-ring	Bulb holder plate
3 - M16 waterproof connector	Light bulb card
