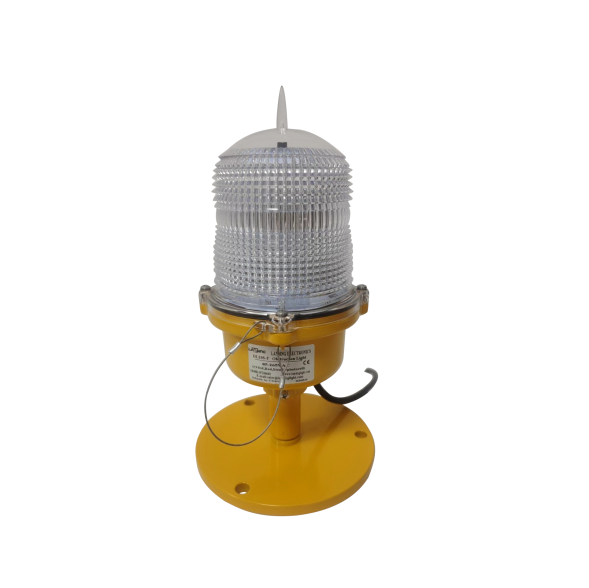

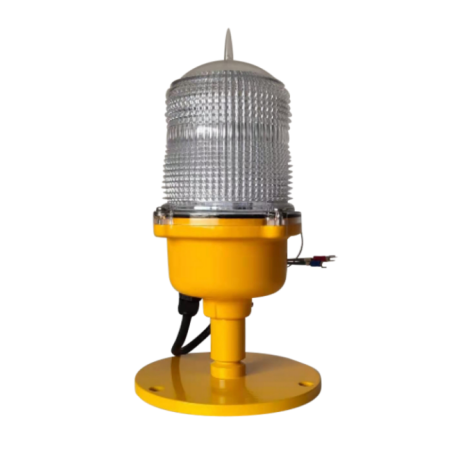

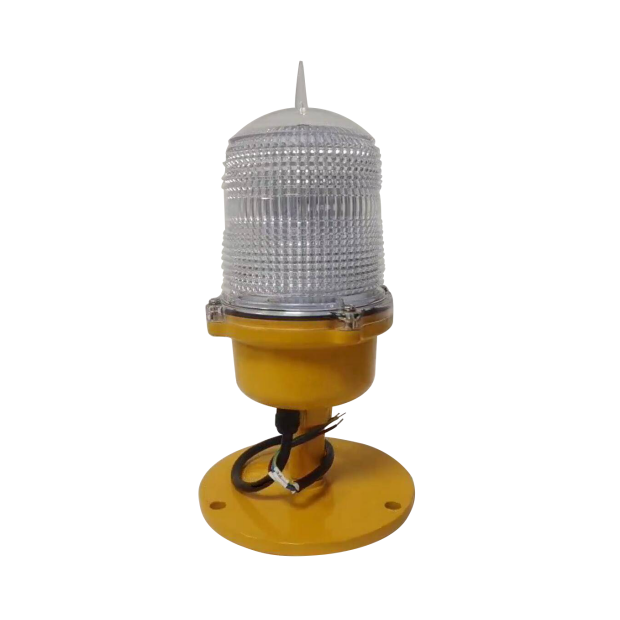

WL78S-F L-810 Low Intensity Single Obstruction Light (Type B)

Short Description:

Altiglo WL78S-F Low intensity single aviation light is a dependable and efficient

choice for marking obstacles in the air. With its high visibility, durability, and

energy-saving technology, it provides a cost-effective solution for enhancing

safety and navigation in the aviation industry.

Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;

Effective Intensity:>32.5 Candela

LED Lifespan:100,000 Hours

Materials:Lens-PC; Body- Aluminum

Item: WL78S-F

ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5Candela

Downloads

Send Enquiry

Item	WL78S-F
ELECTRICAL CHARACTERISTIC - Effective Intensity	>32.5Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red, yellow, white, green or blue
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Alarm type	NO & NC, dry contact relay
POWER SUPPLY - Input voltage	85-265VAC, 50/60 Hz; 12VDC; 24VDC; 30-60VDC;
Power consumption	5W (Steady burning)
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP65
Weight	3KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Wire Connection mode	Threaded 3/4” bottom entry
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay
