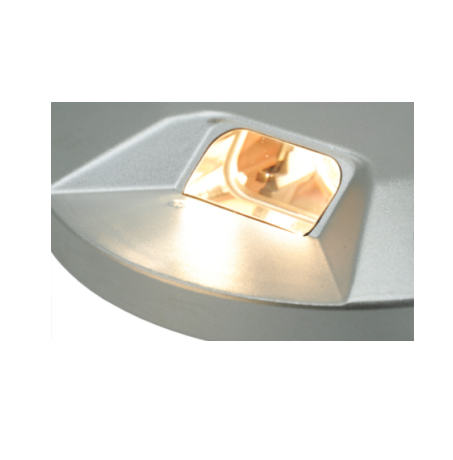

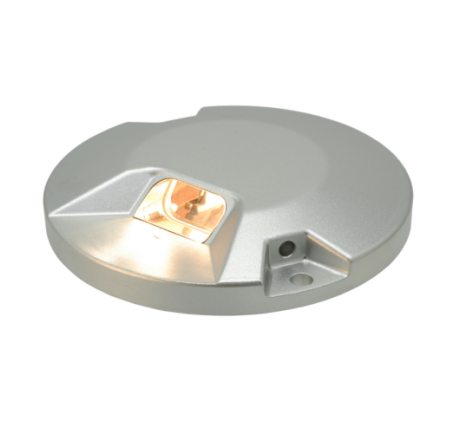

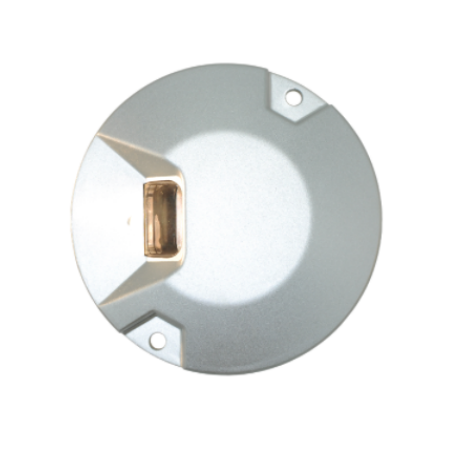

OS-TDZ-02-X-WB(H) Halogen Inset Runway Touchdown Zone Light

OS-TDZ-02-X-WB(H) Halogen Inset Runway Touchdown Zone Light - Image 3

Short Description:

Our OS-TDZ-02-X-WB(H) Halogen Inset Runway Touchdown Zone Light is crafted with precision

and durability in mind, making it a reliable solution for airports and airfields of all sizes and provides efficient and effective lighting for pilots during landing, ensuring enhanced visibility and safety on the runway.

Power supply: 2.8A~6.6A

Rated power: 1X48W

Halogen Life Time:1000 Hours

Minimum Average Intensity:5000cd

Color: White

IP grade: IP68

Item: OS-TDZ-02-X-WB(H)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-TDZ-02-X-WB(H)

Item	OS-TDZ-02-X-WB(H)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~ 6.6A
Rated power	1X48W
Lamp	Halogen Lamp
Lamp Life	1000Hours
Photometric Property - Light color	White
Main beam angle	Vertical:2°- 9°; Horizontal:± 5.°
Min intensity	5000cd
Light Size	203203150mm(without shallow base） 220220150mm(with shallow base）
Weight	3.5Kg(without shallow base） 6.1Kg(with shallow base）
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main beam	Actual avg. cd
H	V
OS-TDZ-02-X-WB(H) - ICAO Figure A2-5/ FAA L-850B	6657
1 - Shallow base	Waterproof connector
2 - O Sealing ring	Support plate
3 - Shallow base cover	Screws
4 - Joggle	Lower base
5 - Waterproof connector	Joint porcelain
6 - Screws	O Sealing ring
