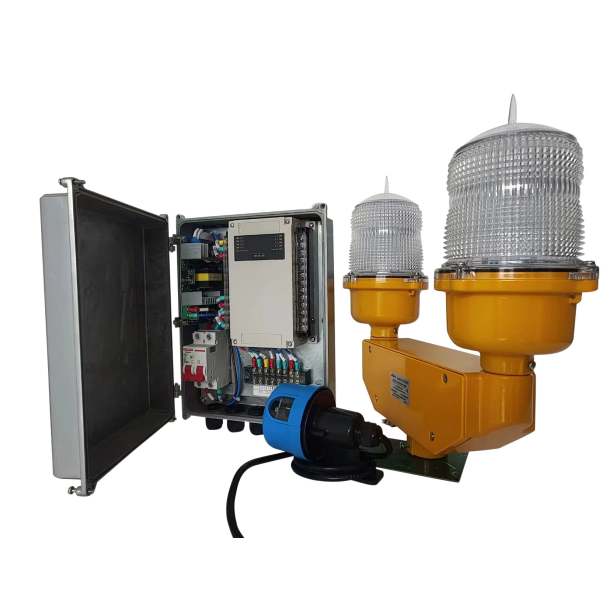

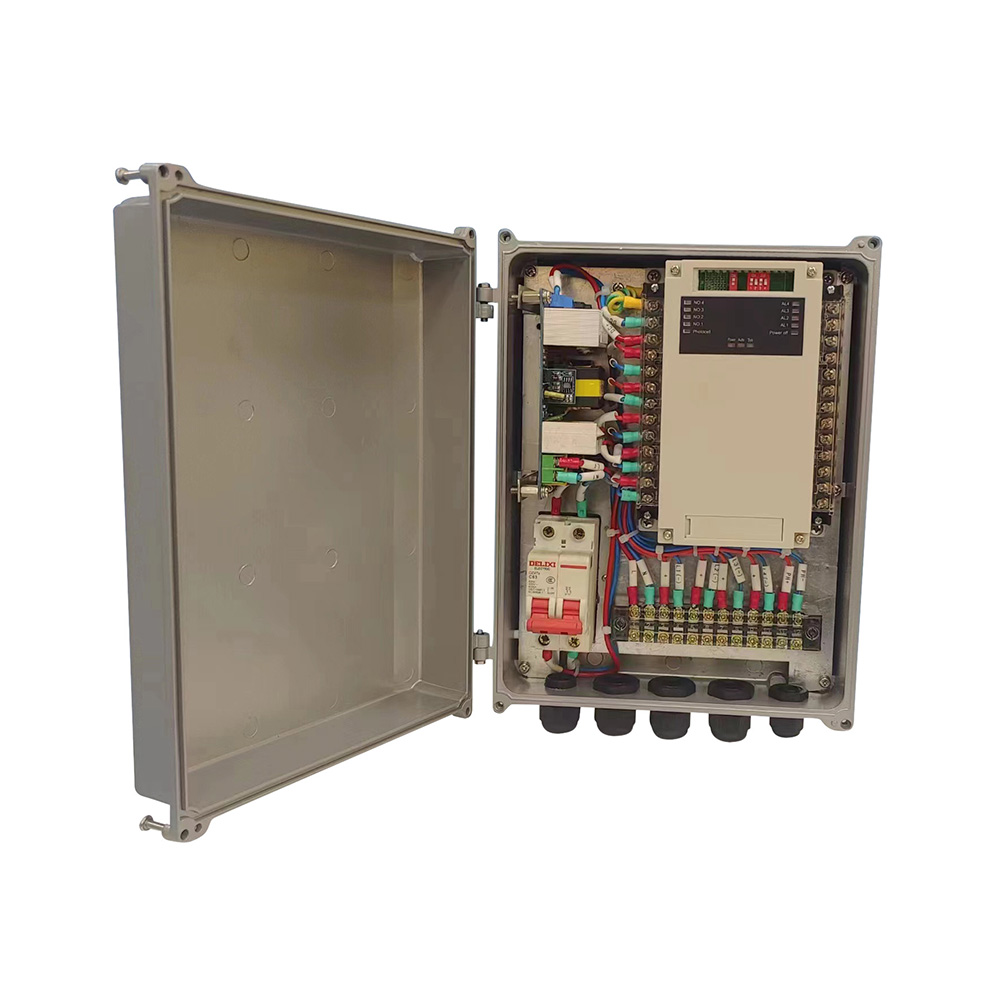

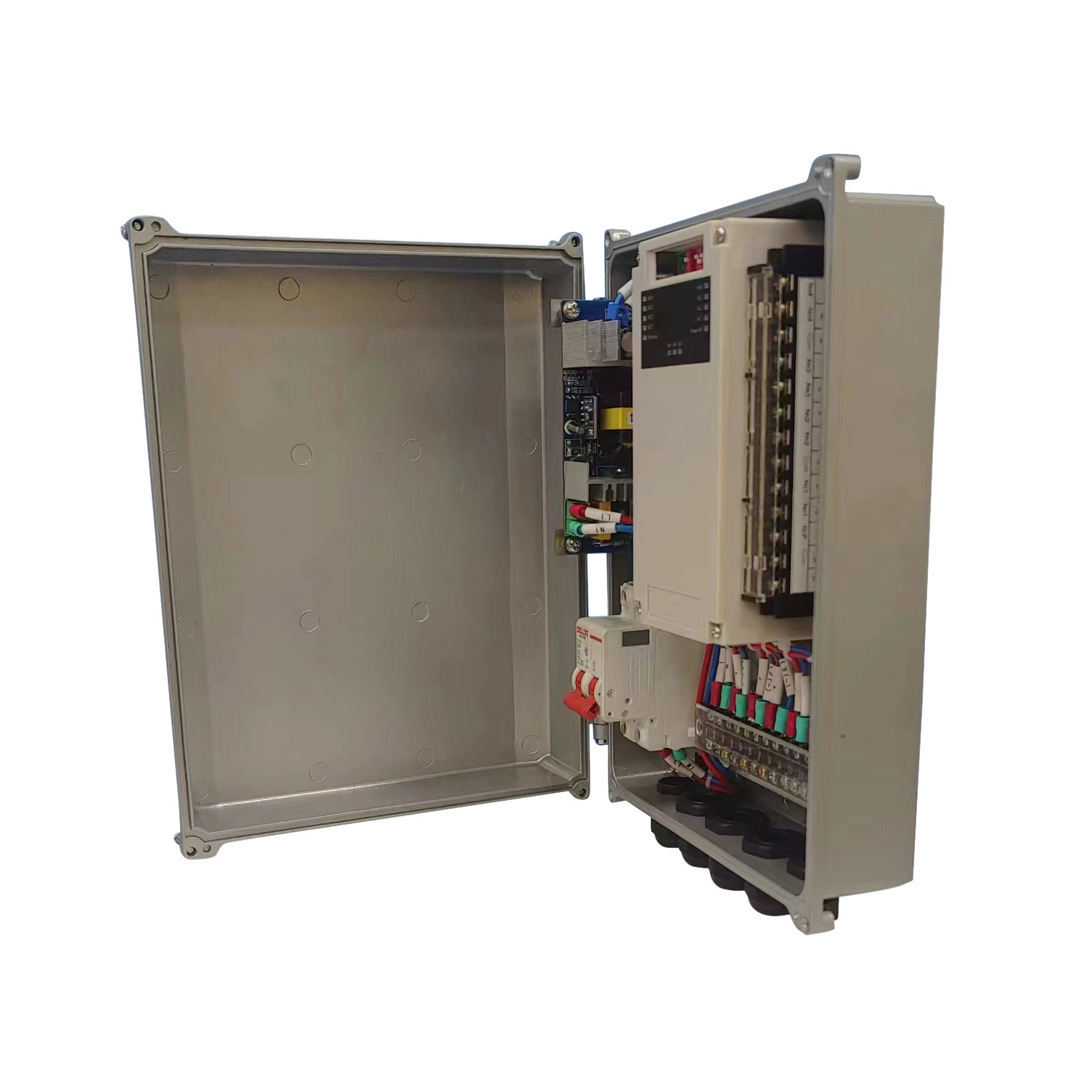

XBL06B Obstruction Light Monitoring Controller
Short Description:
Input voltage: 85-265VDC
Output voltage: 48VDC
Number of Light output: 4*contact relay for lights and power
Photocell sensitivity: 70~100Lux
Photocell bypass: Auto/Manual adjustable
Alarm type: NO&NC,Dry contact alarm
Materials: Aluminum alloy
IP protection: IP65
Item: XBL06B
POWER SUPPLY - Input voltage: 110-265V AC
Downloads
- SKU
XBL06B- Category
- Controller & Monitoring
- Item: XBL06B
- POWER SUPPLY - Input voltage: 110-265V AC
- Output voltage: 48V DC
- Numbers of Light Output: 4
- Max.Load/Output: 1A
- Flash Rate: Steady/Flashing(20FPM), adjustable
- Photocell sensitivity: 70-100 Lux
- Photocell bypass: Auto/Manual adjustable
| Item | XBL06B |
|---|---|
| POWER SUPPLY - Input voltage | 110-265V AC |
| Output voltage | 48V DC |
| Numbers of Light Output | 4 |
| Max.Load/Output | 1A |
| Flash Rate | Steady/Flashing(20FPM), adjustable |
| Photocell sensitivity | 70-100 Lux |
| Photocell bypass | Auto/Manual adjustable |
| Alarm type | NO & NC, dry contact relay |
| Numbers of Alarm Output | 4*contact relay for lights and power |
| Surge Protection | 20KV |

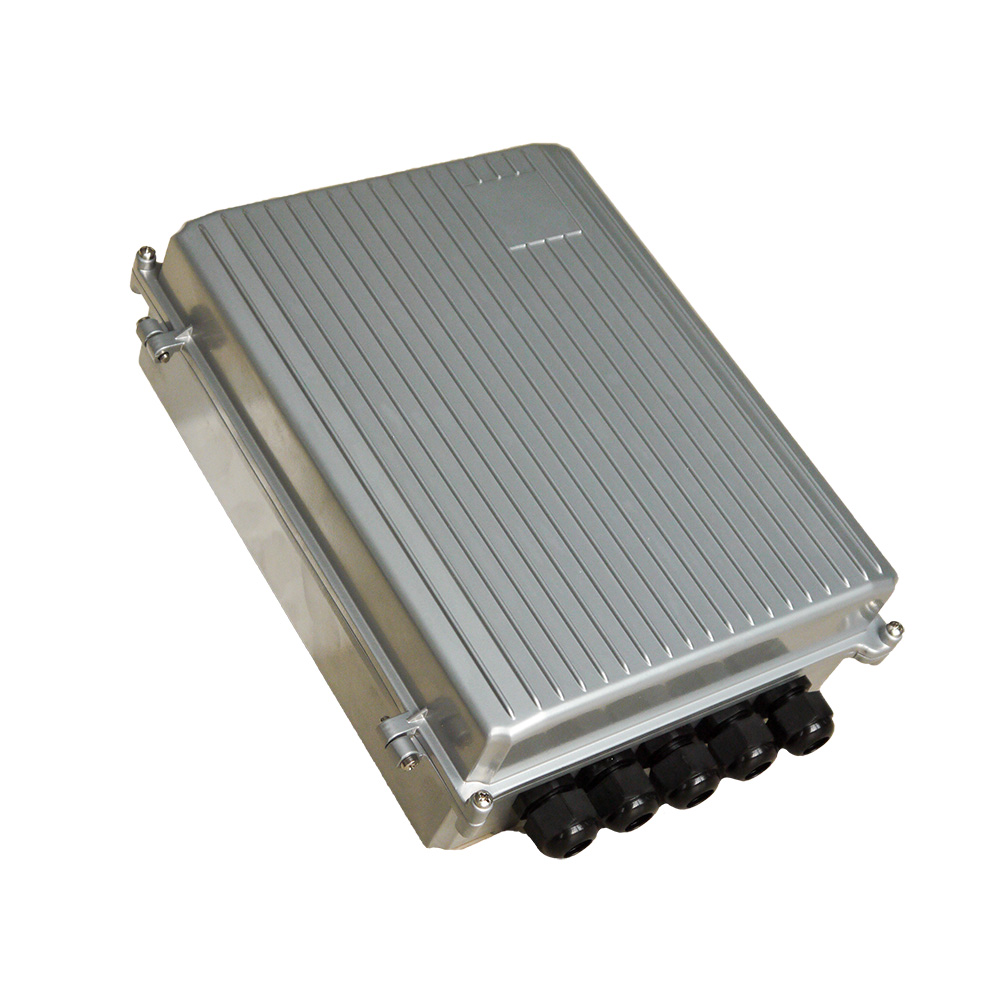

| MECHANICAL STRUCTURE - Enclosure Type | Outdoor |
| Enclosure Material | Aluminum alloy |
| Protection | IP65 |
| Net Weight | 3.5kg |
| Dimension (H*W*Depth) | 350*300*120mm |
| Operation Temperature | -30°C~+70°C |
| Operation Humidity | 0-95% RH non-condensing |
| Mounting | Wall mounting or U-bolt mounting |
Typically specified for Controller & Monitoring projects.
Common use cases include aircraft warning lights, aviation lighting, aviation lights, aviation warning light, communication tower lighting, controller & monitoring.
