CCR, Isolation Transformer Ccr

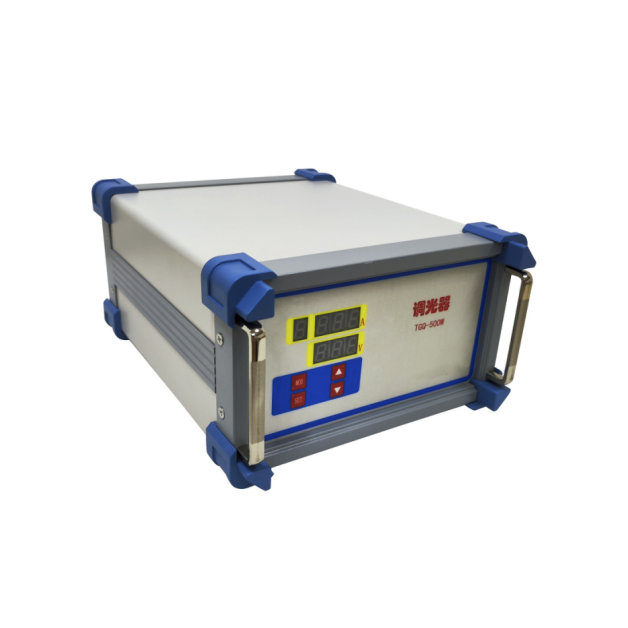

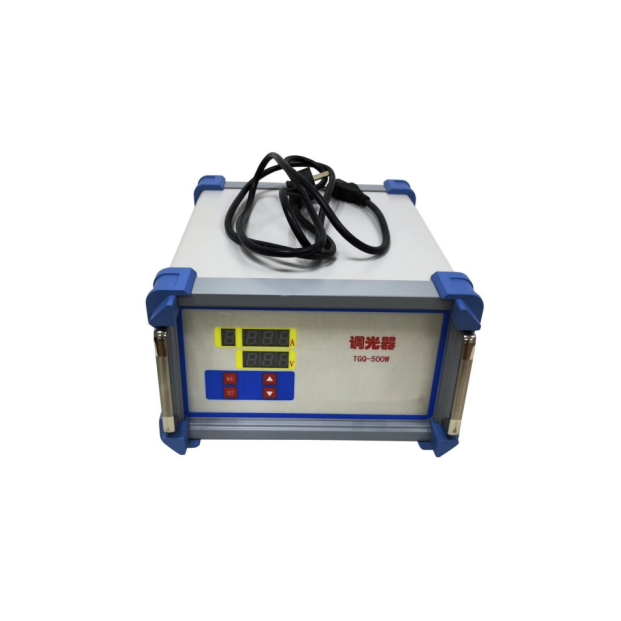

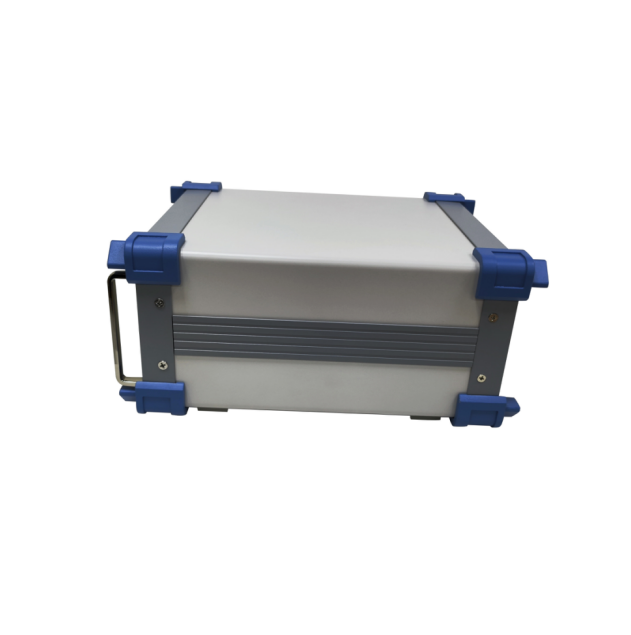

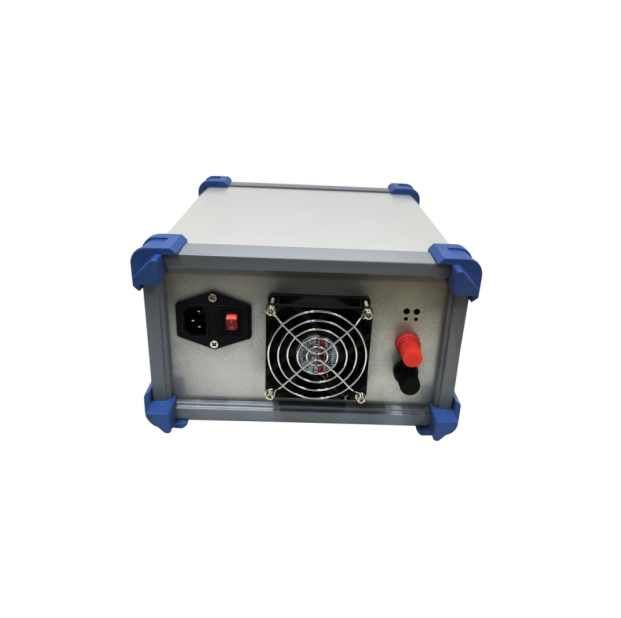

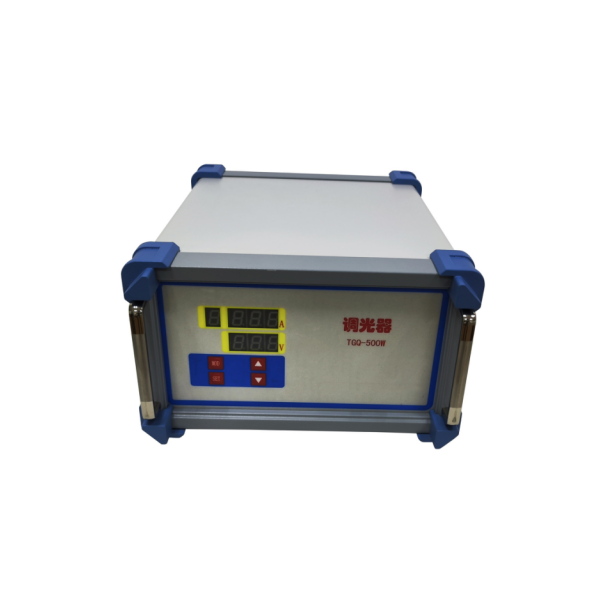

QCL-CCR-800 MINI Constant Current Regulator
Short Description:
Input voltage: 110 – 230 VAC
Input frequency: 47 – 63 Hz
Output current: 2.8 – 6.6 A
Brightness adjustment: 5 levels
Electrics current accuracy: <± 0.05A
Maximum output power: 400W
Operation noise: <38dB
Operating temperature: 0 – 55 °C
Name: Parameter
Operating voltage: 110V-230V AC
Downloads
- SKU
QCL-CCR-800-MINI-CONSTANT-CURRENT-REGULATOR- Category
- CCR, Isolation Transformer Ccr
- Name: Parameter
- Operating voltage: 110V-230V AC
- Frequency: 47 - 63Hz
- Output current: 2.8 – 6.6 A
- Output current accuracy: <± 0.05A
- Current stability: <3%
- Maximum Load: 500W
- Brightness adjustment: 5 levels
| Name | Parameter |
|---|---|
| Operating voltage | 110V-230V AC |
| Frequency | 47 – 63Hz |
| Output current | 2.8 – 6.6 A |
| Output current accuracy | <± 0.05A |
| Current stability | <3% |
| Maximum Load | 500W |
| Brightness adjustment | 5 levels |
| IP Standard | IP66 |
| Ambient Temperature | -40℃～+55℃ |
| Power factor | 0.9 |
| Operation noise | 38dB |
| Install | Desk mounted |
| Ventilation | Internal cooling fan |
| Cabinet | Steel construction |
| Overall size(mm) | 280＊180＊108mm |
| Weight | 6kg |
Typically specified for CCR, Isolation Transformer Ccr projects.
Common use cases include adjustable constant current regulator, airfield lighting constant current regulations and power solutions, airport lighting, ccr, constant current regulator mcr400, constant current regulator series.
