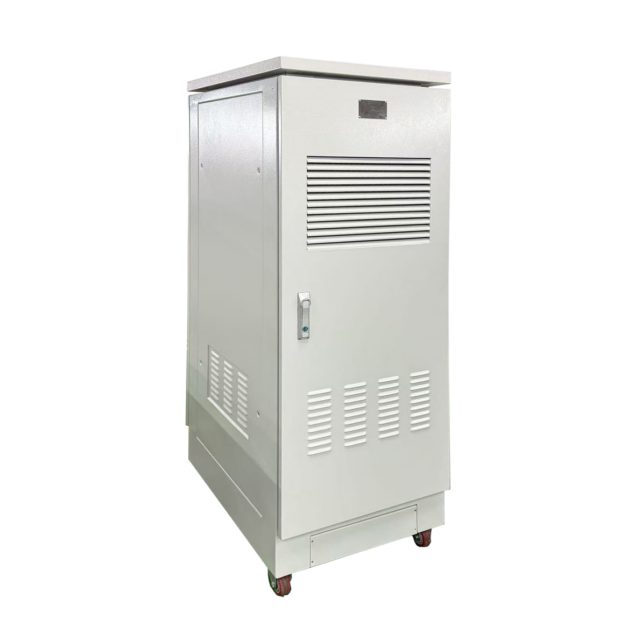

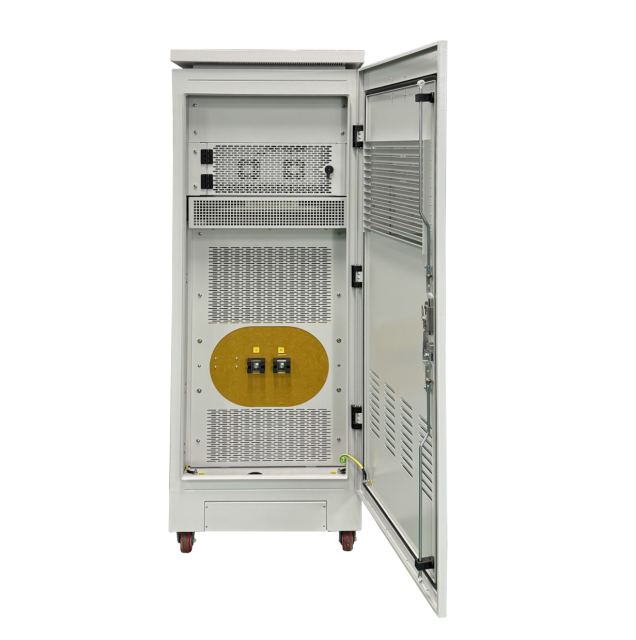

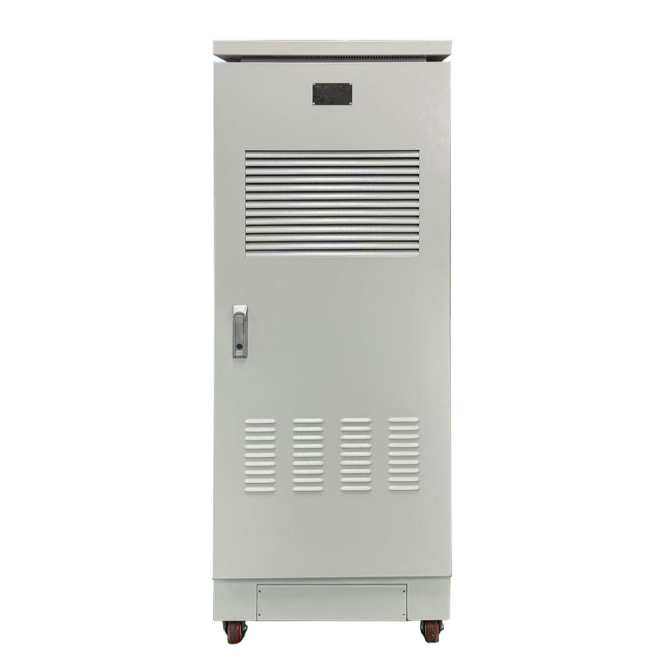

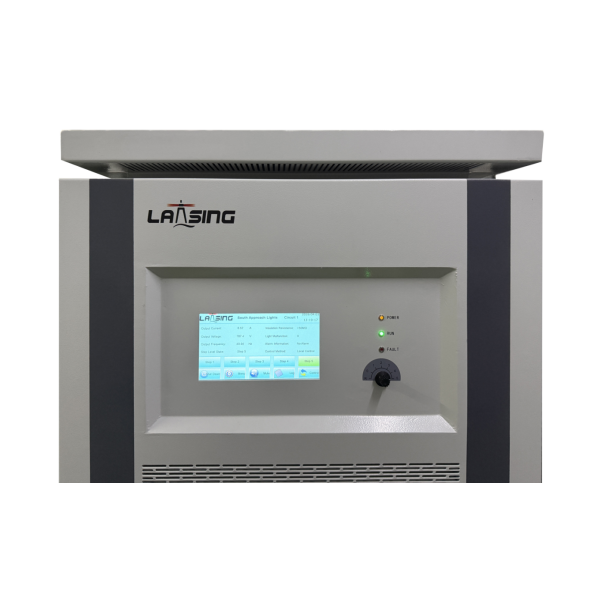

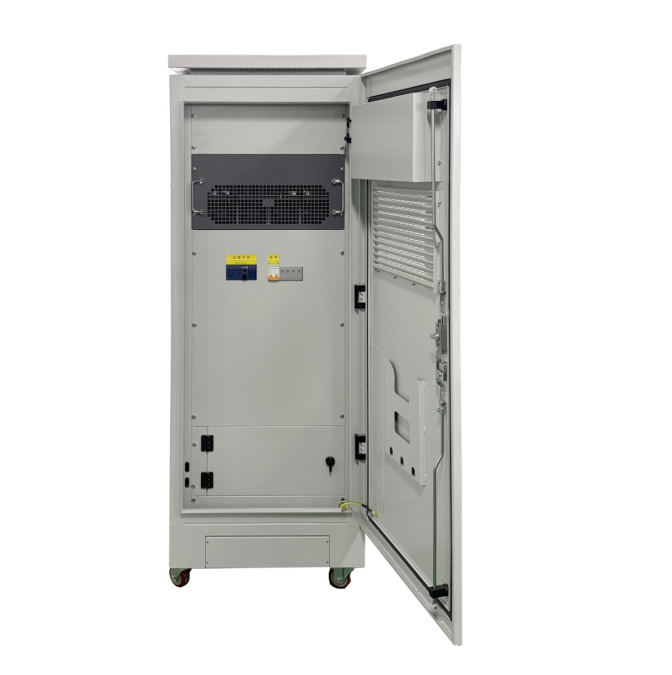

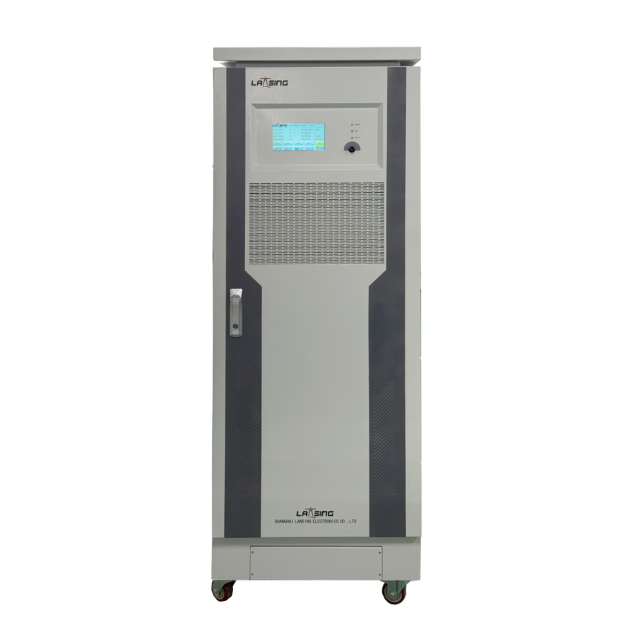

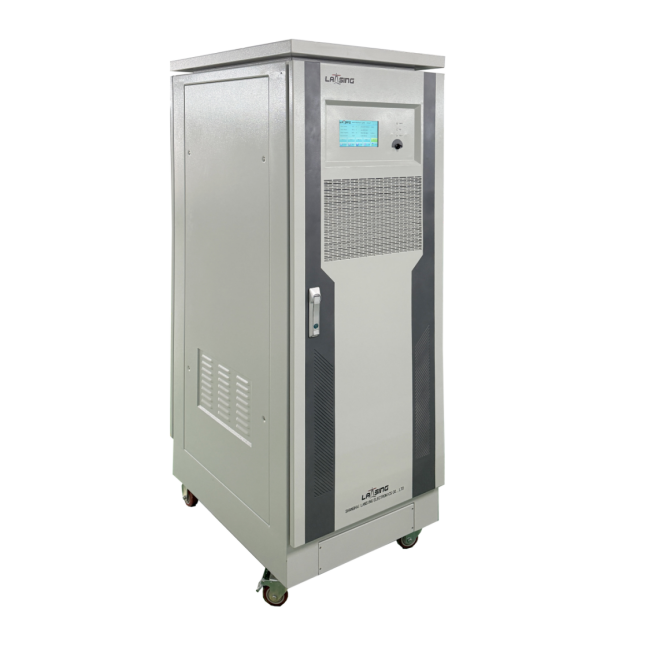

QCL-CCR8700S Constant Current Regulator(Sine Wave Type)
Short Description:
Altiglo QCL-CCR8700S Sine Wave Type Constant Current Regulator is a dependable and efficient solution for powering airport lighting systems, offering precise control, seamless integration, and robust performance. With its advanced technology and reliable operation, it is the ideal choice for ensuring the safety and efficiency of airport operations.
Item: QCL-CCR8700S
POWER SUPPLY - Input voltage: 380V~+10%-10%
Downloads
- SKU
QCL-CCR8700S- Category
- CCR, Isolation Transformer Ccr
- Item: QCL-CCR8700S
- POWER SUPPLY - Input voltage: 380V~+10%-10%
- Output voltage: 0~4545V
- Rated capacity: 30kVA
- Efficiency: ≥0.92 (rated capacity is 30kVA)
- Power supply method: AC 220V50HZ
- Output constant current accuracy: 0.1A
- Output frequency accuracy: 0.1Hz
| Item | QCL-CCR8700S |
|---|---|
| POWER SUPPLY - Input voltage | 380V~+10%-10% |
| Output voltage | 0~4545V |
| Rated capacity | 30kVA |
| Efficiency | ≥0.92 (rated capacity is 30kVA) |
| Power supply method | AC 220V50HZ |
| Output constant current accuracy | 0.1A |
| Output frequency accuracy | 0.1Hz |
| Power factor | The sine wave type is not less than 0.9 |
| Sort by output characteristics | IGBT CCR |
| Electrical Performance - Current level (1) | 2.8A±0.1 |
| Current level (2) | 3.4A±0.1 |
| Current level (3) | 4.1A±0.1 |
| Current level (4) | 5.2A±0.1 |
| Current level (5) | 6.6A±0.1 |
| MECHANICAL STRUCTURE - Open circuit protection time | <2s |
| Over current protection time - Output current exceeding the | <5s |
| Output current exceeding the highest level output current ( | <1s |
| Altitude (air pressure)( m) | Type C: Altitude of 5000m and below |
| Noise | ＜60dB |
| Light level switching time | ＜3s |
| Net Weight | 320KG |
| Dimension (H*W*Depth) | 800*600*1600（L*W*H）mm |
| Working ambient temperature | 0℃~+40℃ |
| Relative Humidity | 10%-95% |
| Specifications - Weight(KG) | Size(mm) |
| 2.5kVA - 180 | 800*600*1600 （ L*W*H ） mm |
| 5kVA | 220 |
| 7.5kVA | 230 |
| 10kVA | 240 |
Typically specified for CCR, Isolation Transformer Ccr projects.
Common use cases include adjustable constant current regulator, airfield lighting constant current regulations and power solutions, airport lighting, ccr, constant current regulator mcr400, constant current regulator series.
