Short Description:

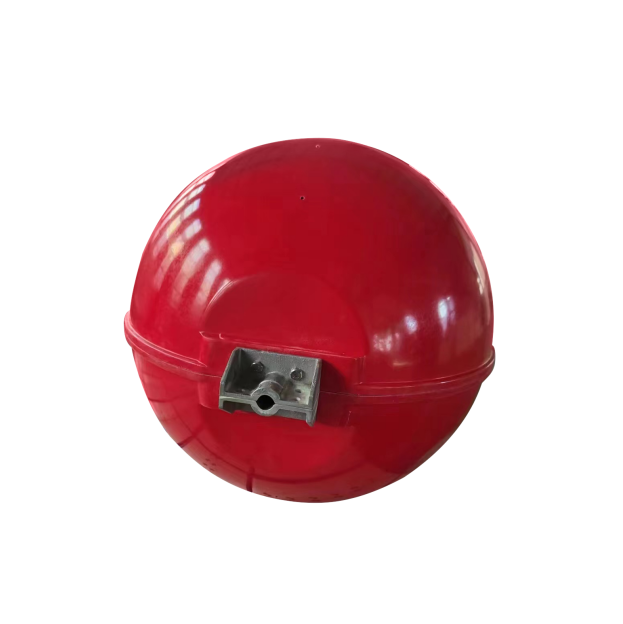

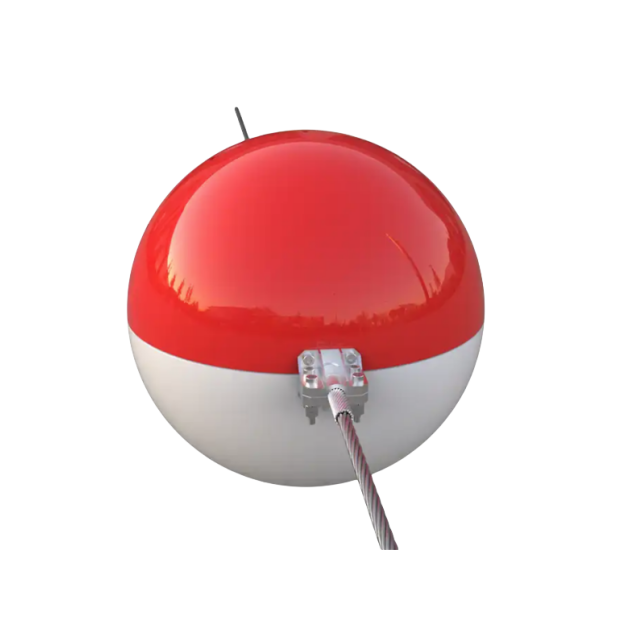

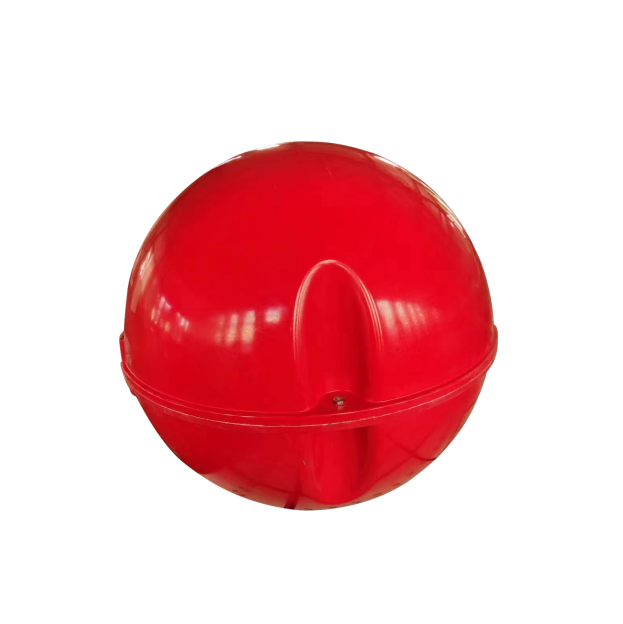

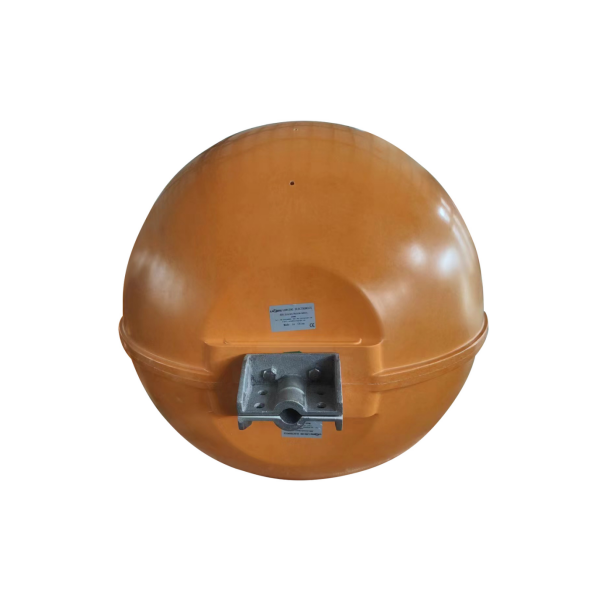

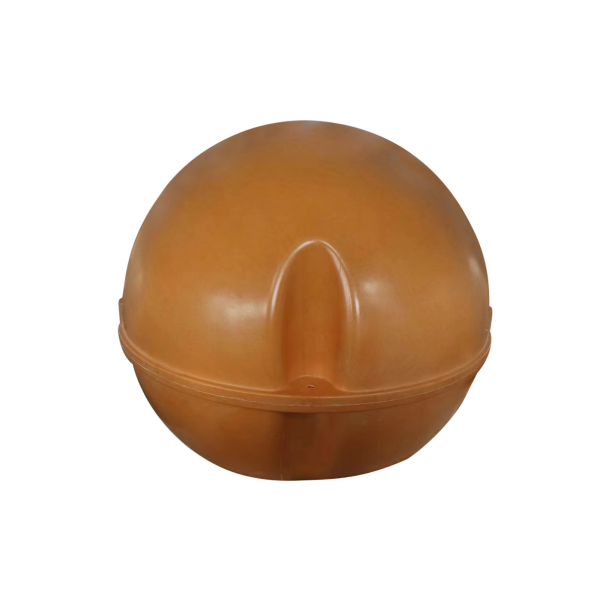

Altiglo YZ09 aircraft warning sphere for transmission lines offers a simple yet essential solution for enhancing aviation safety and minimizing the risk of accidents. With its durable construction, high visibility, and compliance with industry standards, it is the ideal choice for power line operators looking to prioritize safety and responsibility in their operations. Invest in our aircraft warning sphere today and demonstrate your commitment to safety in the airspace around your transmission lines.
Diameter: 600mm
Material: Fiberglass Reinforced Polymer
Suitable for 35KV-1000V voltage transmission line
Suitable for diameter 6.5-55mm conductor
Optional:preformed armor rods and reflective strips
Item: YZ09
Operation - Visible Distance: 1250 m from the air and 350 m from the ground.
Downloads
YZ09| Item | YZ09 |
|---|---|
| Operation - Visible Distance | 1250 m from the air and 350 m from the ground. |
| Voltage Range | 35KV-1000KV |
| Conductor Diameter | 6.5-55mm |
| Mechanical Structure - Color | Orange, Red, White, Orange-White, Red-White(optional) |
| Sphere body | FRP(Fiberglass Reinforced Polyester) |
| Tensile strength | ≥128Mpa |
| Bending strength | ≥230Mpa |
| Reflective Coefficient | 0.3-0.7 |
| Cable Clamp | Aluminum alloy |
| Fastener | Stainless steel 304 |
| Diameter | 600mm |
| Weight | 5.0KG |
| Thickness | 3mm |
| Drain Holes | Yes |
| Temperature | -40~+90℃ |
| Optional | • Preformed Armor Rods • Reflective Strip |
| Warranty | 1 year |
| Series - Diameter (mm) | Reflective Strip |
| YZ09 - 600 | RS |
| - 800 | R(Red) |
| - | R/W(Red/White) |
Typically specified for Transmission Line Warning projects.
Common use cases include aerial marker bal, aerial marker balls, aerial marker balls for power lines, aerial power line markers, aircraft warning balls, aircraft warning sphere.
