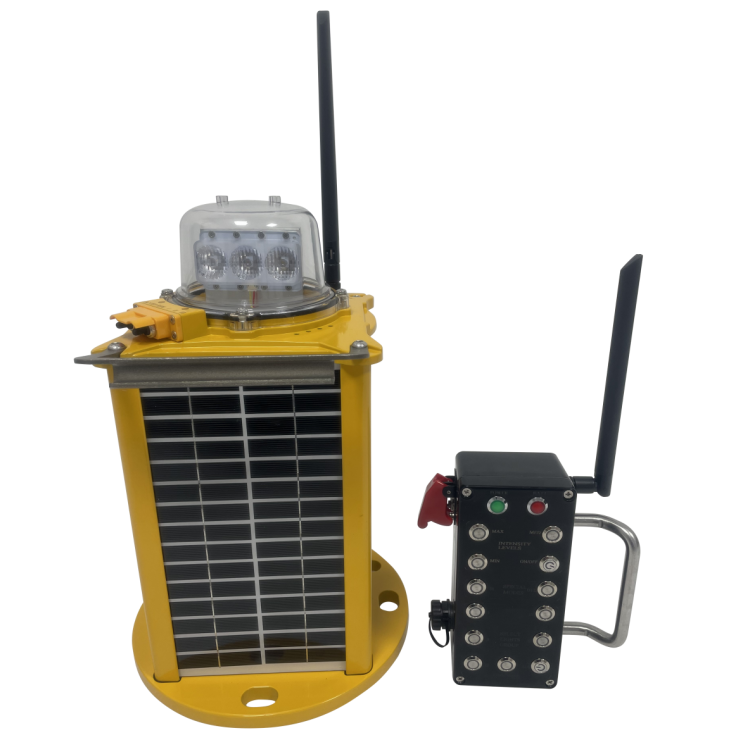

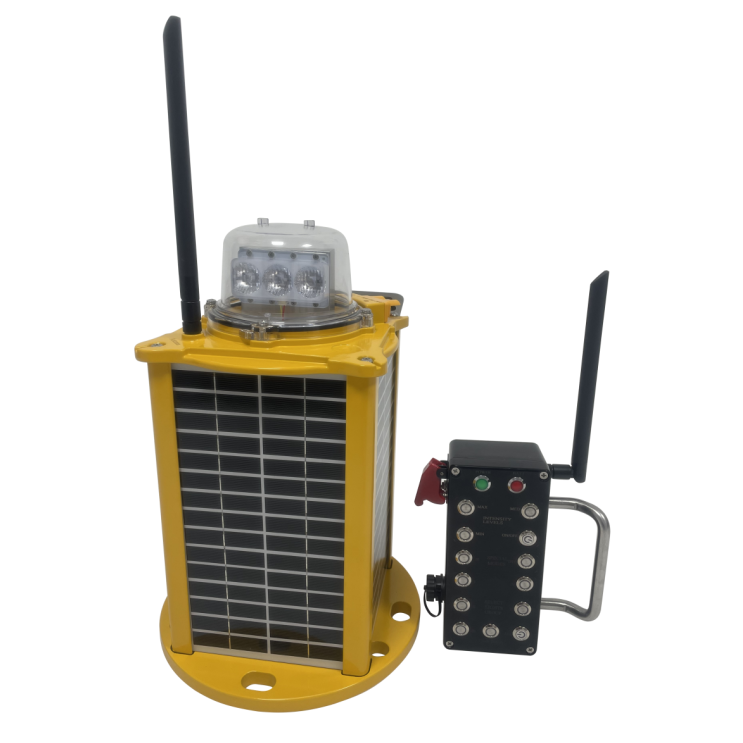

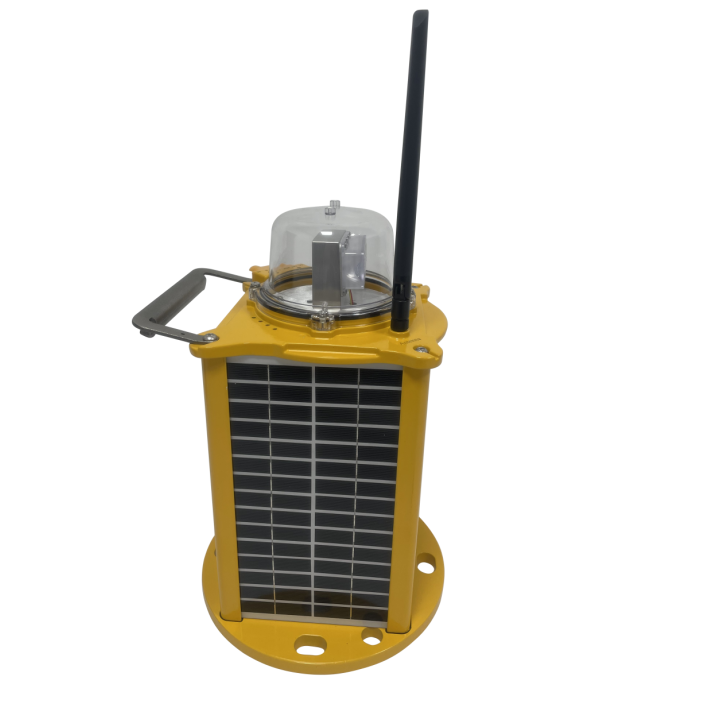

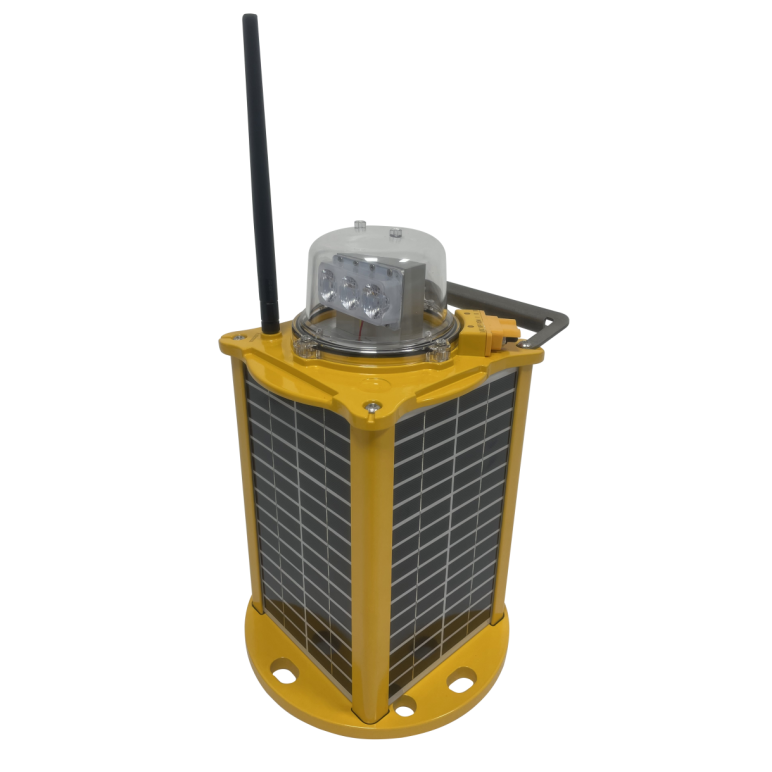

Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller
Short Description:
With its advanced features and practical benefits, our QCL530-S-ASL-XX lED portable solar powered radio controlled approach side row Light is a valuable addition to any airport’s infrastructure. Whether for permanent installation or temporary use, this innovative product is designed to meet the evolving needs of modern aviation operations, providing a reliable and efficient solution for enhancing runway visibility and safety.
Solar panel: Solar module, mono-crystalline silicon 12V/4*5W
LED Life Time:100,000Hours
Color: Red
IP grade: IP68
Item: QCL530-S-ASL-XX
ELECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
QCL530-S-ASL-XX| Item | QCL530-S-ASL-XX |
|---|---|
| ELECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | ≥5 000cd |
| Beam angle | Uni-directional |
| LED Color | Red |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Fixed mode |
| Autonomy | 30 hrs (at max intensity , authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| Frequency | Lora 433MHZ |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP68 |
| Weight | 6KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Typically specified for Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller projects.
Common use cases include airfield beacon light, airport beacon light, airport lighting, faa rotating beacon, identification beacon, identification beacon aerodrome.
