Controller & Monitoring
XBL08A Obstruction Light Monitoring Controller
Input&output voltage: 48VDC Number of Light output: 2*contact relay for lights, power and photocell Photocell sensitivity:…
SKU XBL08A
Short Description:

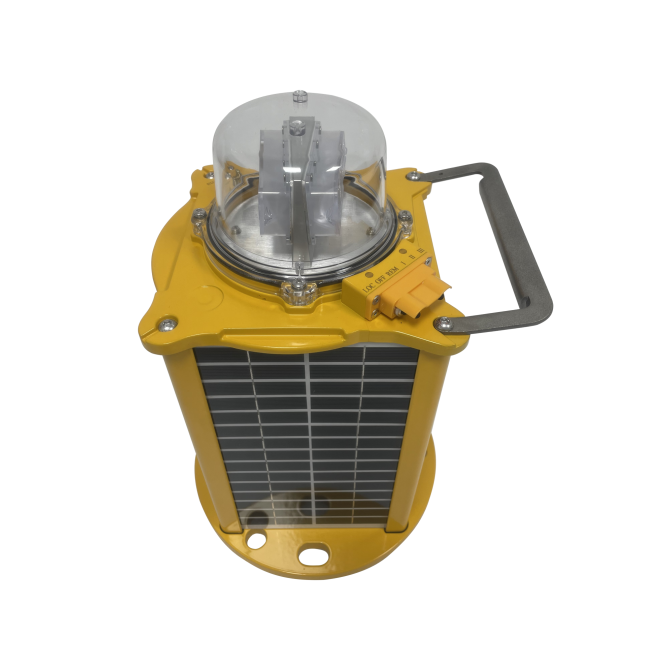

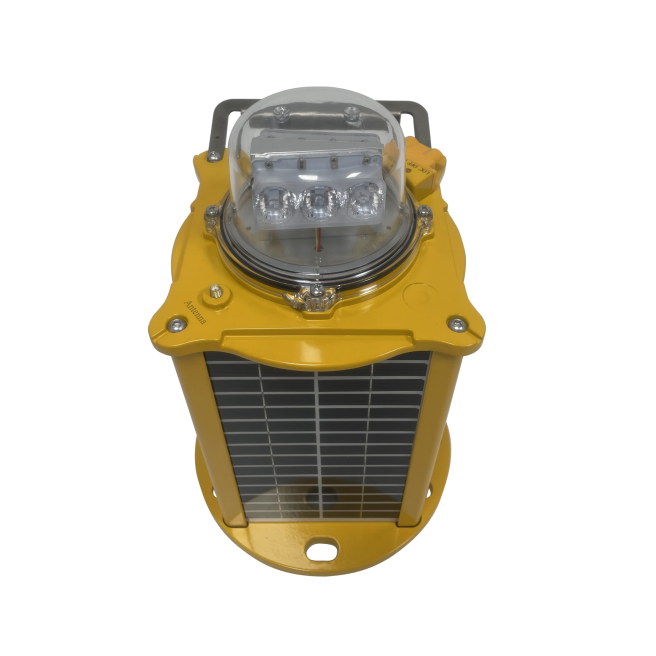

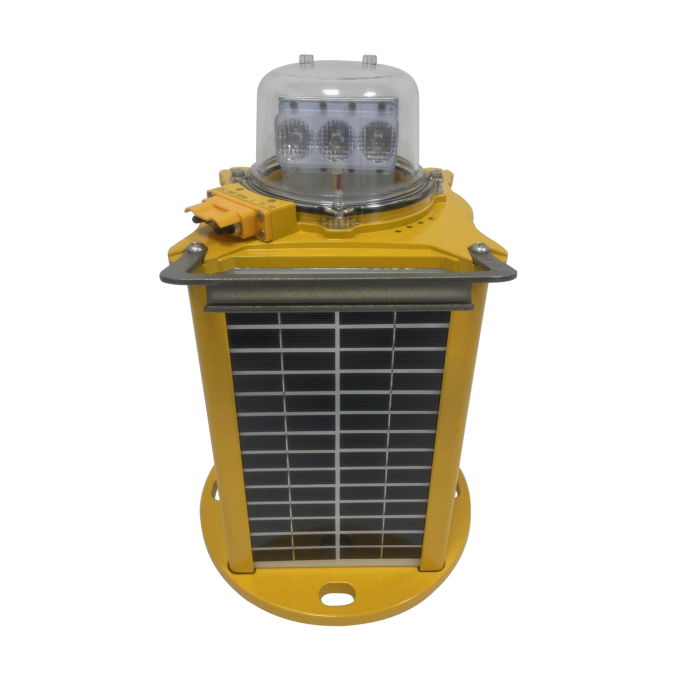

In the ever-evolving world of aviation, safety and visibility are paramount. Altiglo QCL590-S-RE LED portable solar runway edge light, a groundbreaking solution designed specifically for airports and airfields that demand reliable, efficient, and sustainable lighting. It is engineered to enhance runway visibility, ensuring that pilots can navigate with confidence, regardless of the time of day or weather conditions. With its powerful LED illumination, solar-powered efficiency, and durable design, this product is set to redefine runway lighting standards. Invest in the future of aviation safety and visibility with the LED Portable Solar Runway Edge Light—where innovation meets reliability. Illuminate your airfield today and ensure that every flight takes off and lands with confidence.
Solar panel: Solar module, mono-crystalline silicon 12V/4*5W
LED Life Time:100,000Hours
Color: Green and Red
IP grade: IP68
Item: QCL590-S-RE
E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
QCL590-S-RE| Item | QCL590-S-RE |
|---|---|
| E LECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | white≥10, 000cd;yellow≥5000cd; red≥2000cd;green≥2500cd |
| Beam angle | Bi-directional |
| LED Color | White &White; White &Yellow Red & White; Red & Yellow; Green &Yellow |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Fixed mode |
| Autonomy | 15 hrs (at max intensity , authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| B attery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 8 |
| Weight | 6.4 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Typically specified for Standard Solar Lighting projects.
Common use cases include airport lighting, portable solar airfield lighting, products, standard solar lighting.
