Low Intensity Series, Type B Series
Short Description:
Product name:Low Intensity LED Steady Type or Flashing Type(Type B) Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; Effective Intensity:>32.5 Candela LED Lifespan:100,000 Hours Materials:Lens-PC; Body- Aluminum

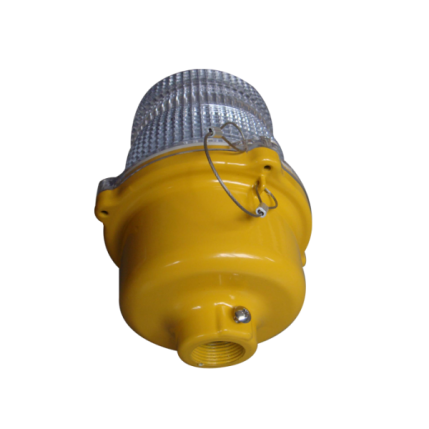

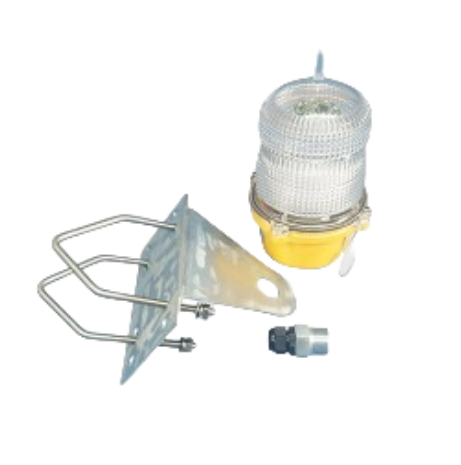

Item: WL78S
ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5Candela
Downloads
WL78S| Item | WL78S |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >32.5Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red, yellow, white, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz; 12VDC; 24VDC;30-60VDC; |
| Power consumption | 5W(Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP65 |
| Weight | 0.7KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Threaded 3/4” bottom entry |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay |
Typically specified for Low Intensity Series, Type B Series projects.
Common use cases include aircraft warning light, aircraft warning lights, aviation light, aviation light fitting, aviation light for tower, aviation lights.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
