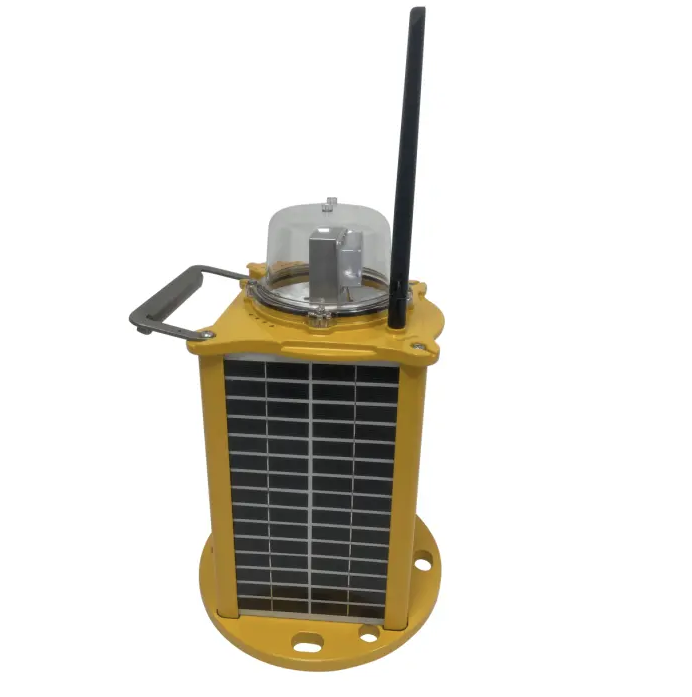

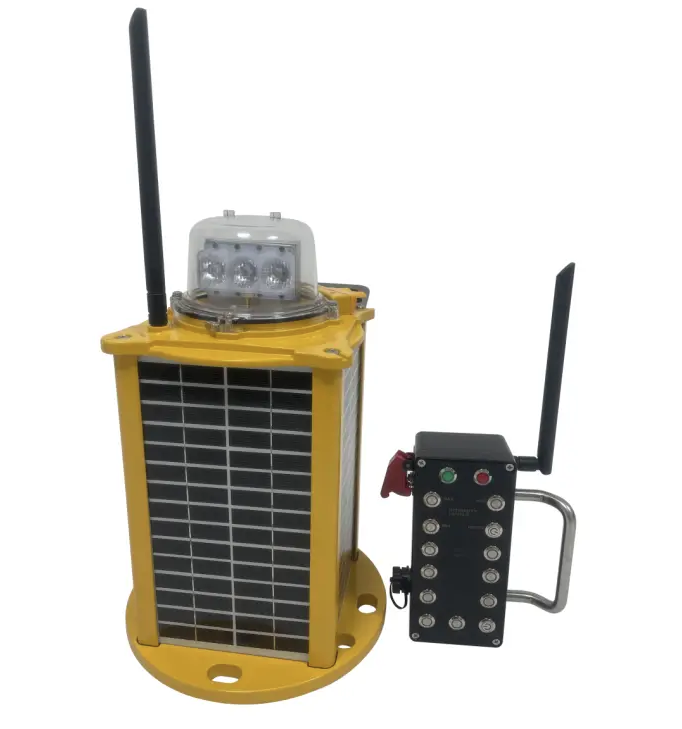

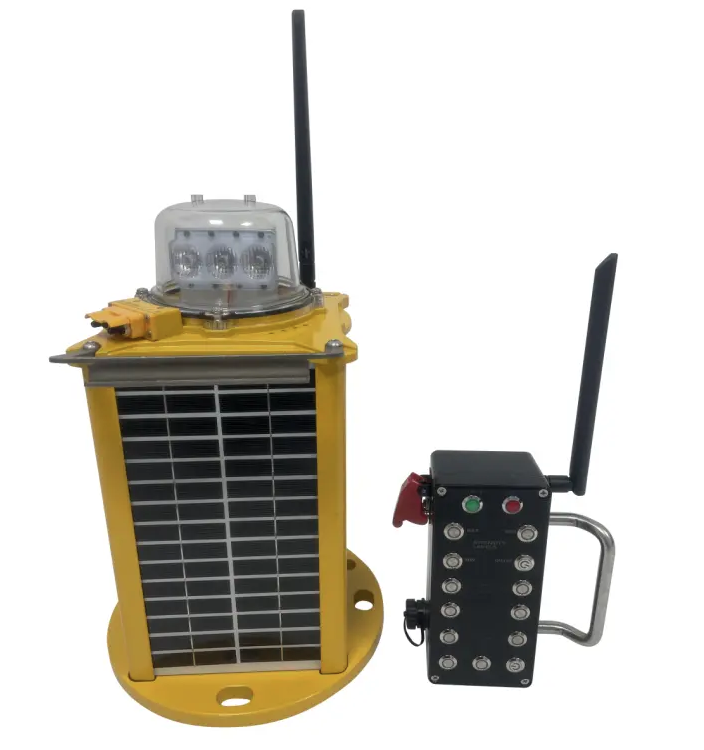

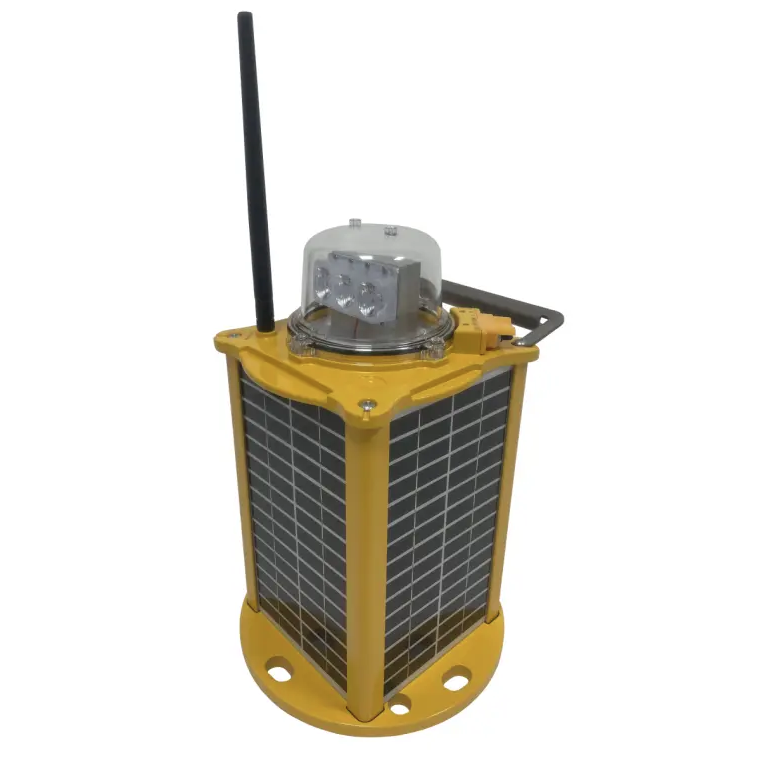

QCL590-S-RE-XX LED Portable Radio Controlled Solar Runway Edge Light

QCL590-S-RE-XX LED Portable Radio Controlled Solar Runway Edge Light - Image 3

QCL590-S-RE-XX LED Portable Radio Controlled Solar Runway Edge Light - Image 4

QCL590-S-RE-XX LED Portable Radio Controlled Solar Runway Edge Light - Image 5

QCL590-S-RE-XX LED Portable Radio Controlled Solar Runway Edge Light - Image 6

QCL590-S-RE-XX LED Portable Radio Controlled Solar Runway Edge Light - Image 7

Short Description:

Whether it’s for a small regional airport or a major international hub, our QCL590-S-RE-XX LED portable solar powered runway edge light offers a reliable, cost-effective, and sustainable solution for runway edge illumination. With its advanced technology, portability, and durability, this product is set to revolutionize airport lighting systems, setting new standards for safety and performance in aviation operations.

Solar panel: Solar module, mono-crystalline silicon 12V/4*5W

LED Life Time:100,000Hours

Color: White and amber

IP grade: IP68

Item: QCL590-S-RE-XX

E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)

Downloads

Send Enquiry

SKU: QCL590-S-RE-XX
Category: Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller

Item	QCL590-S-RE-XX
E LECTRICAL CHARACTERISTIC - Illumination	Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Light intensity	white≥10, 000cd;yellow≥5000cd; red≥2000cd;green≥2500cd
Beam angle	Bi-directional
LED Color	White &White; White &Yellow Red & White; Red & Yellow; Green &Yellow
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Fixed mode
Autonomy	15 hrs (at max intensity ， authomony can be changed accroding to the light intensity)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 12V/4*5W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V20Ah Lithium battery
Frequency	Lora 433MHZ
B attery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP6 8
Weight	6.4 KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ + 55 ℃
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph (240kph)
Dimensions	354mm H, 234mm Diameter
Reserved bolt mounting dimensions	Φ200*M14(4 mounting holes)
OTHERS - Warranty	2 years for light 1 year for battery
Optional	GPS Synchronization function
