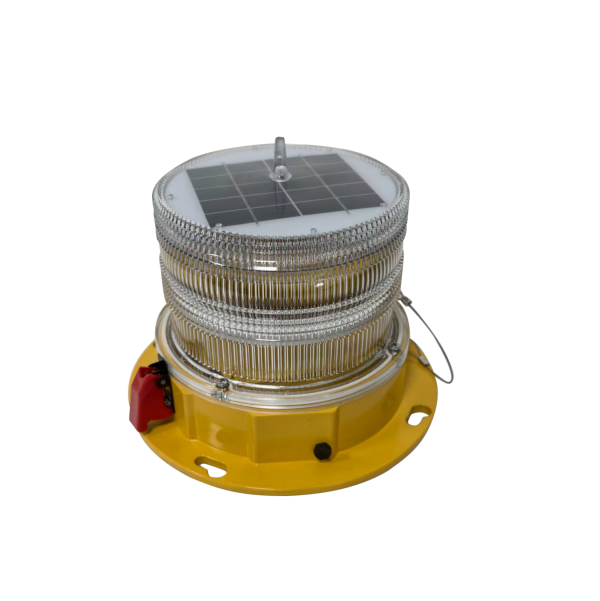

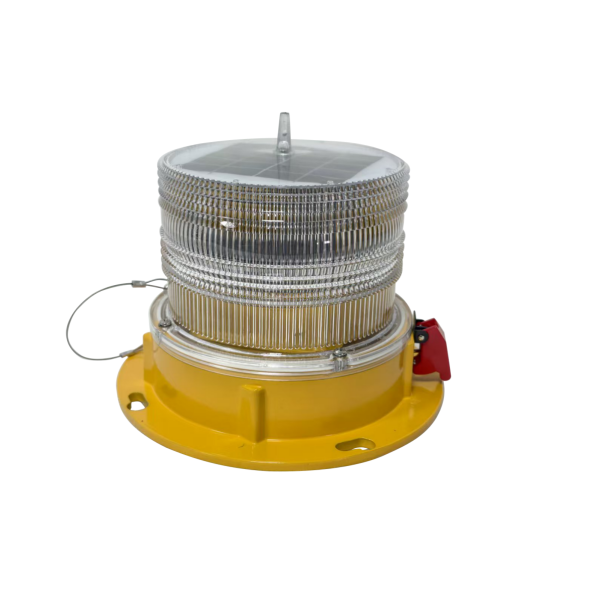

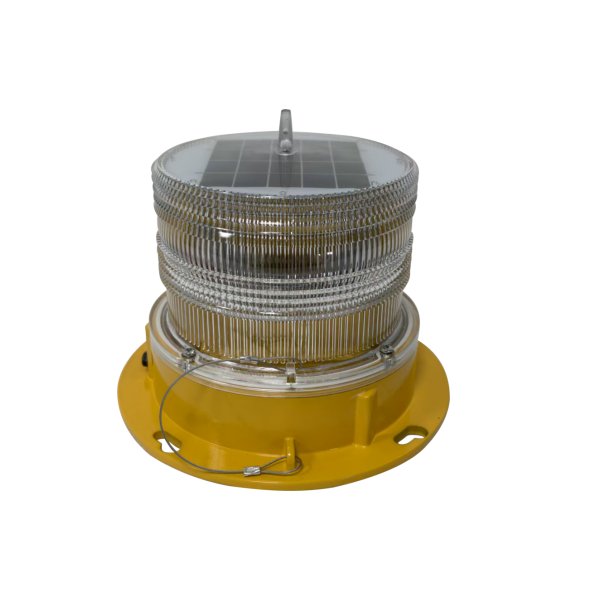

QCL90F LED Portable Solar Runway and Taxiway Light

Short Description:

Product name: LED Portable Solar Runway(Taxiway) Light

Solar panel: High efficient mono-crystalline silicon 5V1.8 Watts

Battery capacity: 3.6V8AH rechargeable NiMH battery

Intensity: 10cd（flashing）；5cd（fixed）

Autonomy: >20 days (flashing)； >10 days(fixed)

Suitable areas: PSH=4

Materials: Lens-PC Body-Aluminum

Item - QCL90F: QCL90F-HI

Light source - Ultra-high intensity LEDs: Ultra-high intensity LEDs

Downloads

Send Enquiry

Item - QCL90F	QCL90F-HI
Light source - Ultra-high intensity LEDs	Ultra-high intensity LEDs
Available colors - Red, Green, White, Amber or Blue	Red, Green, White, Amber or Blue
Peak Intensity(cd) - Steady-on:Blue-2.8/Red-6.8/Green-9.0/Wh	Steady-on:Blue-4.5/Red-12.1/Green-16.9/White-14.2/ Yellow-11.6 Flashing:Blue-29/Red-32.5/Green-34 White-35.1/Yellow-31.1
Visible distance(km) - Flashing: >4 km Steady-on:>2.5 km	Flashing:>7.6 km Steady-on:>4 km
Horizontal Output - 360°	360°
Vertical Divergence - 0° to +7°	0° to +7°
Reflector Type - Omni directional 360° LED Reflector	Omni directional 360° LED Reflector
Led life Expectancy - >100,000hrs	>100, 000hrs
Operating Voltage(V) - 3.6	3.6
Temperature Range - -30 to 55℃	-30 to 55℃
Solar module Type - Multicrystalline	Multicrystalline
Output(watts) - 1.8(watt)	4.8(watt)
Charging regulation - 17	17
Power supply - Microprocessor controlled	Microprocessor controlled
Battery type - High grade NiMH- Environmentally Friendly	High grade NiMH- Environmentally Friendly
Battery Capacity(Ah) - 8	8
Nominal Voltage(V) - 3.6	3.6
Autonomy(nights) - Steady-on: >10 Flashing: >20	Steady-on: >4 Flashing: >10
Body material - Die casting aluminum	Die casting aluminum
Lens Material - Polycarbonate (UV stabilized)	Polycarbonate (UV stabilized)
Lens Design - External optics with interior flute design	External optics with interior flute design
Humidity - 0 to 100%	0 to 100%
Product life Expectancy - Up to 8 years	Up to 8 years
Warranty - 2 years	2 years
