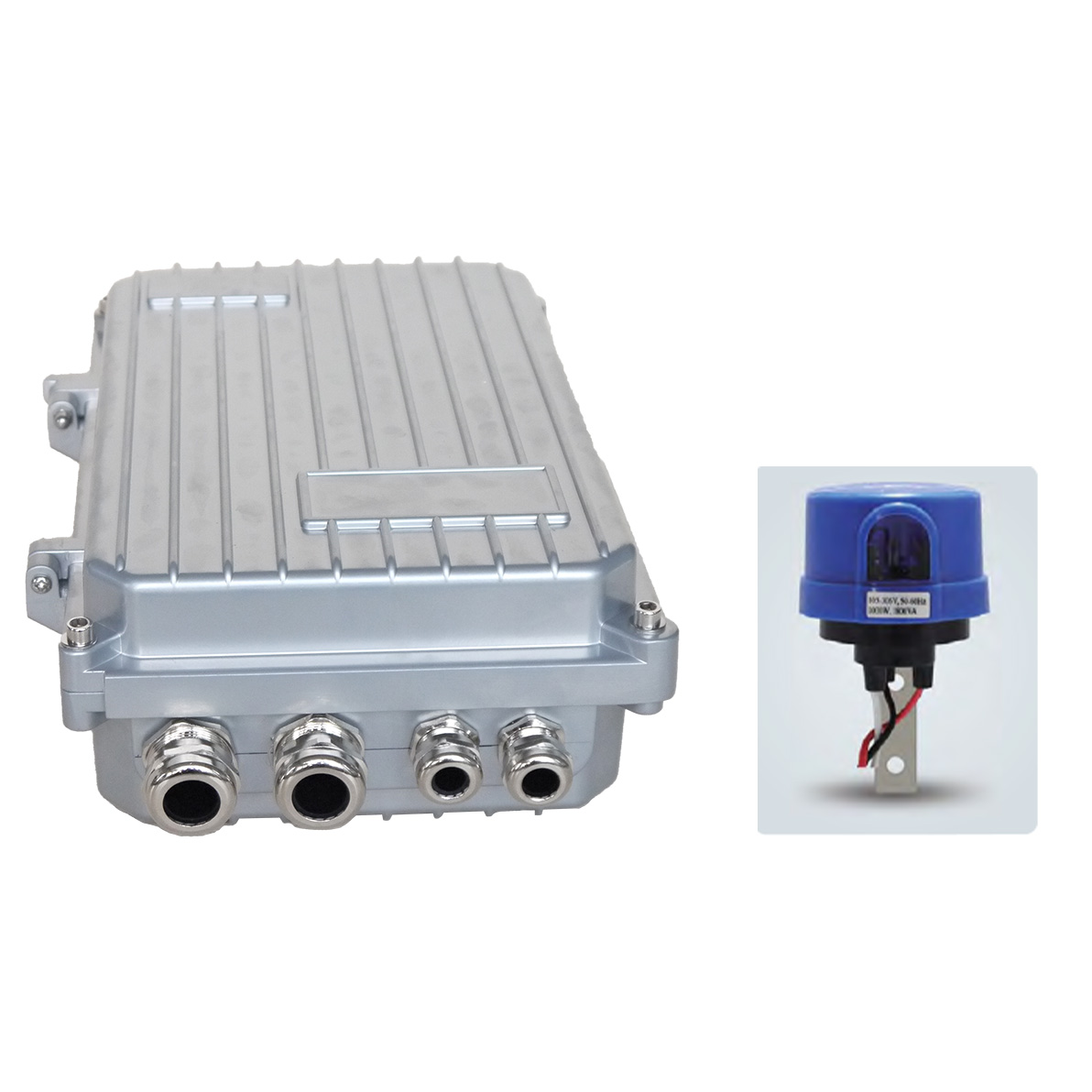

XBL06A Obstruction Light Monitoring Controller
Short Description:
Altiglo XBL06A Obstruction Light Monitoring Control Box represents the next
generation of aviation safety technology, offering unparalleled monitoring
and control capabilities for aircraft warning lights. With its advanced features,
user-friendly interface and durable construction, this device provides a
comprehensive solution for enhancing safety and compliance in aviation
operations. Whether for a single tower or a large-scale facility, our monitoring
control box is the ideal choice for ensuring the reliability and effectiveness of
aircraft warning light systems.
Input&output voltage: 48VDC
Number of Light output: 4*contact relay for lights, power and photocell
Photocell sensitivity: 70~100Lux
Photocell bypass: Auto/Manual adjustable
Alarm type: NO&NC,Dry contact alarm
Materials: Aluminum alloy
IP protection: IP65
Item: XBL06A
POWER SUPPLY - Input voltage: 48V DC
Downloads
- SKU
XBL06A- Category
- Controller & Monitoring
- Item: XBL06A
- POWER SUPPLY - Input voltage: 48V DC
- Numbers of Light Output: 4
- Max.Load/Output: 1A
- Flash Rate: Steady/Flashing(20FPM), adjustable
- Photocell sensitivity: 70-100 Lux
- Photocell bypass: Auto/Manual adjustable
- Alarm type: NO & NC, dry contact relay
| Item | XBL06A |
|---|---|
| POWER SUPPLY - Input voltage | 48V DC |
| Numbers of Light Output | 4 |
| Max.Load/Output | 1A |
| Flash Rate | Steady/Flashing(20FPM), adjustable |
| Photocell sensitivity | 70-100 Lux |
| Photocell bypass | Auto/Manual adjustable |
| Alarm type | NO & NC, dry contact relay |
| Numbers of Alarm Output | 4*contact relay for lights, power and photocell |
| Surge Protection | 2KV |
| MECHANICAL STRUCTURE - Enclosure Type | Outdoor |
| Enclosure Material | Aluminum alloy |
| Protection | IP65 |
| Net Weight | 3.5kg |
| Dimension (H*W*Depth) | 350*300*120mm |
| Operation Temperature | -30°C~+70°C |
| Operation Humidity | 0-95% RH non-condensing |
| Mounting | Wall mounting or U-bolt mounting |
Typically specified for Controller & Monitoring projects.
Common use cases include aircraft warning light manufacturers, aircraft warning lights, aviation lights, aviation warning light, aviation warning lights, controller & monitoring.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
