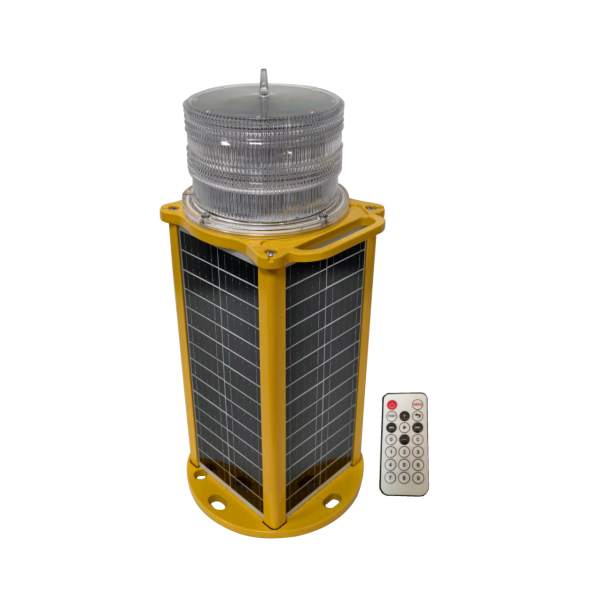

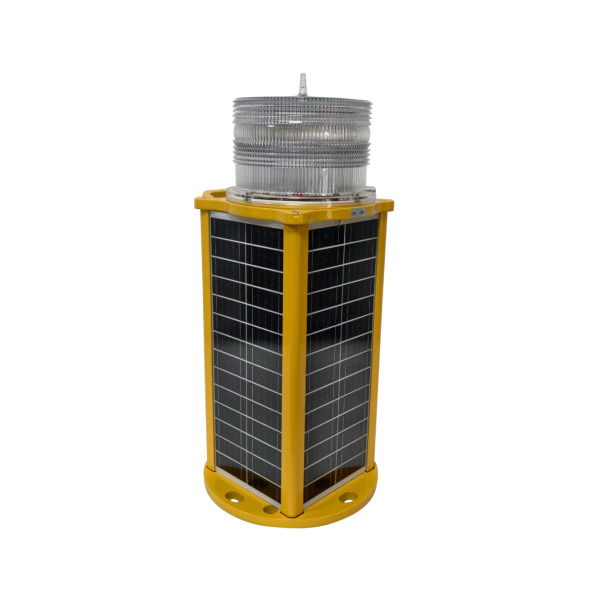

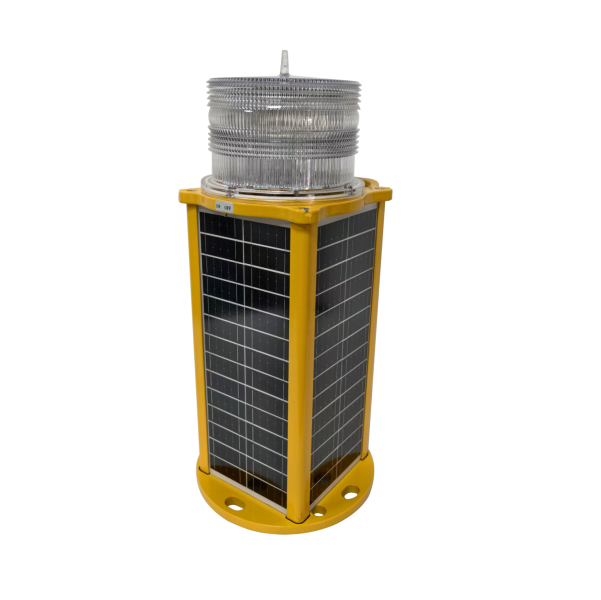

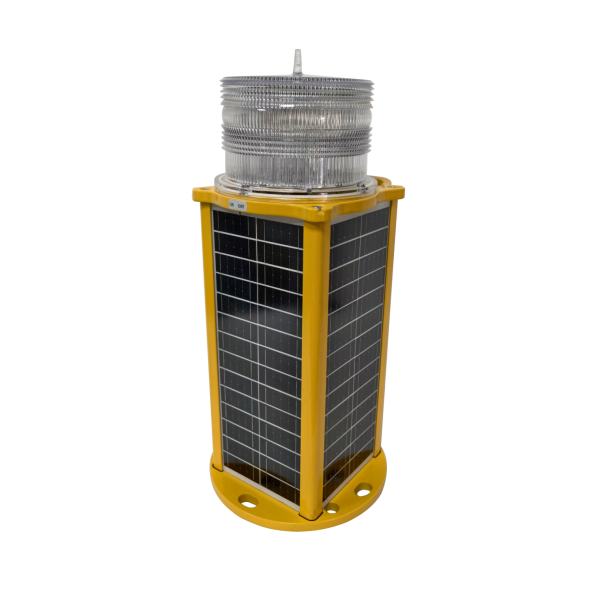

SB20-RF IALA 256 Kinds Of Flashing Rate Solar Powered Marine Light(7-10nm)

Short Description:

Product name: LED Solar Powered Marine Light Steady Type or Flashing Type(Optional)

Solar panel: High efficient mono-crystalline silicon 18V/4*6 Watts

Battery capacity: 12V14AH rechargeable Lithium battery

Nominal Night Range: 7-10nm

Autonomy: 25 days (flashing); 8 days(fixed)

Materials: Lens-PC Body-Aluminum

Item: SB20-RF

ELECTRICAL CHARACTERISTIC - Visible distance: 7-10NM

Downloads

Send Enquiry

Item	SB20-RF
ELECTRICAL CHARACTERISTIC - Visible distance	7-10NM
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern(optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	25 days(flashing), 8 days(steady burning)
Alarm type	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V/4*6W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V14Ah Lithium battery
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP68
Weight	9.8KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas	PSH≥3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
Atmospheric Transparency Coefficient	0.85
OTHERS - Warranty	2 years
