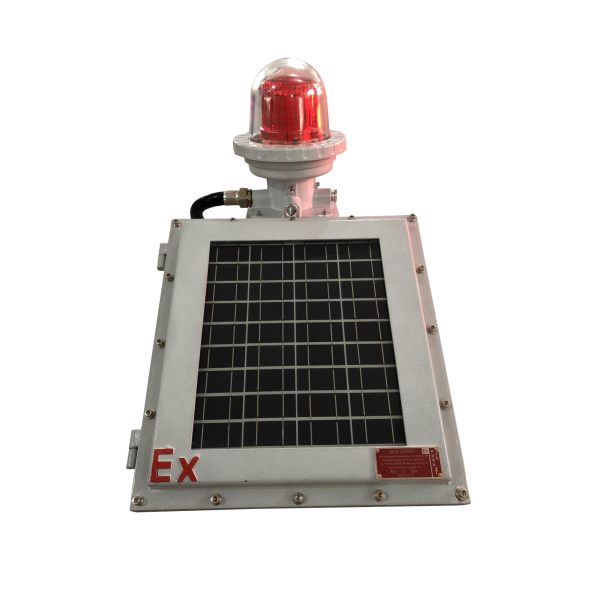

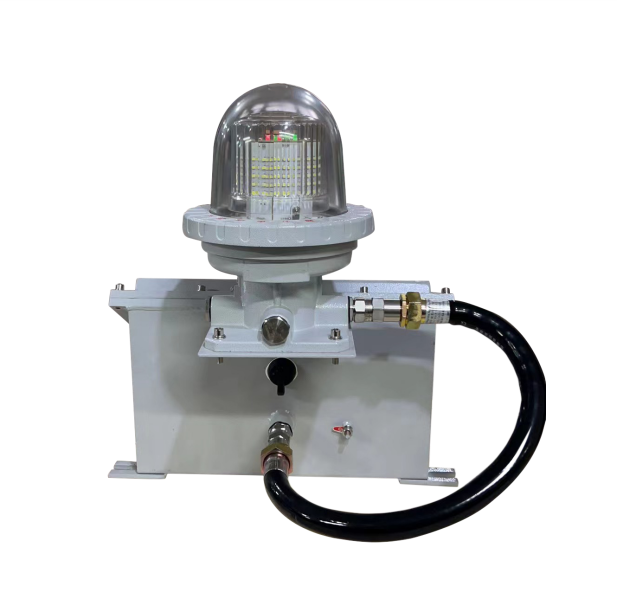

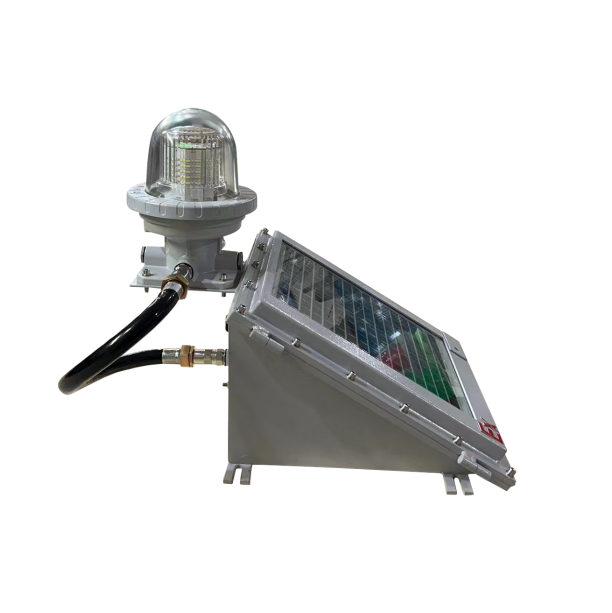

VX-HB60 Explosion proof Solar Powered Marine Light(7-10NM)

VX-HB60 Explosion proof Solar Powered Marine Light(7-10NM) - Image 3

Short Description:

Altiglo VX-HB60 Explosion Proof Solar Marine Light is specifically engineered to withstand hazardous and potentially explosive atmospheres. With its rugged construction,sustainable operation, and exceptional performance, it sets a new standard for safety and efficiency in marine lighting solutions and is the ideal solution for marine facilities where safety is a top priority.Its reliable performance and low maintenance requirements also make it an ideal choice for remote and inaccessible locations where regular maintenance is difficult or costly.

Power consumption:40W

Visible distance:>7-10NM

Autonomy:20 days(flashing), 10 days(steady burning)

Item: VX-HB60

ELECTRICAL CHARACTERISTIC - Visible distance: > 7-10NM

Downloads

Send Enquiry

SKU: VX-HB60
Category: Explosion-Proof Marine Lantern, LED Marine Lanterns

Item	VX-HB60
ELECTRICAL CHARACTERISTIC - Visible distance	> 7-10NM
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Optional r ed, w hite, yellow, green and blue
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern (optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Power consumption	40W
Photocell sensitivity	7 0 -100 Lux
Autonomy	20 days(flashing), 10 days(steady burning)
Alarm type:	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18 V 25 W
Solar Efficiency	14%
Battery capacity	VRLA, 12 V/ 7.5 Ah
Battery replacement	R eplaceable
MECHANICAL STRUCTURE - Lens	Tempered glass
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP66
Weight	50 KG
Operating Temperature	– 3 0℃ ~ + 70 ℃
Storage Temperature	– 30 ℃ ~ + 55 ℃
Suitable areas:	Exde ‖ CT6/DIP A20 ， TA ， T6
Corrosion grade	WF1*WF2
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	1 years
