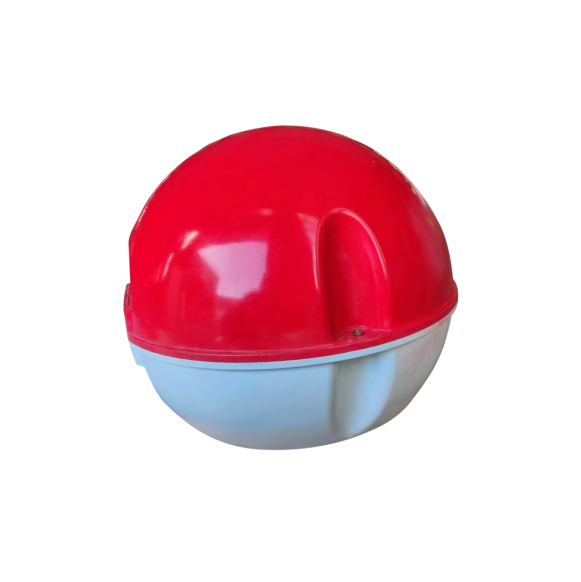

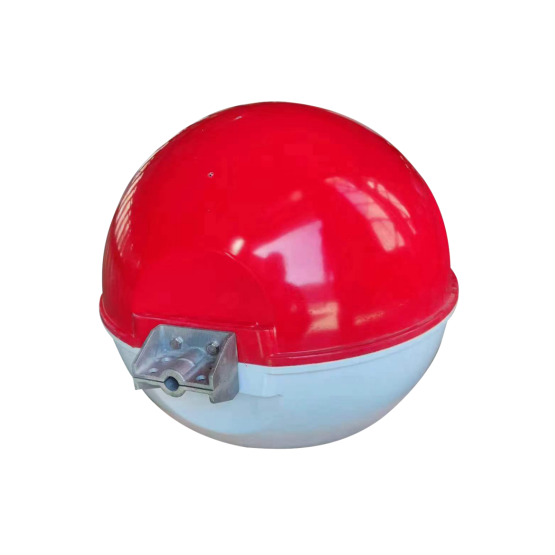

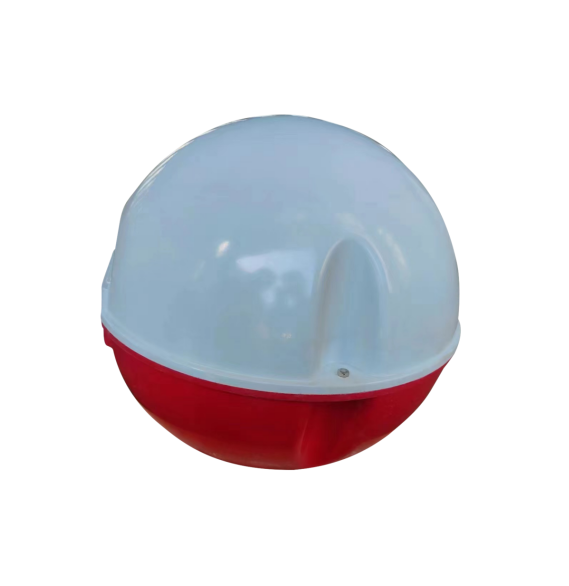

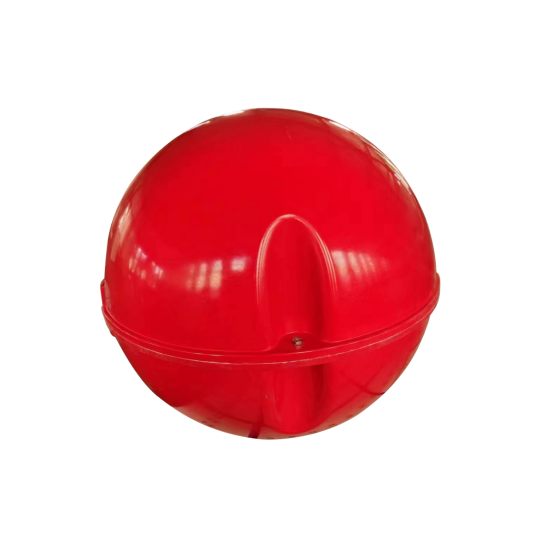

YZ08 Ariel Marker Ball(Polycarbonate)

YZ08 Ariel Marker Ball(Polycarbonate) - Image 3

YZ08 Ariel Marker Ball(Polycarbonate) - Image 4

Short Description:

Altiglo YZ08 Ariel Marker Ball for High Voltage Lines is a game-changing product that combines practical functionality with enhanced safety features. Its innovative design and proven effectiveness make it a valuable addition to any power line network, providing increased visibility, improved hazard identification, and overall peace of mind for utility companies and power line contractors.With its proven track record and widespread adoption by leading utility companies, this marker ball has earned a reputation for quality and performance in the field.

Diameter: 1250 m from the air and 350 m from the ground

Material: Fiberglass Reinforced Polymer

Suitable for 35KV-1000V voltage transmission line

Suitable for diameter 6.5-55mm conductor

Optional:preformed armor rods and reflective strips

Item: YZ08

Operation - Visible Distance: 1250 m from the air and 350 m from the ground.

Downloads

Send Enquiry

SKU: YZ08
Category: Transmission Line Warning

Item	YZ08
Operation - Visible Distance	1250 m from the air and 350 m from the ground.
Voltage Range	35KV-1000KV
Conductor Diameter	6.5-55mm
Mechanical Structure - Color	Orange, Red, White, Orange-White, Red-White(optional)
Sphere body	FRP(Fiberglass Reinforced Polyester)
Tensile strength	≥128Mpa
Bending strength	≥230Mpa
Cable Clamp	Aluminum alloy
Fastener	Stainless steel 304
Diameter	600mm
Weight	5.0KG
Thickness	3mm
Drain Holes	Yes
Temperature	-40~+90℃
Optional	• Preformed Armor Rods • Reflective Strip
Warranty	1 year
Series - Diameter (mm)	Reflective Strip
YZ08 - 600	RS
-	R/W(Red/White)
