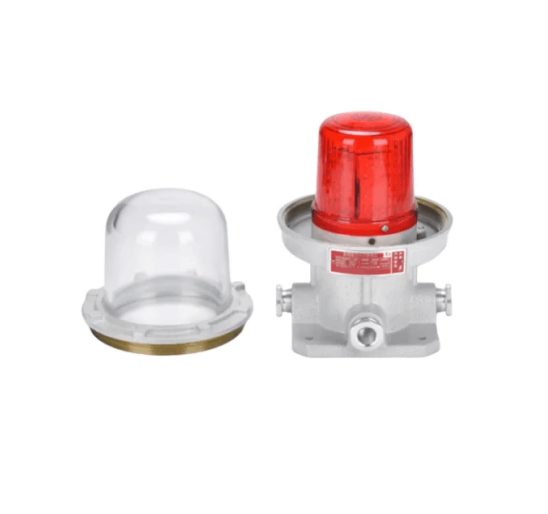

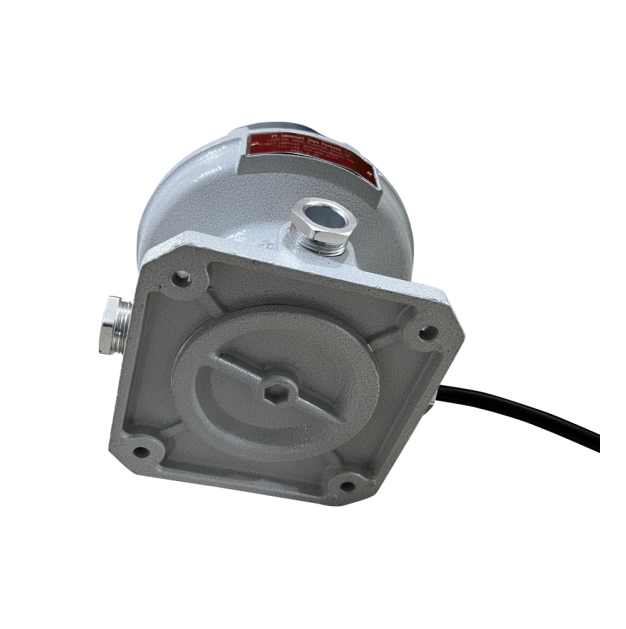

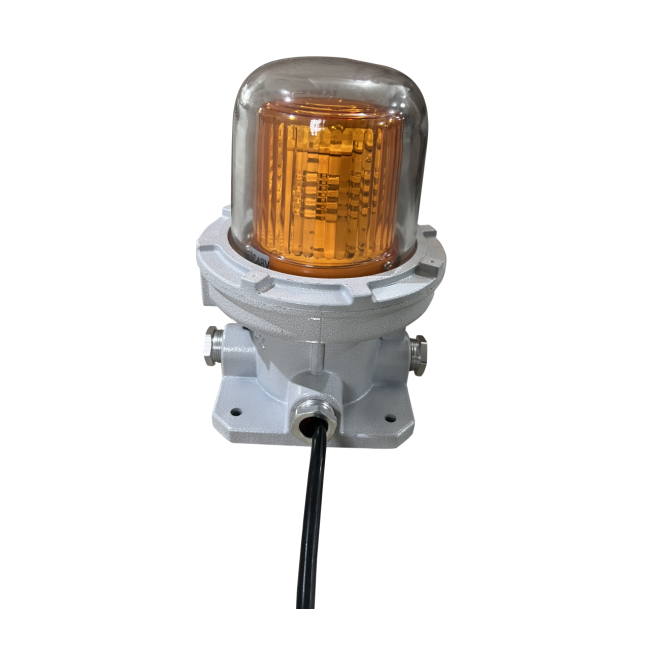

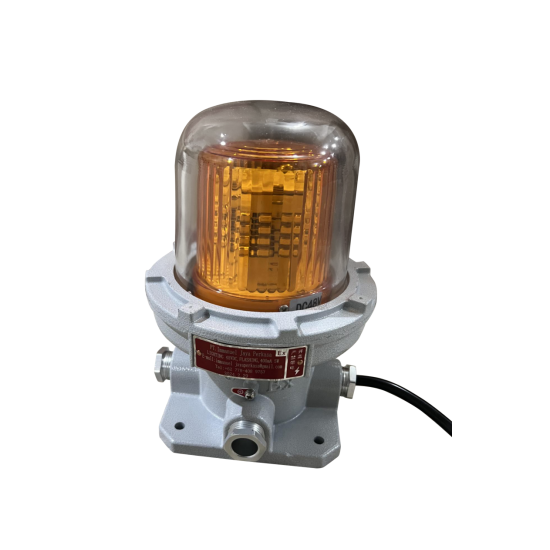

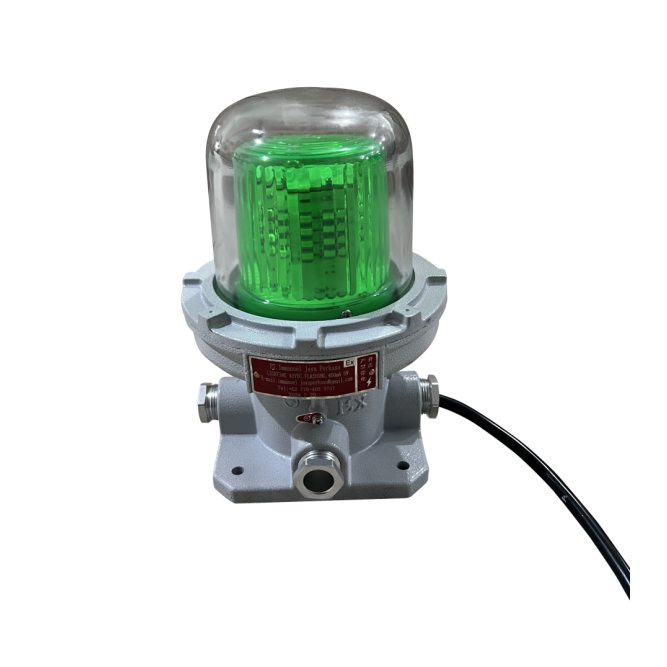

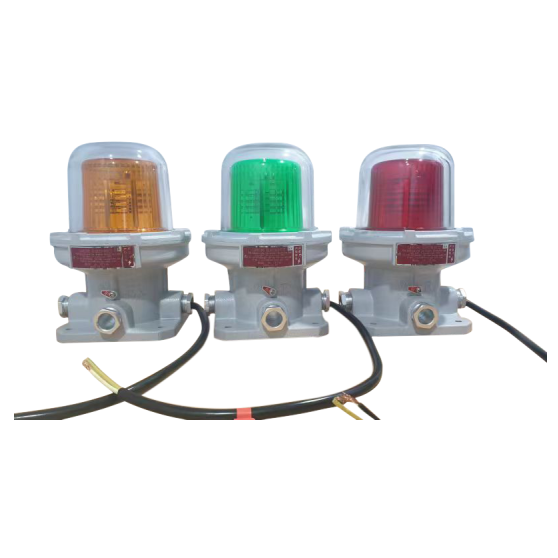

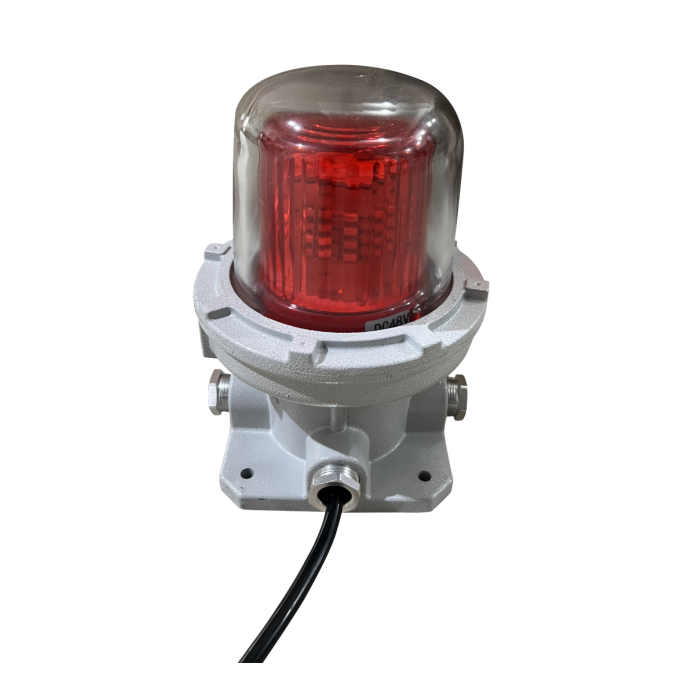

VX-RB90 Explosion proof LED Marine Light(3-5NM)

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 3

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 4

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 5

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 6

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 7

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 8

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 9

VX-RB90 Explosion proof LED Marine Light(3-5NM) - Image 10

Short Description:

When it comes to safety at sea, you need equipment that you can rely on. Altiglo VX-RB90 Explosion Proof LED Marine Signal Light is designed to provide reliable and durable performance in the harshest marine environments, ensuring that you can navigate the seas with confidence. Whether you’re navigating through rough waters or working in hazardous conditions, our signal light will ensure that you can be easily seen and stay safe at all times. Invest in the safety of your crew and vessel with our top-of-the-line marine signal light.

Power consumption:10W

Visible distance:>3-5NM

Woke mode:Flashing or steady burning

Item: EX-RB 1 0

ELECTRICAL CHARACTERISTIC - Visible distance: > 3 - 5 NM

Downloads

Send Enquiry

SKU: VX-RB
Category: Explosion-Proof Marine Lantern, LED Marine Lanterns

Item	EX-RB 1 0
ELECTRICAL CHARACTERISTIC - Visible distance	> 3 – 5 NM
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Optional red , white, yellow, green and blue
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern(optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Photocell sensitivity	70-100 Lux
POWER SUPPLY - Working voltage	85-265VAC, 9V-30VDC, 30-60VDC;
Power consumption	1 0W
MECHANICAL STRUCTURE - Lens	Tempered glass
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP66
Weight	2.8 KG
Operating Temperature	-40℃ ~ +70℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas:	Exde‖CT6/DIP A20 ， TA ， T6
Corrosion grade	WF1*WF2
Wind speed	Up to 150mph(240kph)
Wiring Cable gland	G3/4″ entry cable gland, suitable for 10mm-14mm cable
Light Dimension(mm ）	170X 23 0X 170
Mounting hole(mm)	105X105
Packing dimension(mm ）	300× 19 0× 20 0
OTHERS - Warranty	1 years
