Low Intensity Series Solar Powered Series, Solar-Powered Series
Short Description:

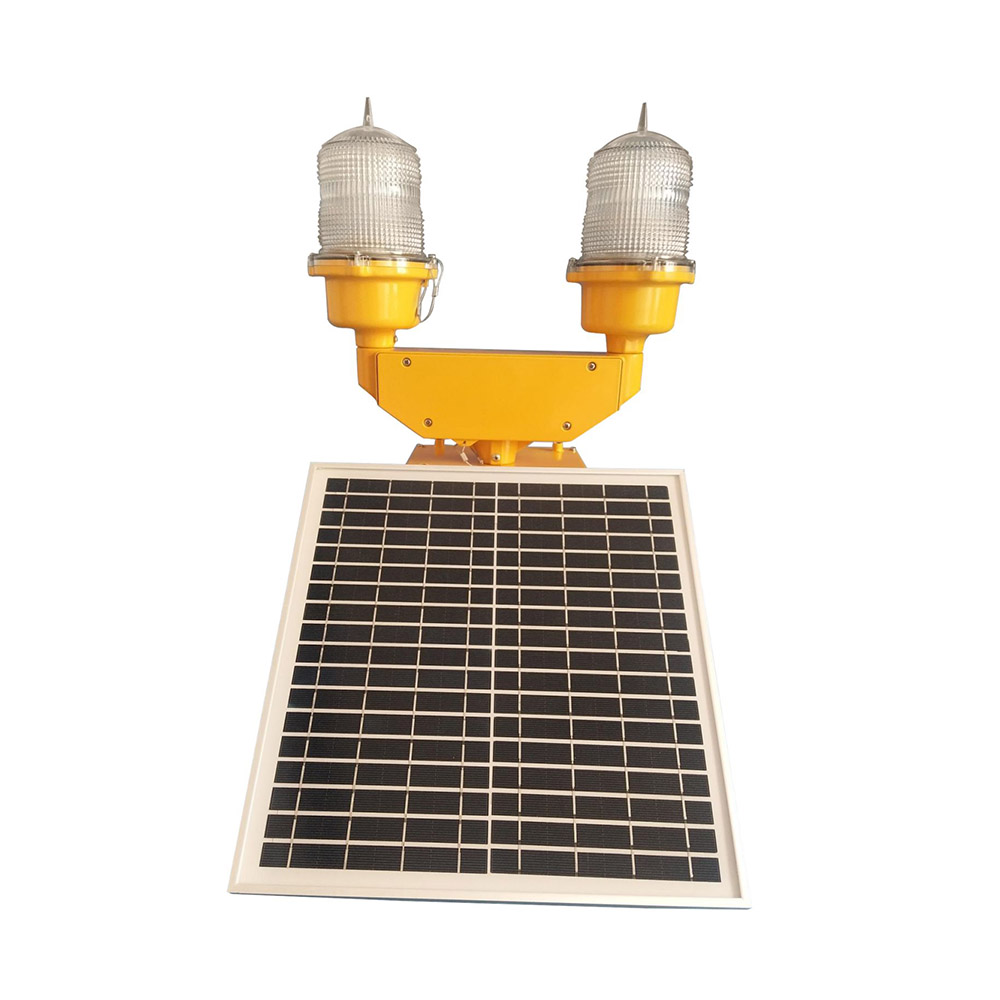

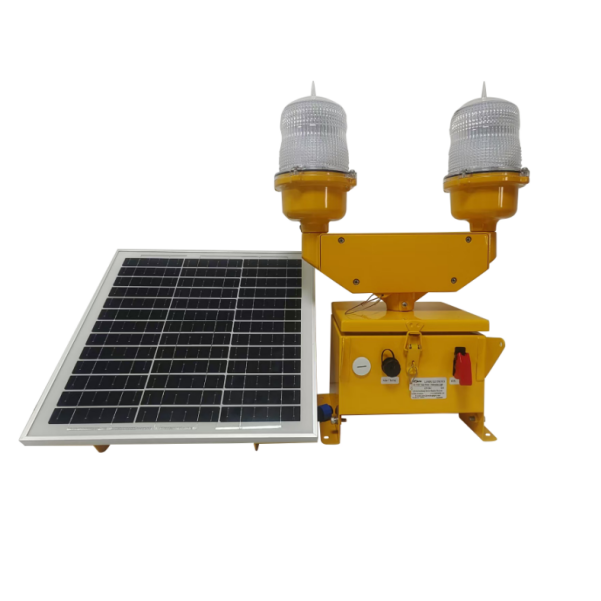

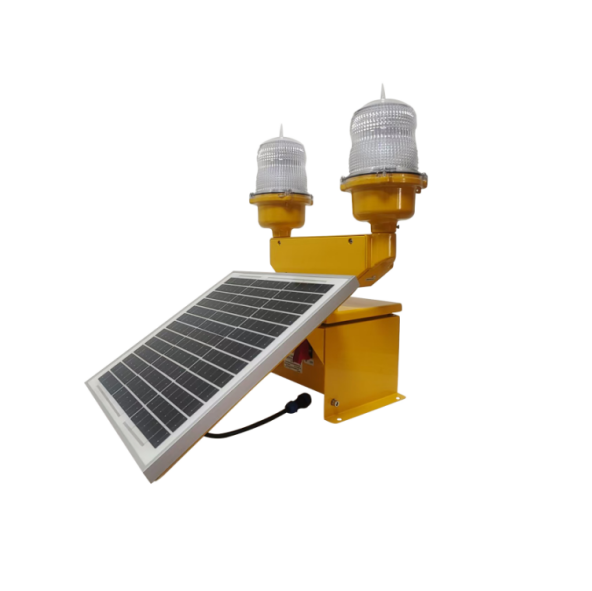

Whether you are looking to improve aviation safety for a high-rise building, tower, crane, or any other tall structure, Altiglo WLT90D Dual solar powered aircraft warning light is the perfect choice. With its reliable and energy-efficient operation, durable construction, and easy installation, you can trust that our warning light will provide the visibility and warning signals needed to keep air traffic and surrounding areas safe and secure.Choose our twin solar aircraft warning light for high structures, and experience the peace of mind that comes with reliable and sustainable aviation safety.
Solar panel: High efficient mono-crystalline silicon 18V 20Watts
Battery capacity: 12V 12AH rechargeable valve regulated lead acid battery
Intensity: >10cd
Autonomy: 7 days (flashing); 3-4 days(fixed)
Suitable areas: PSH=4
Materials: Lens-PC Body-Aluminum
Item - WLT90DSS: WLT90DST
ELECTRICAL CHARACTERISTIC - Effective Intensity: >10 Candela
Downloads
WLT90D-LED-DUAL-LOW-INTENSITY-SOLAR-POWERED-OBSTRUCTION-LIGHTTYPE-A| Item - WLT90DSS | WLT90DST |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >10 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red (for obstruction). White, yellow, green and blue are available for other applications |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Operation mode - Service+Service | Service+Standby |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Autonomy | 7 days(flashing) |
| Alarm type | NO & NC, dry contact relay(optional) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 18V 20W |
| Solar Efficiency | 21% |
| Battery capacity | VRLA, 12V/12Ah |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP65 |
| Weight | 13KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Suitable areas | PSH=4 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO dry contact relay |
Typically specified for Low Intensity Series Solar Powered Series, Solar-Powered Series projects.
Common use cases include aircraft warning light, avation light, aviation lamp, aviation light for tower crane, building aviation light, low intensity series.
