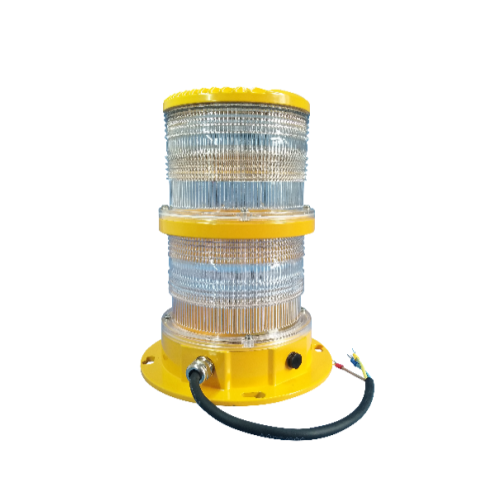

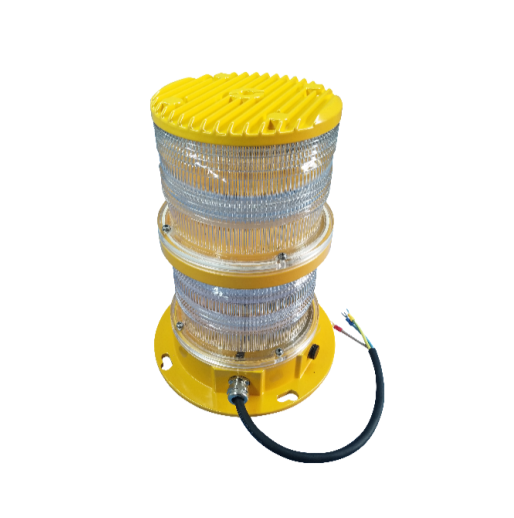

AG8AT L865 Medium Intensity Obstruction Light(Type A)

Short Description:

Whether you’re looking to enhance the safety of your high structure or ensure compliance with aviation regulations, Altiglo L865 AG8AT medium intensity type A obstruction light is the ideal solution. With its advanced features, reliable performance, and compliance with ICAO standards, you can trust this warning light to provide the critical safety signals needed for air traffic in the vicinity of high structures.

Input voltage: 85-265VAC, 50/60 Hz;12VDC; 24VDC or 30-60VDC;

Effective Intensity: ( Night) 2000cd (±25%);(Daytime)20000cd (±25%)

LED Lifespan: 100,000 Hours

Materials: Lens-PC; Body- Aluminum

Item: AG8AT

ELECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 20, 000cd+25%, Night: white 2, 000cd+25%

Downloads

Send Enquiry

SKU: AG8AT
Category: Medium Intensity Series, Type A Series Medium Intensity Series

Item	AG8AT
ELECTRICAL CHARACTERISTIC - Effective Intensity	Day: white 20, 000cd+25%, Night: white 2, 000cd+25%
Vertical Divergence	3 Degree
Horizontal out-put	360 Degree
LED Color	White&white
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Alarm type	NO & NC, dry contact relay
POWER SUPPLY - Input voltage	85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Power consumption	30W(Steady burning), 10W(Flashing)
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP65
Weight	5KG
OperatingTemperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Lightning protection level	15KV
Wire Connection mode	Prewired
Relative humidity	0-95% RH non-condensing
OTHERS - Wind speed	Up to 150mph(240kph)
Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization
