Elevated Heliport Lighting, Heliport Lighting

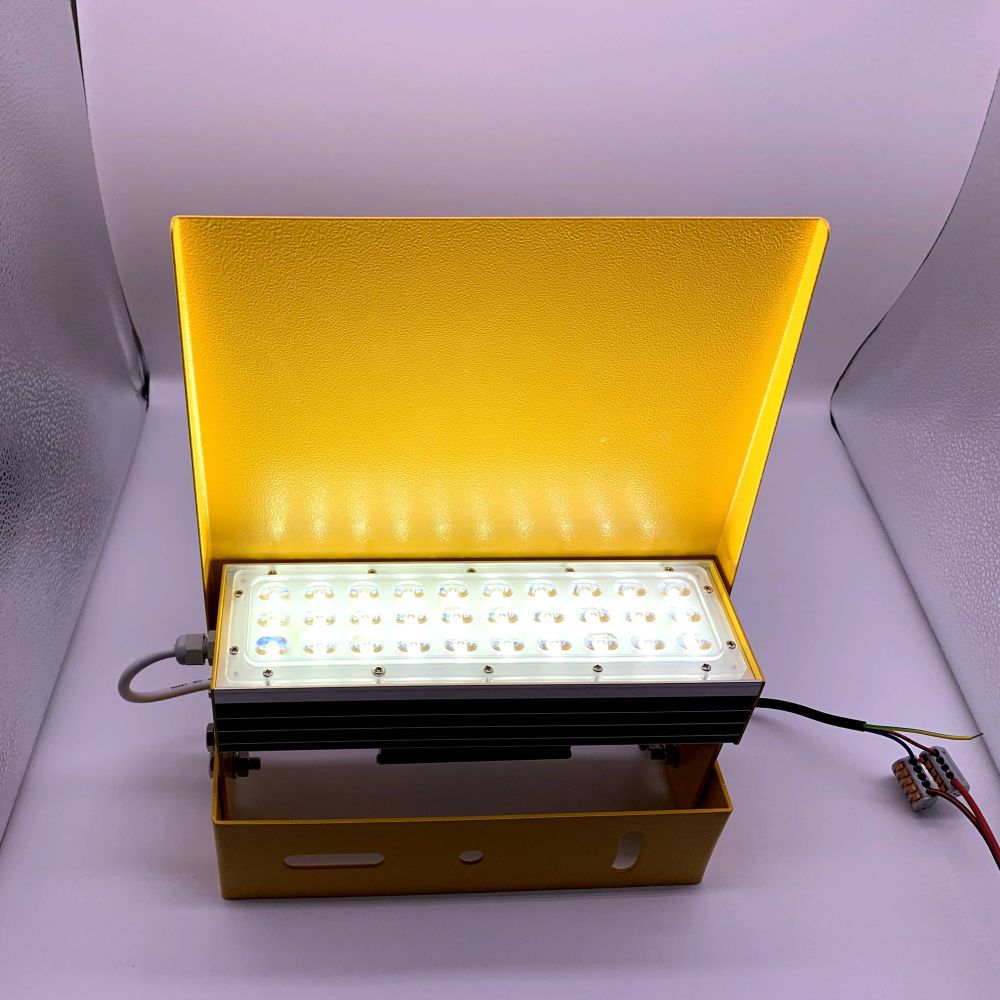

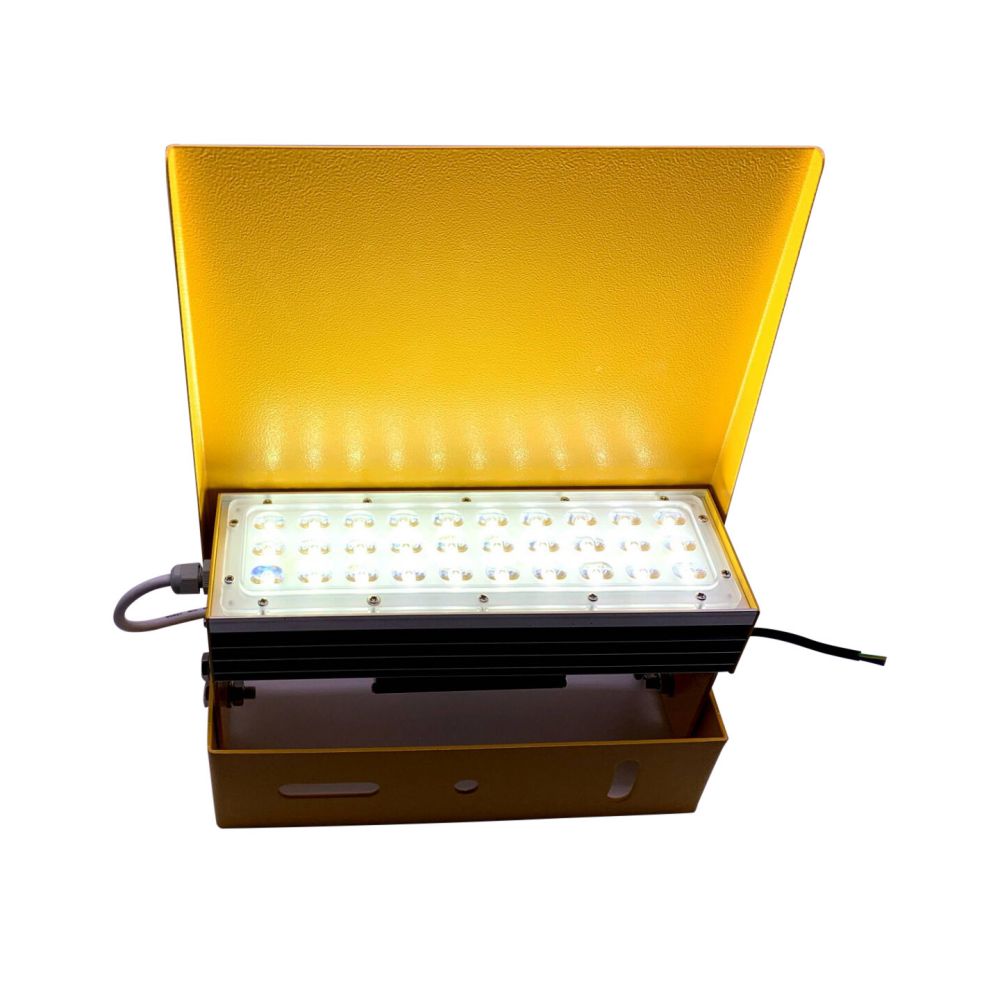

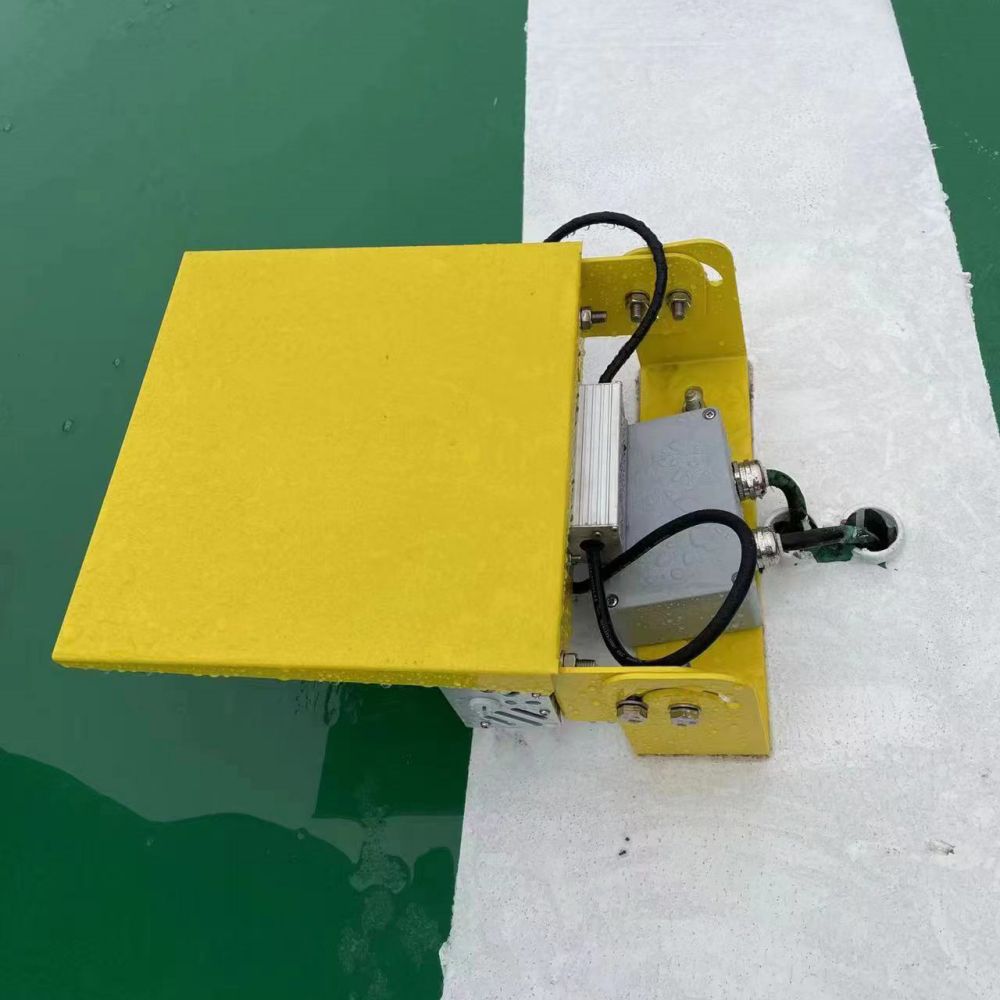

AS10 Heliport Flood Light
Short Description:
Product name: Heliport Flood Light
Power voltage: 220VAC, 48VDC，50~60Hz
Power Consumption:30W or 60W
Working mode: Steady Burning
Light source life：10000h
Materials:Lens-PC Body-Aluminum
LED Color:White
IP rate:IP66
Item: AS10
ELECTRICAL CHARACTERISTIC - Power voltage: 220VAC, 50~60Hz 48VDC
Downloads
- SKU
AS10- Category
- Elevated Heliport Lighting, Heliport Lighting
- Item: AS10
- ELECTRICAL CHARACTERISTIC - Power voltage: 220VAC, 50~60Hz 48VDC
- Light Source: High Power LED
- Optical structure: Reflective optical structure
- Power Consumption: 35W or 60W
- Light source life: 10000h
- OPERATION - Working mode: Steady Burning
- Luminous Flux: 4550Lm(35W) 7800Lm(60W)
| Item | AS10 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Power voltage | 220VAC, 50~60Hz 48VDC |
| Light Source | High Power LED |
| Optical structure | Reflective optical structure |
| Power Consumption | 35W or 60W |
| Light source life | 10000h |
| OPERATION - Working mode | Steady Burning |
| Luminous Flux | 4550Lm(35W) 7800Lm(60W) |
| Emitting Light Colors | White |
| MECHANICAL STRUCTURE - Body Material | Yellow powder coated aluminum |
| Height above ground | Lower than 175mm |
| Overall Size(mm) | 364×278×155 |
| Installation size | 165mm-M13×3 |
| Weight | 3.8kg |
| IP Protection | IP66 |
| Temperature range | -30℃ ～ 70℃ |
| Net Weight | 3.5KG |
| Humidity | ＜ 95% |
| Altitude | ＜ 4500M |
| Wind resistance | 80 m/s |
| color temperature | 6000K |
| Other - Warranty | 2 years |
Typically specified for Elevated Heliport Lighting, Heliport Lighting projects.
Common use cases include elevated type, heliport lighting, products.
