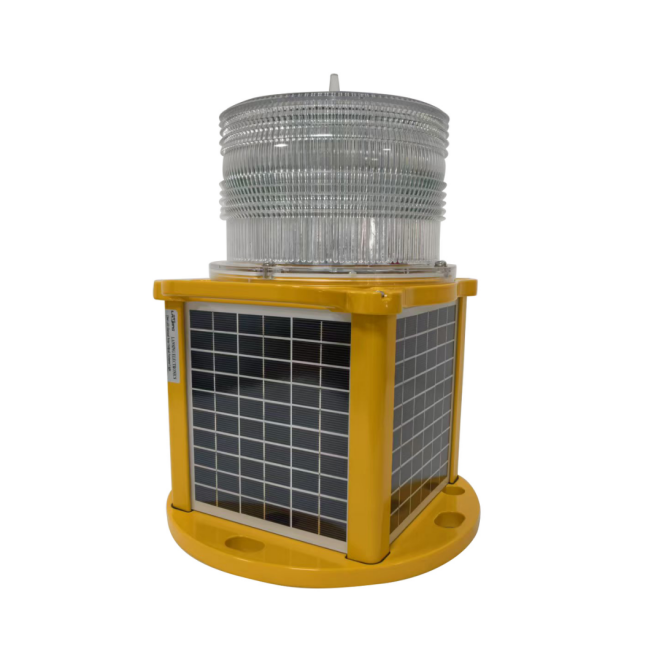

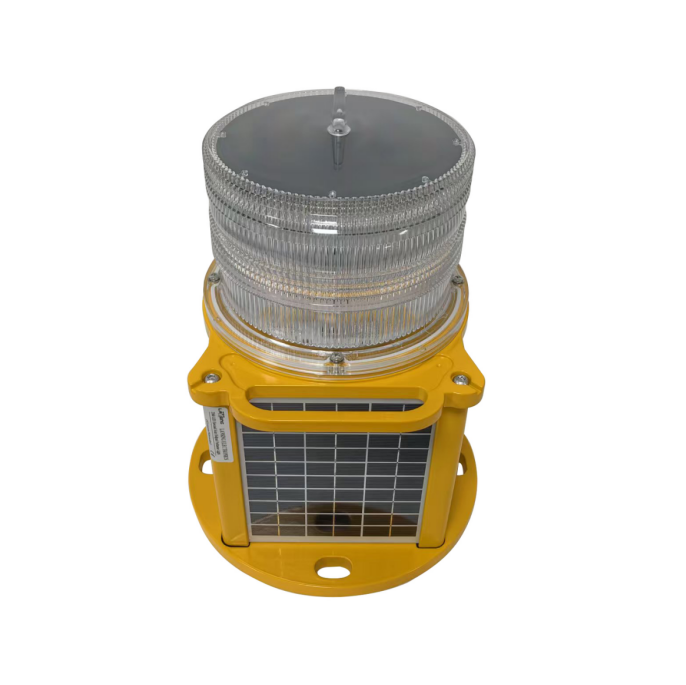

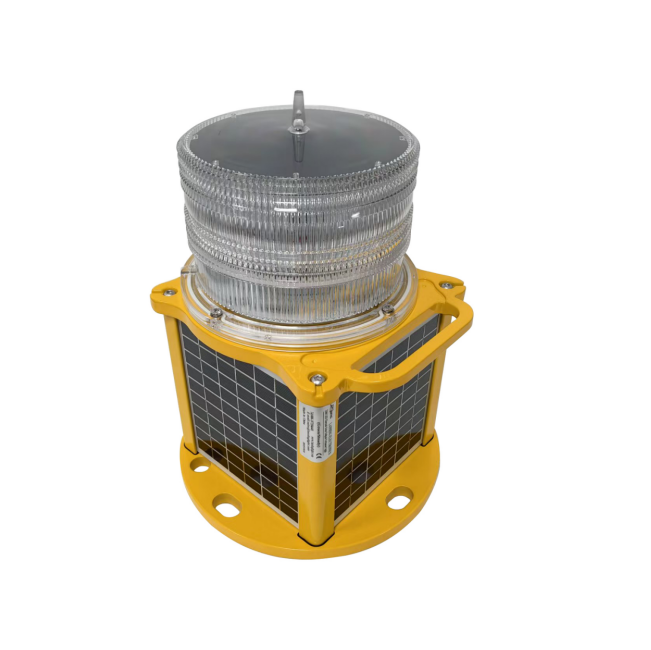

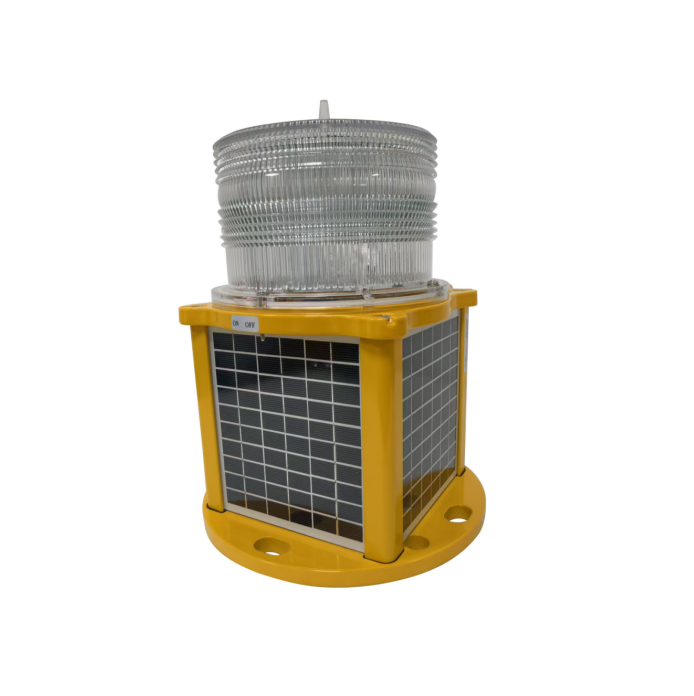

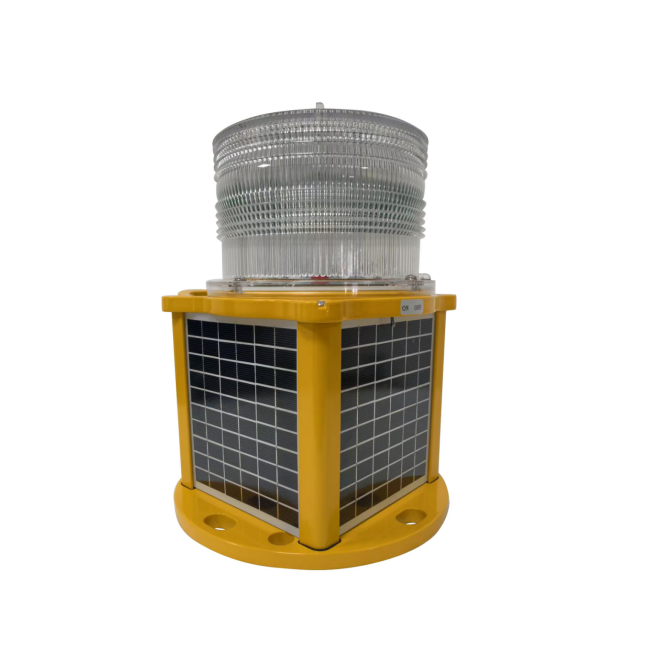

AS40 Solar Helipad Perimeter Light
Short Description:
Product name:Solar Helipad Perimeter Light
Solar panel: High efficient mono-crystalline silicon 10 Watts
Battery capacity: 12V10AH rechargeable Lithium battery
Intensity: >30cd
Autonomy: >80 hours
Materials:Lens-PC Body-Aluminum
Item: AS40
ELECTRIACL CHARACTERISTIC - Effective Intensity: >30Candela
Downloads
- SKU
AS40- Category
- Portable Rechargeable Solar Type, Solar Lighting, Solar Lighting Portable Rechargeable Solar Type, Solar Powered Helipad Lights For Heliport Use
- Item: AS40
- ELECTRIACL CHARACTERISTIC - Effective Intensity: >30Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Green
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Steady burning
- Photocell sensitivity: 70-100 Lux
| Item | AS40 |
|---|---|
| ELECTRIACL CHARACTERISTIC - Effective Intensity | >30Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Green |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| Photocell sensitivity | 70-100 Lux |
| Autonomy | 7 days |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 18V/10W |
| Solar Efficiency | 14% |
| Battery capacity | High-efficiency 12V10Ah Lithium battery |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP67 |
| Weight | 5.2KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Suitable areas | PSH≥3 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| Dimension | ∅234mm×234mm×314.5mm |
| OTHERS - Warranty | 2 years |
Typically specified for Portable Rechargeable Solar Type, Solar Lighting, Solar Lighting Portable Rechargeable Solar Type, Solar Powered Helipad Lights For Heliport Use projects.
Common use cases include helicopter pad lights, helipad flat lights, helipad landing lights, helipad lighting, helipad lights price, heliport airport beacon light.
