Portable Battery Heliport, Portable Battery Powered

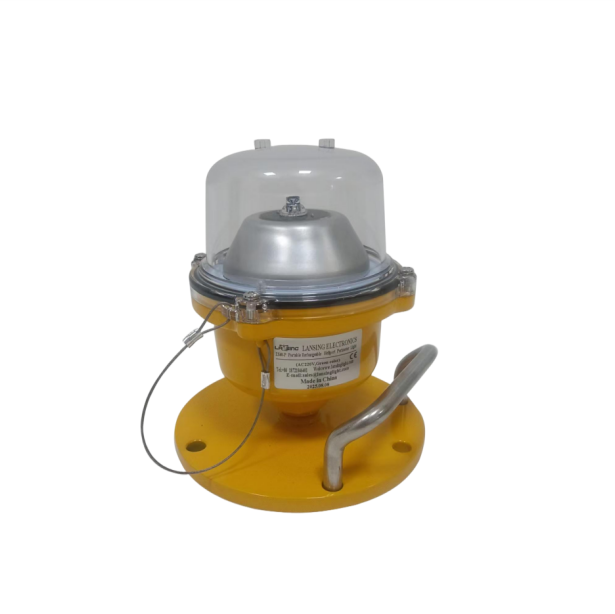

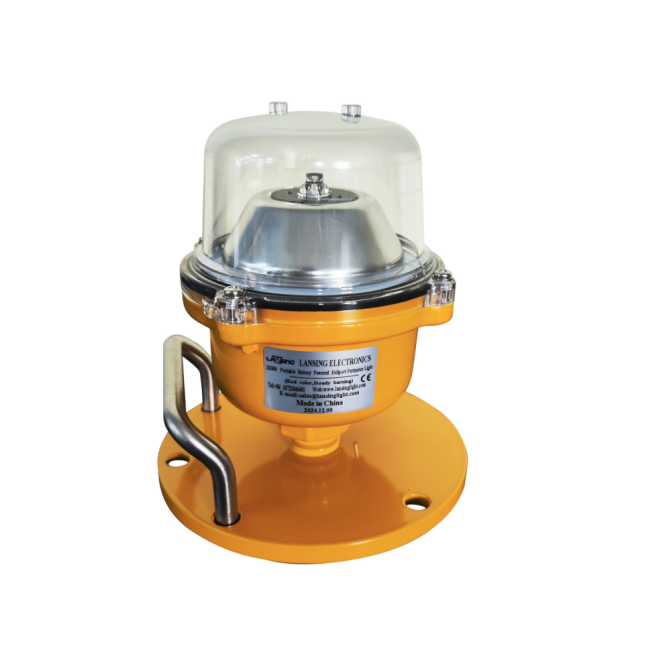

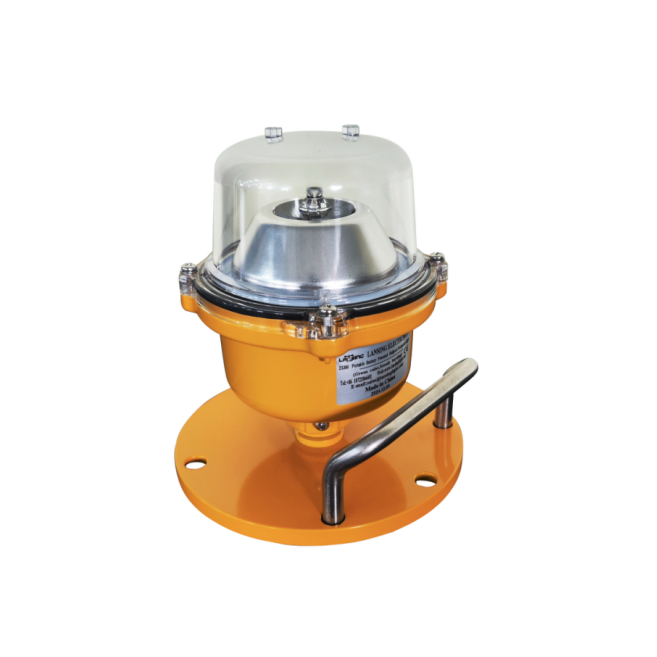

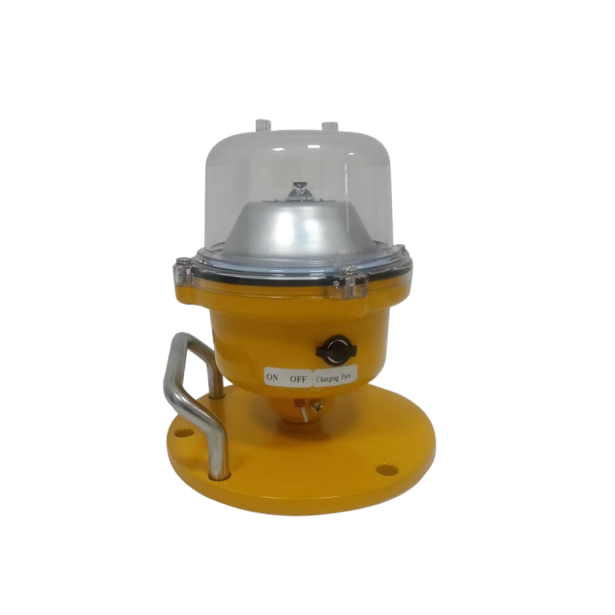

AS60-P Portable Rechargeable Heliport Perimeter Light
Short Description:
Altiglo AS60-P portable rechargeable heliport perimeter light offers a reliable, versatile, and cost-effective solution for ensuring the safety and visibility of helicopter landings in remote or temporary helipads. Its lightweight, portable, and durable design makes it an ideal choice for a wide range of applications, including emergency response, military operations, and offshore facilities. With its advanced LED technology, rechargeable battery, and easy installation, our elevated heliport perimeter light is the ultimate choice for enhancing aviation safety and efficiency.
Power supply: 3.7V8AH Battery or AC220V
Rated power: 5W LED
Life Time:100,000 Hours
Effective Intensity:30cd Materials:Lens-PC; Body-Aluminum
LED color: Green
Item: AS60-P
ELECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
Downloads
- SKU
AS60-P- Category
- Portable Battery Heliport, Portable Battery Powered
- Item: AS60-P
- ELECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
- LED Type: Regular or NVG IR LED
- Horizontal out-put: 360 Degree
- LED Color: Green
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Steady burning
- POWER SUPPLY - Battery parameters: 3.7V8AH
| Item | AS60-P |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >30Candela |
| LED Type | Regular or NVG IR LED |
| Horizontal out-put | 360 Degree |
| LED Color | Green |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Battery parameters | 3.7V8AH |
| Power consumption | 5 W (Steady burning) |
| Charging power supply | AC220V, 50Hz |
| Autonomy | More than 60 hours |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Dimensions | Φ160* 175 mm |
| Bolt mounting dimensions | Φ140*M10(3 mounting holes) |
| IP Ingress | IP66 |
| Weight | 2.4KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
Typically specified for Portable Battery Heliport, Portable Battery Powered projects.
Common use cases include battery powered lighting, elevated heliport perimeter light, helicopter pad lights, helipad flat lights, helipad led lights, helipad lighting suppliers.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
