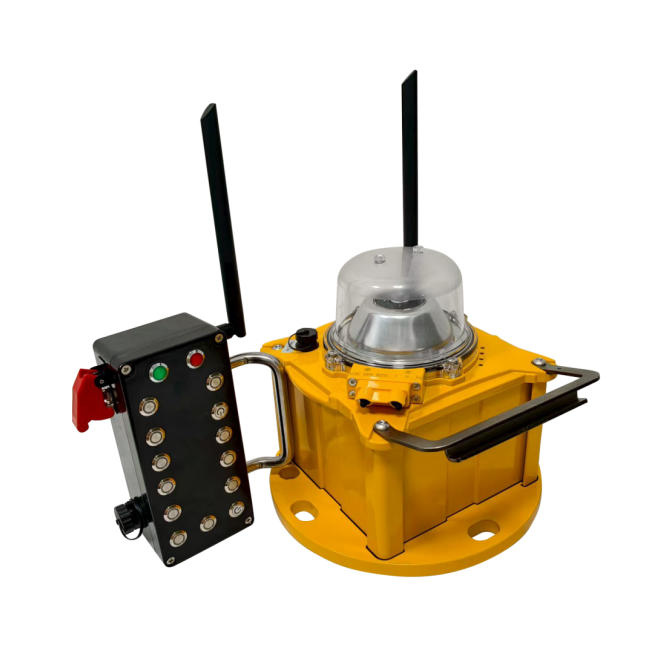

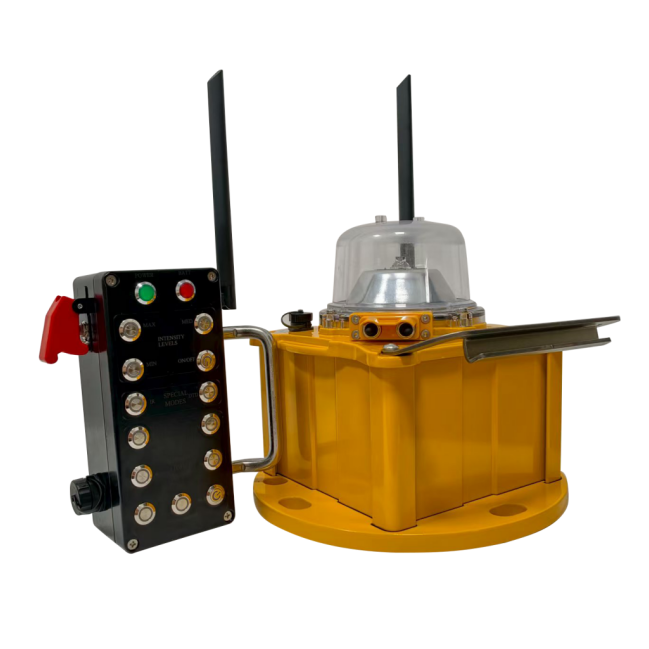

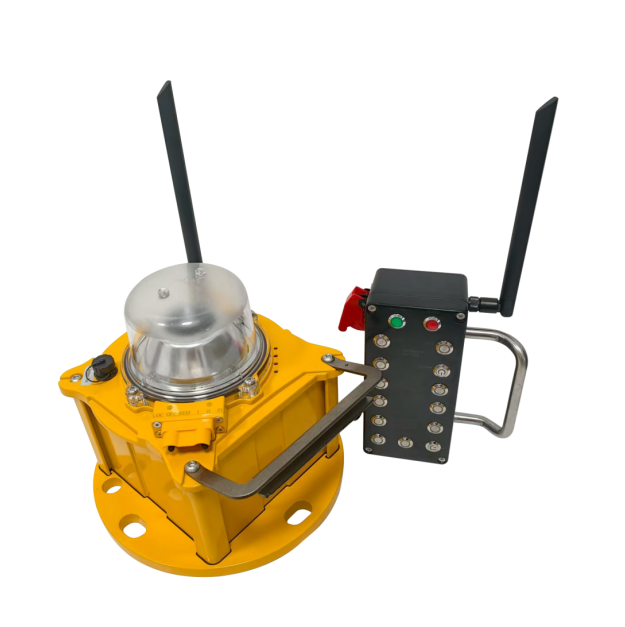

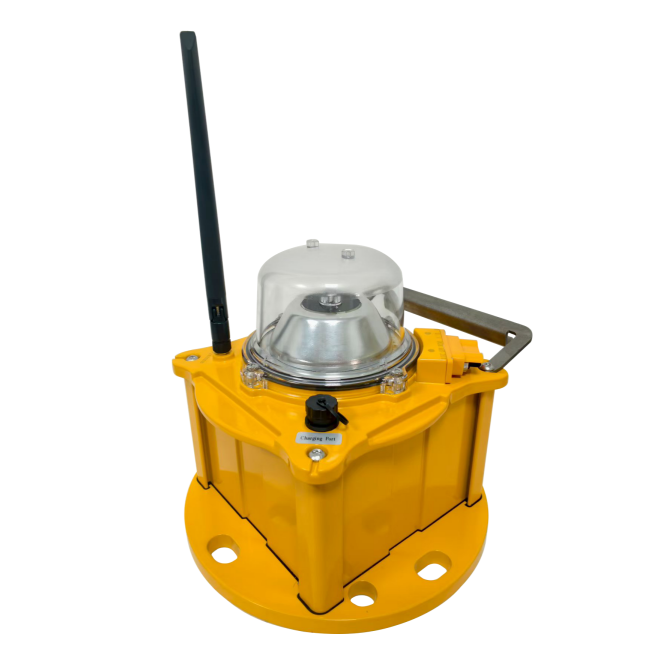

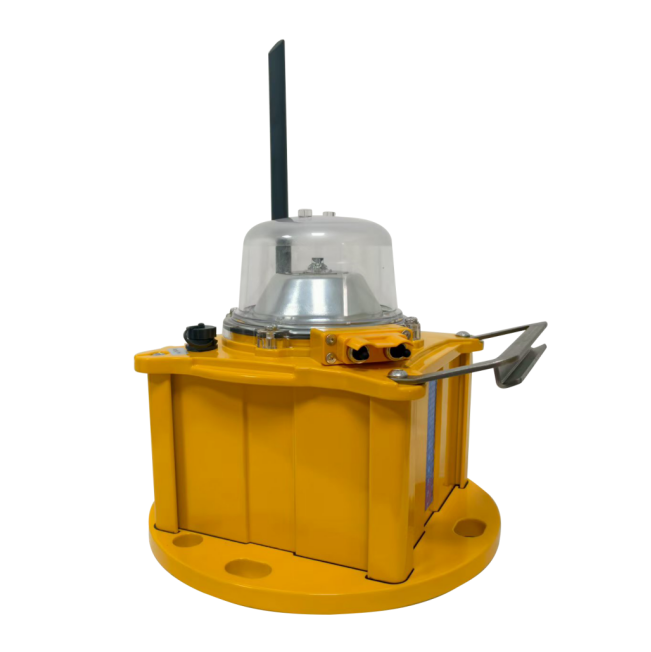

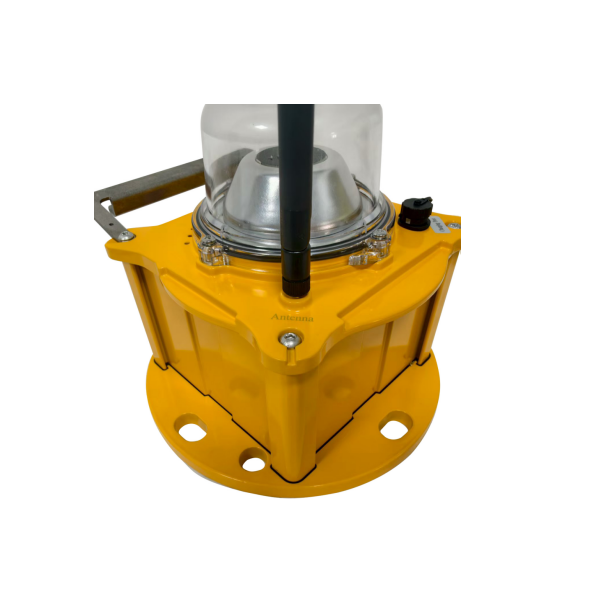

AS610 Battery-portable helipad lighting system with intelligent charger
Item: AS610
E LECTRICAL CHARACTERISTIC - Intensity: Light intensity adjustable from10%, 30% and 100%
Downloads
- SKU
AS610- Category
- Portable Battery Heliport, Portable Battery Powered
- Item: AS610
- E LECTRICAL CHARACTERISTIC - Intensity: Light intensity adjustable from10%, 30% and 100%
- Vertical Divergence: 0~90 Degree
- Horizontal out-put: 360 Degree
- LED Color: Omnidirectional White or Green
- LED Lifespan: 100, 000 Hours
- Light source: Ultra High Intensity LED
- OPERATION - Woke mode: Steady burning
| Item | AS610 |
|---|---|
| E LECTRICAL CHARACTERISTIC - Intensity | Light intensity adjustable from10%, 30% and 100% |
| Vertical Divergence | 0~90 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Omnidirectional White or Green |
| LED Lifespan | 100, 000 Hours |
| Light source | Ultra High Intensity LED |
| OPERATION - Woke mode | Steady burning |

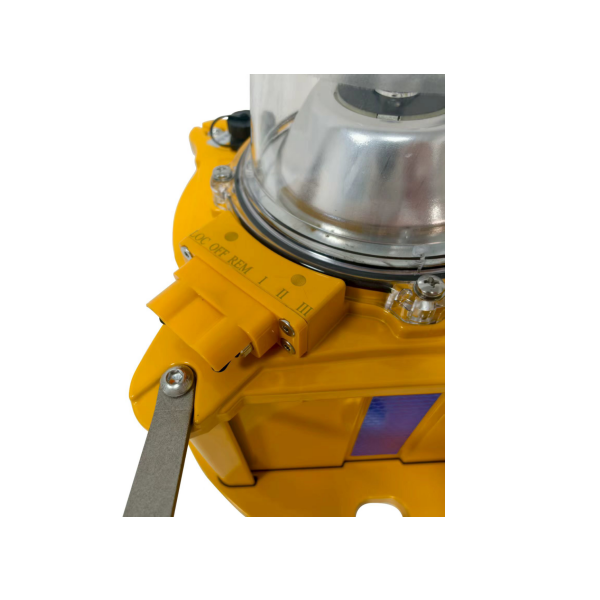

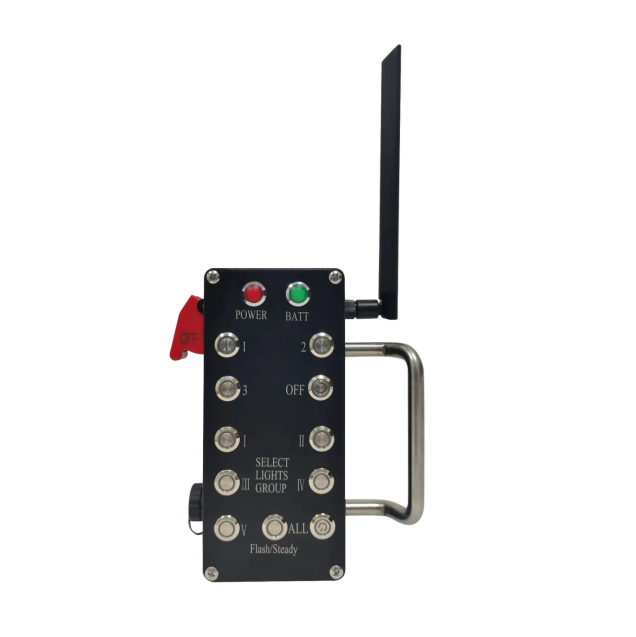

| Control | Wireless and manual |
| Range of remote to closest light | 3-5km |
| POWER SUPPLY - Battery parameters | VRLA-12V/12Ah |
| Battery status indicator | 4 led indications |
| Power consumption | 4W |

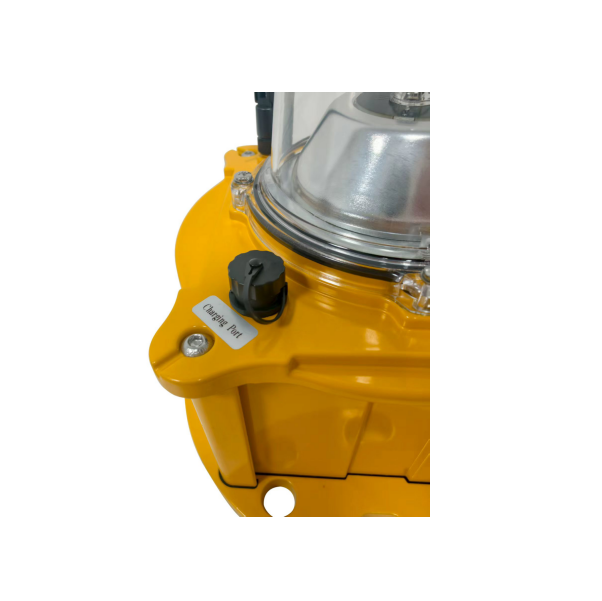

| Charging system(optional) | Drop in Charging – in the battery box |
| Charging power supply | AC110- 240V, 50Hz |
| MECHANICAL S TRUCTURE - Lens | Polycarbonate |
| Body | High strength color impregnated polycarbonate |
| Paint color | Yellow or Green(Optional) |
| Dimensions | Ø220 ＊ 230MM |
| IP Ingress | IP66 |
| Light Weight | 5.35KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
Typically specified for Portable Battery Heliport, Portable Battery Powered projects.
Common use cases include battery powered lighting, elevated heliport perimeter light, helipad landing lights, helipad lighting, helipad lighting system, helipad lights.
