Portable Battery Heliport, Portable Battery Powered

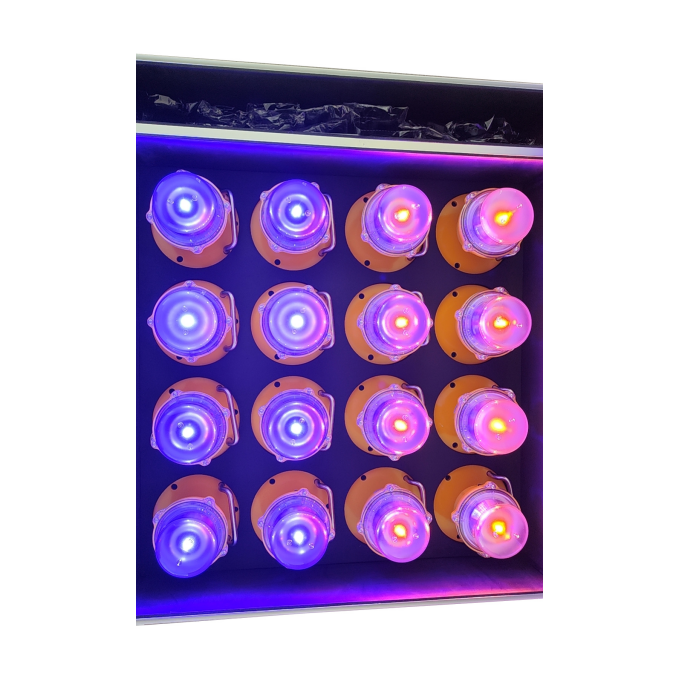

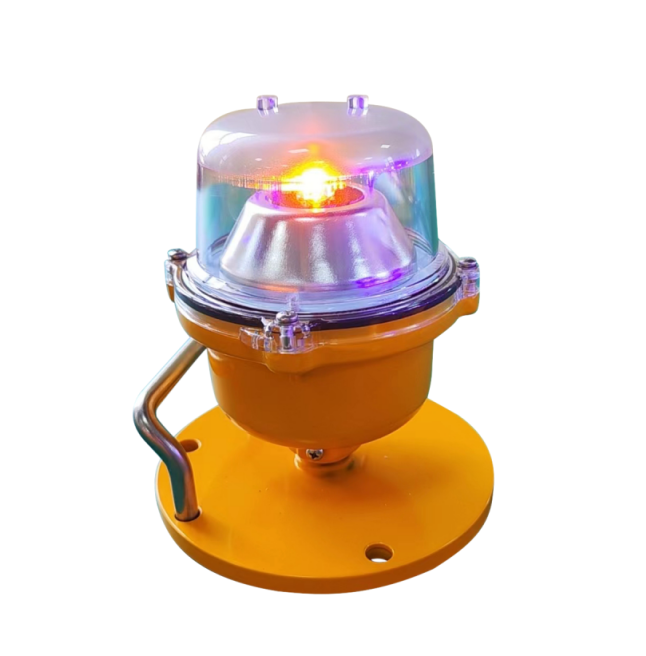

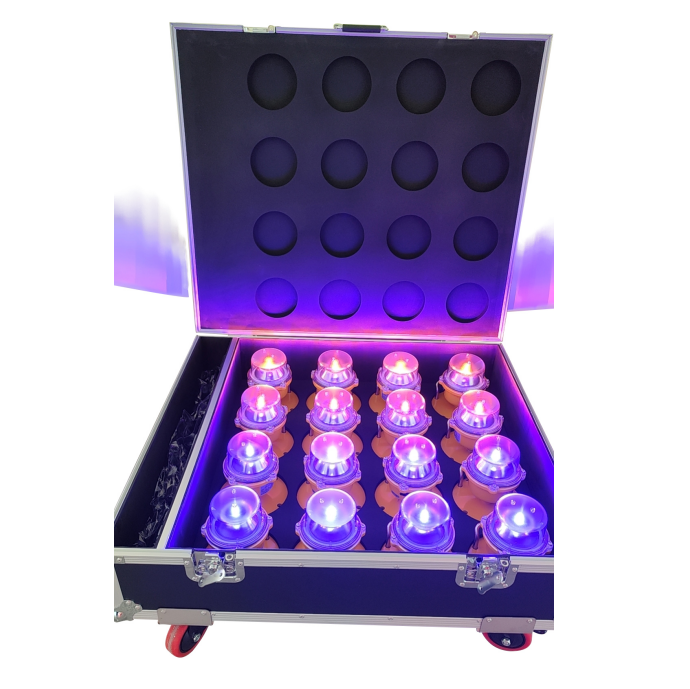

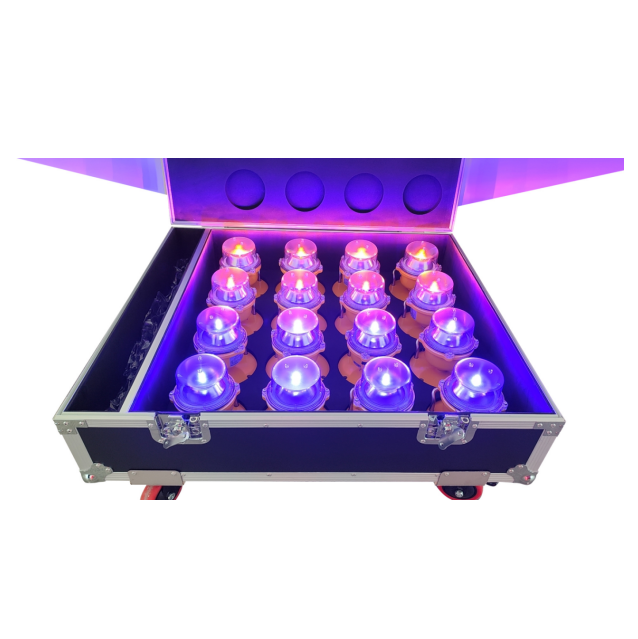

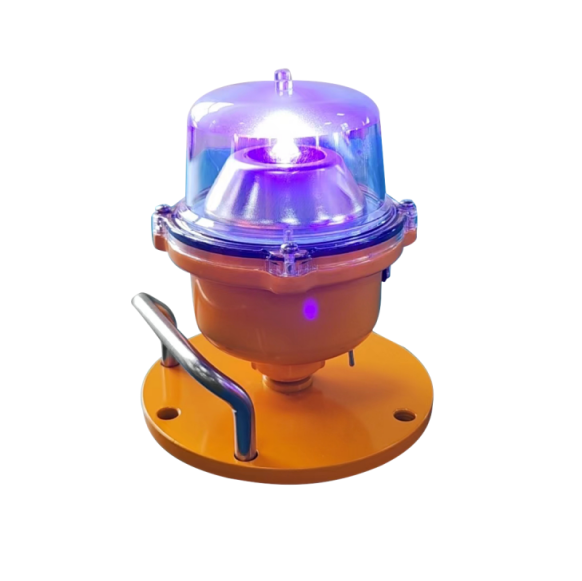

AS680 Military use Portable Battery Powered Heliport Light Kits
Short Description:
Altiglo QCL680 LED Portable Battery Powered Helipad Light Kits are the ultimate choice for military heliport lighting needs, offering unmatched performance, portability, and durability. With their advanced LED technology and versatile design, these lights are a valuable asset for ensuring safe and effective helicopter operations in military settings.
LED Lifespan:100,000 Hours
Power consumption:5W (Steady burning)
Charging power supply: AC220V,50Hz
Item: AS680
ELECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
Downloads
- SKU
AS680- Category
- Portable Battery Heliport, Portable Battery Powered
- Item: AS680
- ELECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Blue or Yellow
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Steady burning
- POWER SUPPLY - Battery parameters: 3.7V8AH
| Item | AS680 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >30Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Blue or Yellow |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Battery parameters | 3.7V8AH |
| Power consumption | 5 W (Steady burning) |
| Charging power supply | AC220V, 50Hz |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Dimensions | Φ160* 175 mm |
| Bolt mounting dimensions | Φ140*M10(3 mounting holes) |
| IP Ingress | IP66 |
| Weight | 2.4KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
Typically specified for Portable Battery Heliport, Portable Battery Powered projects.
Common use cases include battery powered lighting, helicopter landing pad lights, helicopter pad lighting, helicopter pad lights, helideck light, helideck status light system.
