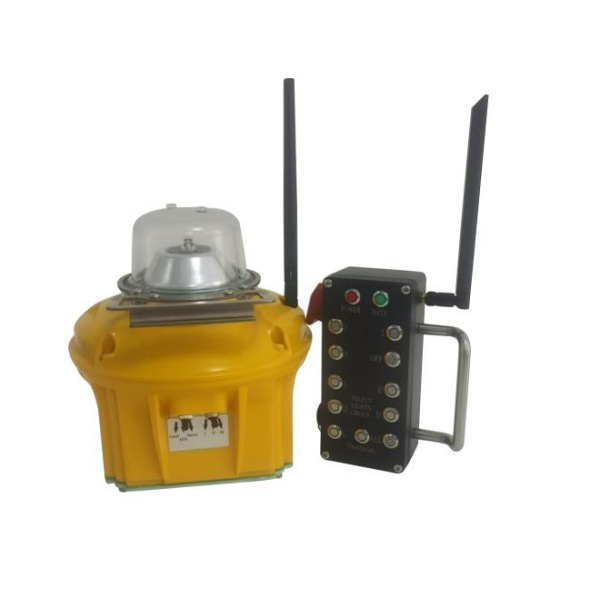

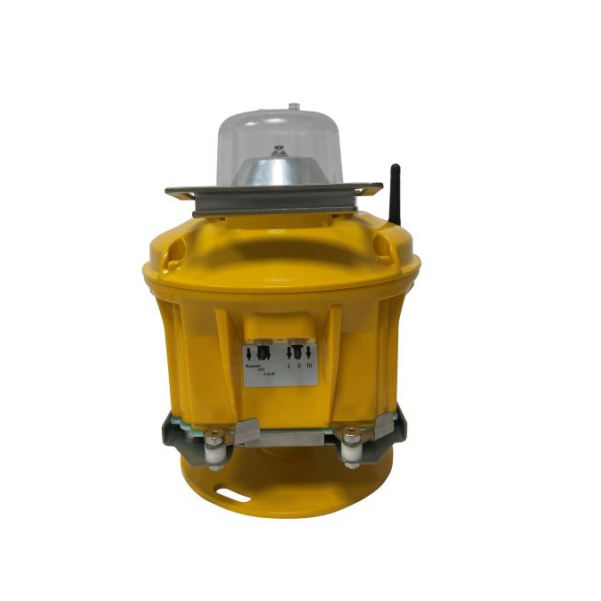

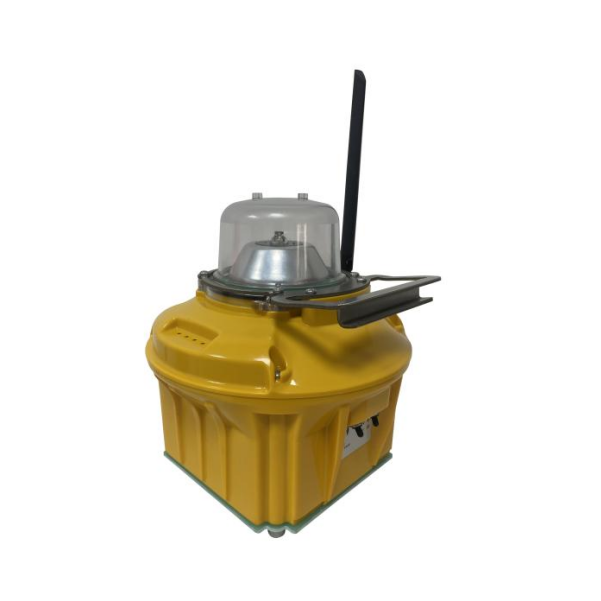

AS690-RF Portable Radio Controlled Battery Powered Heliport Light kits
Short Description:
Altiglo AS690-RF Portable radio controlled battery powered LED helipad light kits are designed specifically for heliport applications. This innovative lighting solution is perfect for both temporary and permanent installations, ensuring that your helipad is always visible and safe for helicopter landings and takeoffs, regardless of the time of day or weather conditions.Invest in safety and visibility with our portable LED helipad light kits. Ensure that your helipad is always ready for action, providing peace of mind for pilots and ground crews alike.
Battery parameters：VRLA-12V/12Ah
Power consumption：5W
Charging power supply：AC110- 240V,50Hz
Item - AS690-W-RF: AS690-G-RF
E LECTRICAL CHARACTERISTIC - Effective Intensity: >30 Candela
Downloads
- SKU
AS690-RF-PORTABLE-RADIO-CONTROLLED-BATTERY-POWERED-HELIPORT-LIGHT-KITS- Category
- Heliport Lighting
- Item - AS690-W-RF: AS690-G-RF
- E LECTRICAL CHARACTERISTIC - Effective Intensity: >30 Candela
- Vertical Divergence - 10 Degree: 10 Degree
- Horizontal out-put - 360 Degree: 360 Degree
- LED Color - White: Green
- LED Lifespan - 100,000 Hours: 100, 000 Hours
- Autonomy - 45hrs(minimum intensity): 60hrs(minimum intensity)
- Intensity: Light intensity adjustable from10%, 30% and 100%
| Item - AS690-W-RF | AS690-G-RF |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | >30 Candela |
| Vertical Divergence - 10 Degree | 10 Degree |
| Horizontal out-put - 360 Degree | 360 Degree |
| LED Color - White | Green |
| LED Lifespan - 100,000 Hours | 100, 000 Hours |
| Autonomy - 45hrs(minimum intensity) | 60hrs(minimum intensity) |
| Intensity | Light intensity adjustable from10%, 30% and 100% |
| Vertical Divergence | 0~90 Degree |
| Horizontal out-put | 360 Degree |
| LED Color (optional) | White, green, yellow, red or blue |
| LED Lifespan | 100, 000 Hours |
| Light source | Ultra High Intensity LED |
| OPERATION - Woke mode | Steady burning |
| Control | Wireless and manual |
| Range of remote to closest light | 3-5km |
| POWER SUPPLY - Battery parameters | VRLA-12V/12Ah |
| Battery status indicator | 4 led indications |
| Power consumption | 5W |
| Charging system(optional) | Drop in Charging – in the battery box |
| Charging power supply | AC110- 240V, 50Hz |
| MECHANICAL STRUCTURE - Lens | Polycarbonate |
| Body | High strength color impregnated polycarbonate |
| Paint color | Yellow or Green(Optional) |
| Light Dimensions | Ø220 ＊ 230MM |
| IP Ingress | IP66 |
| Light Weight | 5.35KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Relative humidity | 0-95% RH non-condensing |
Typically specified for Heliport Lighting projects.
Common use cases include heliport lighting, portable rechargeable & solar type, products.
