Short Description:

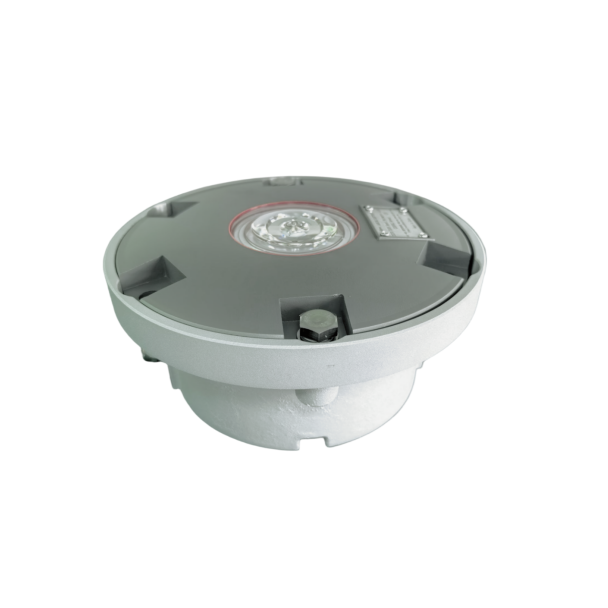

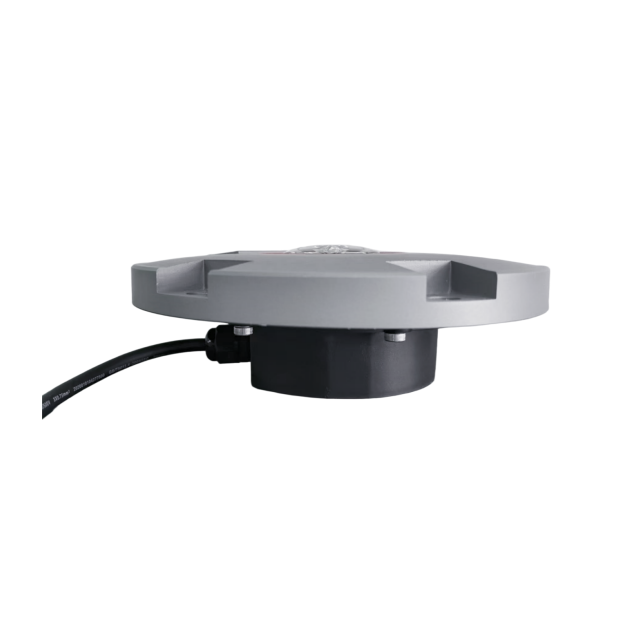

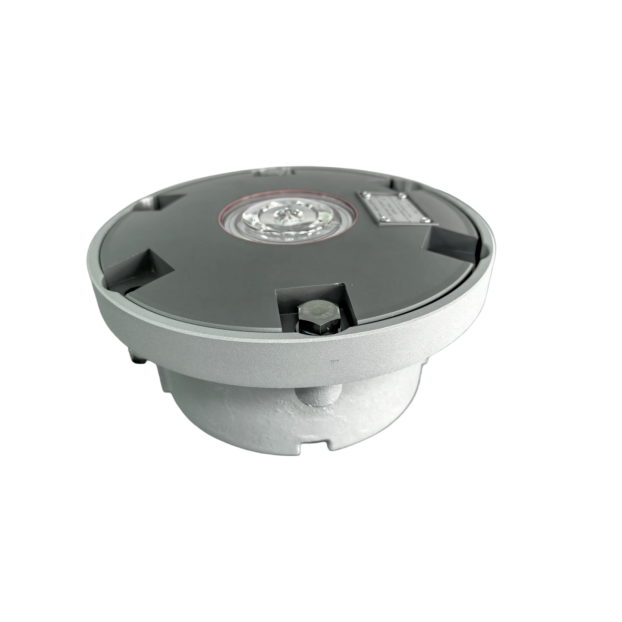

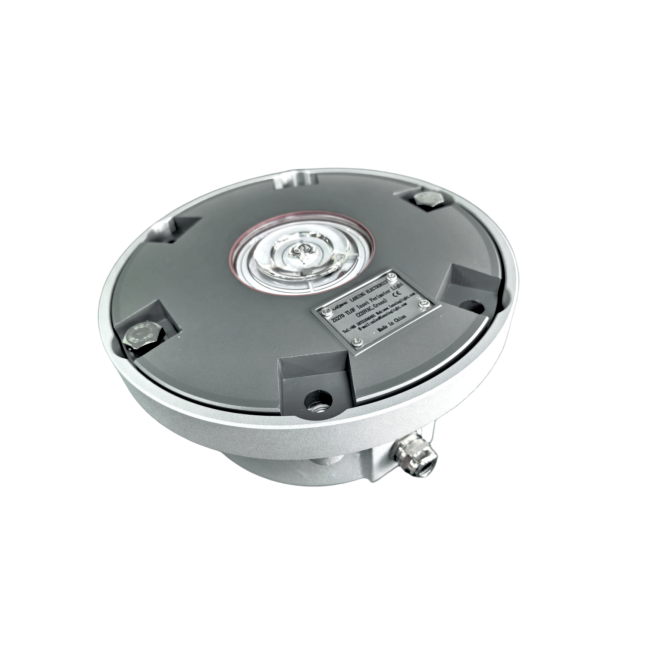

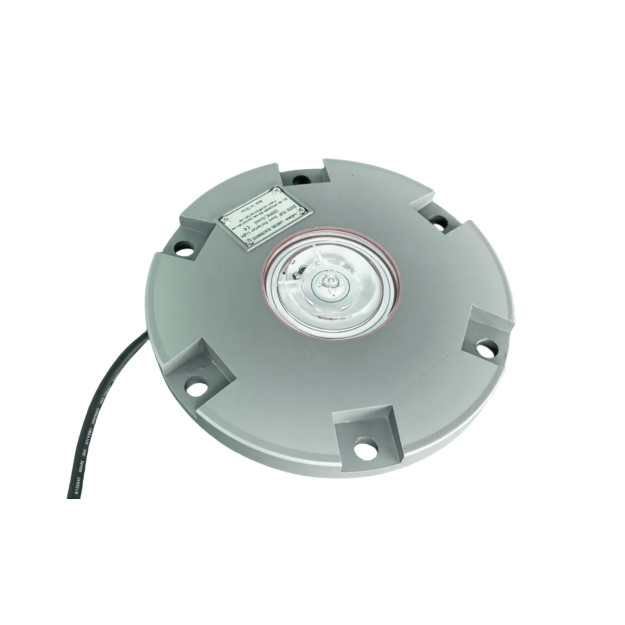

Altiglo AS700 Inset Flight Path Alignment Guidance Light has been specifically
designed to improve safety and efficiency for helicopter pilots during take-off and
landing procedures. With its advanced features and reliable performance, our
guidance light is a must-have addition for any heliport. Whether you are looking to
upgrade your existing heliport or establish a new one, our guidance light is the ideal
choice for meeting the highest standards of operational excellence.
Power supply: AC220V, AC120V, DC12-48V or 6.6A
Rated power: 10W
LED Life Time:100,000 Hours
Minimum Average Intensity:100cd
IP grade: IP68
Item: AS700
ELECTRICAL CHARACTERISTIC - Max Intensity: ≥100cd
Downloads
AS700| Item | AS700 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Max Intensity | ≥100cd |
| LED source | Imported green customized LED |
| Light Source Service Life | 100000hours |
| Emitting Color | White |
| POWER SUPPLY - Optional voltage | AC220V, AC120V, DC12-48V or 6.6A |
| Average Power Consumption | 10W |
| OPERATION - Working Mode | Steady-burning |
| Supply Frequency | 50HZ ～ 60HZ |
| MECHANICAL STRUCTURE - Net Weight | 5.2kg |
| Size | ø222mm(D)×115mm(H) |
| IP Protection | IP68 |
| Ambient Temperature | -40℃ ～ 55℃ |
| Humidity | 0 ～ 100% |
| Altitude | ＜ 4500M |
| Cable methods | Bottom/side entry |
Typically specified for Inset Heliport Lighting projects.
Common use cases include heliport lighting, inset type, products.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
