Portable Battery Heliport, Portable Battery Powered

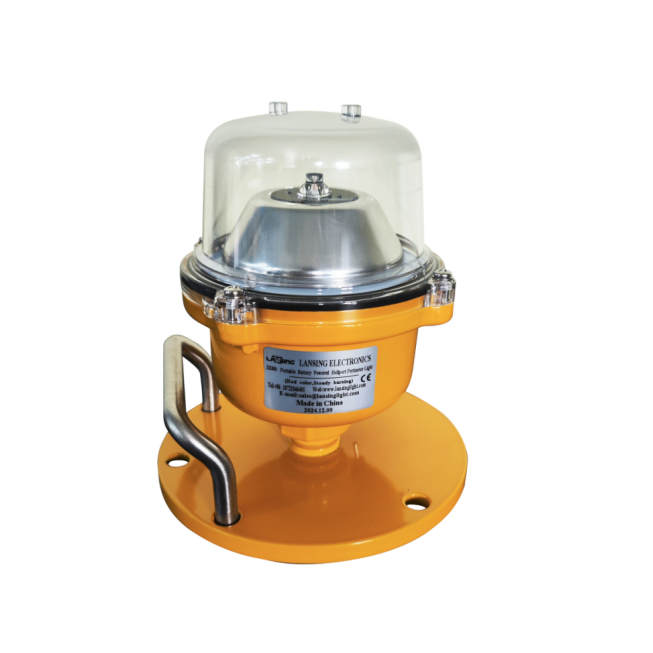

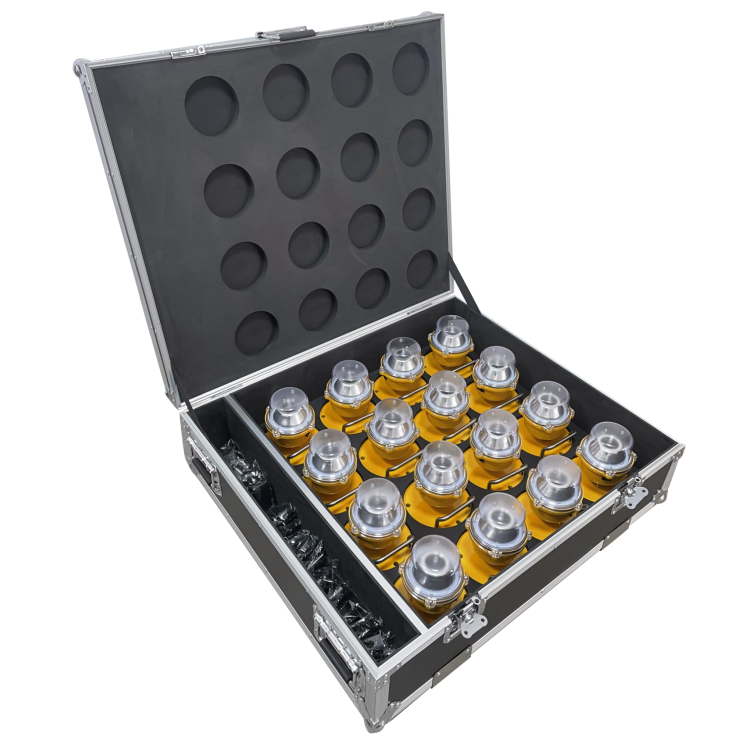

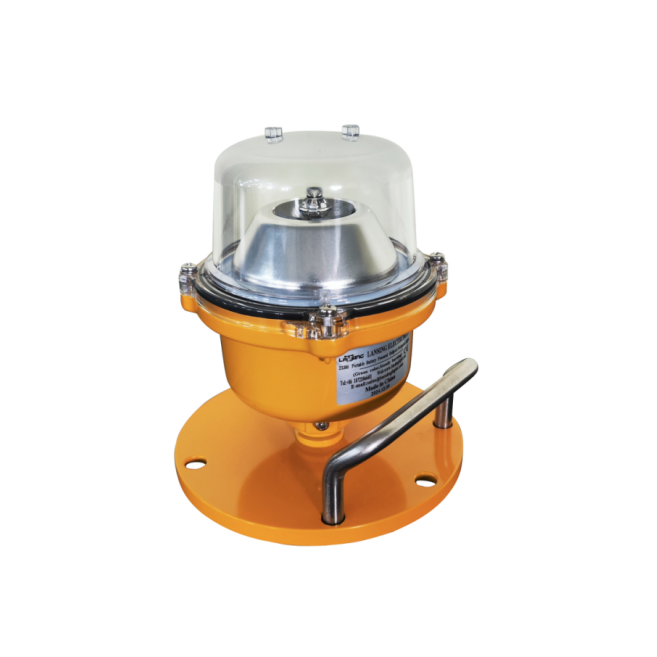

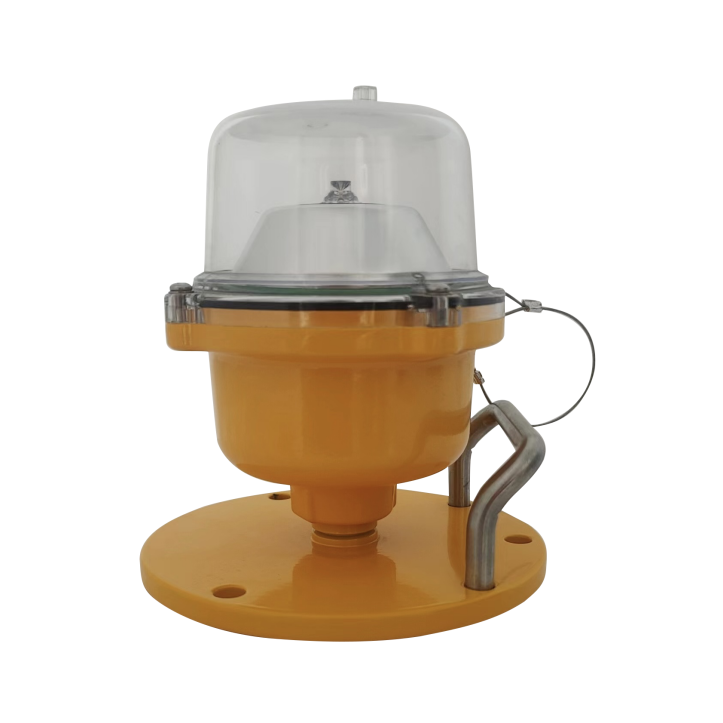

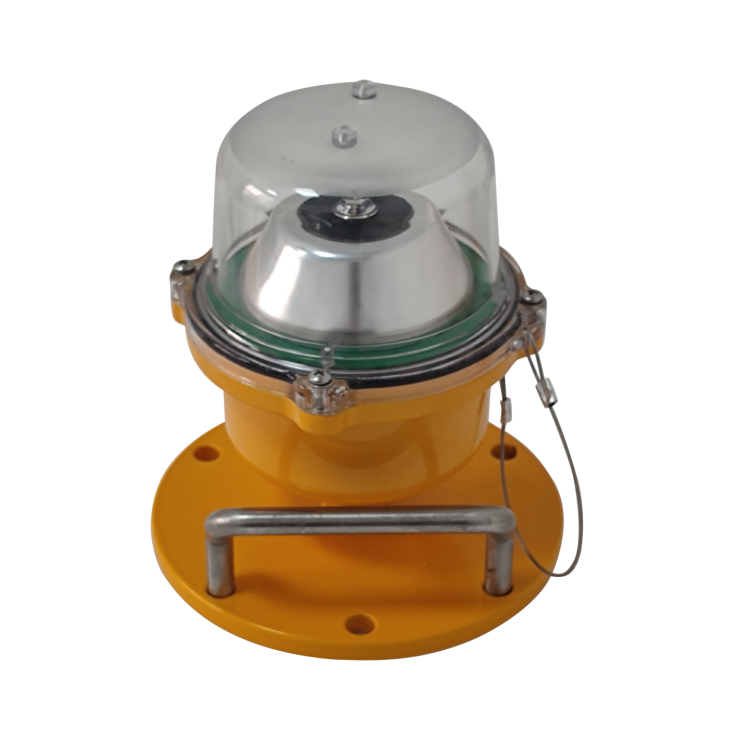

AS720 Portable Battery Powered Heliport Perimeter Light Kits
Short Description:
Altiglo are committed to providing innovative and high-quality products that prioritize safety and efficiency. Our portable battery-powered helipad perimeter light kits are a testament to this commitment, offering a reliable and convenient lighting solution for helicopter landing zones. Upgrade your helipad safety measures with our cutting-edge light kits and ensure optimal visibility for every landing.
Charging power supply: AC220V,50Hz
Rated power: 5W (Steady burning)
Life Time:100,000 Hours
Effective Intensity:30cd Materials:Lens-PC; Body-Aluminum
LED color: Green
E LECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
Vertical Divergence: 10 Degree
Downloads
- SKU
AS720-PORTABLE-BATTERY-POWERED-HELIPORT-PERIMETER-LIGHT-KITS- Category
- Portable Battery Heliport, Portable Battery Powered
- E LECTRICAL CHARACTERISTIC - Effective Intensity: >30Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Green
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Steady burning
- POWER SUPPLY - Battery parameters: 3.7V8AH
- Power consumption: 5W (Steady burning)
| Item | |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | >30Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Green |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Battery parameters | 3.7V8AH |
| Power consumption | 5W (Steady burning) |

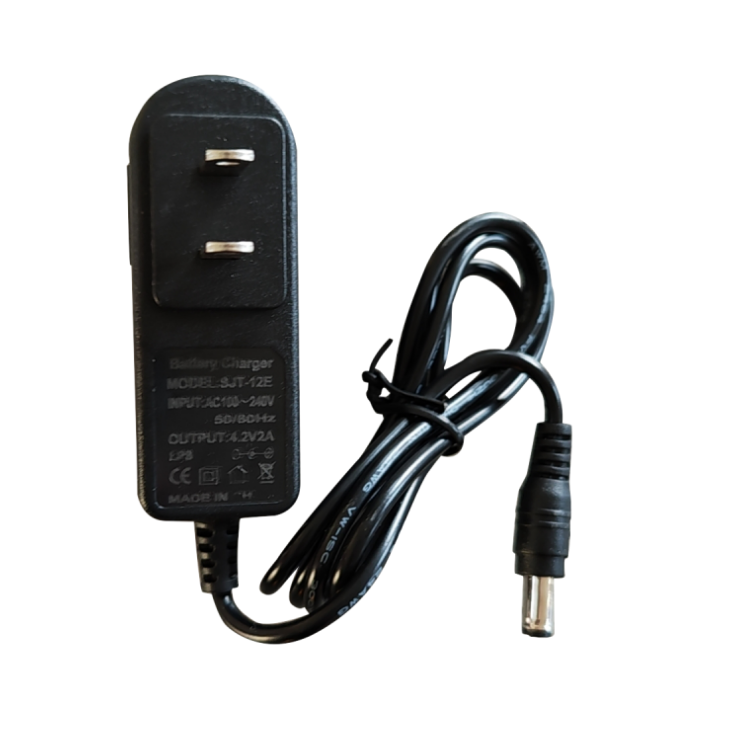

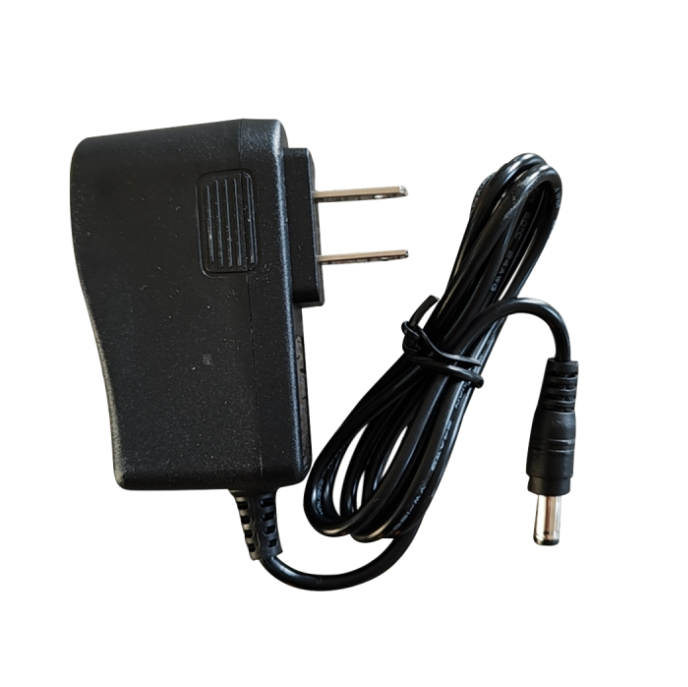

| Charging power supply | AC220V, 50Hz |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Dimensions | Φ160*175mm |
| Bolt mounting dimensions | Φ140*M10(3 mounting holes) |
| IP Ingress | IP66 |
| Weight | 2.4KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |

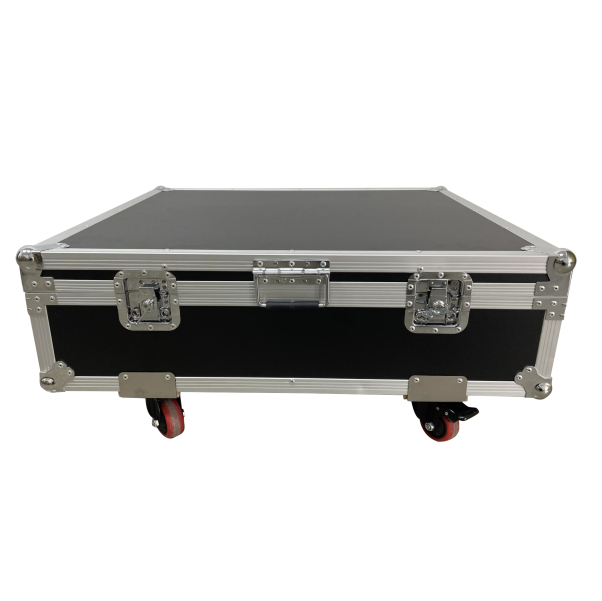

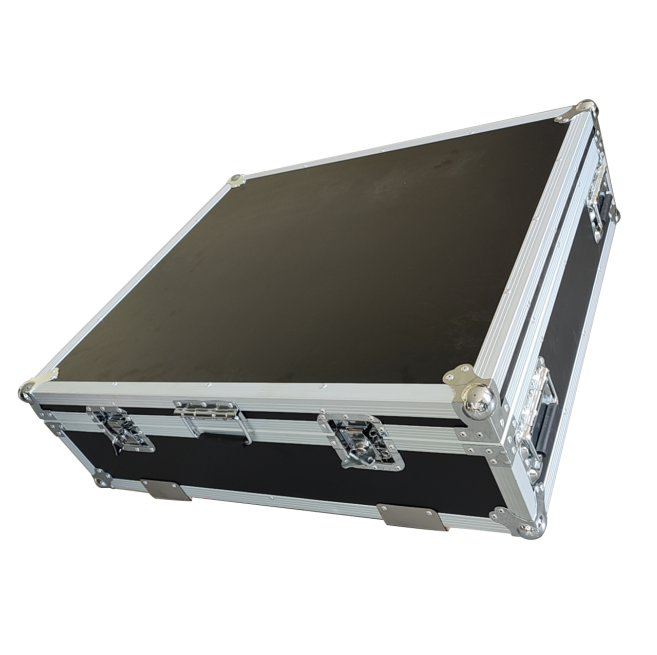

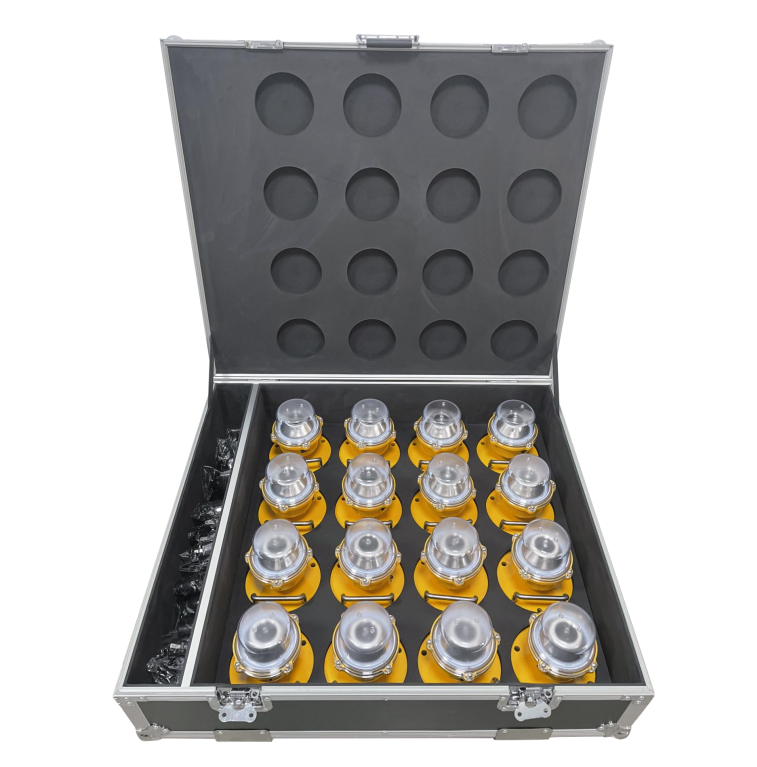

| MECHANICAL STRUCTURE - Enclosure Material | PBS Fire proof plate+aluminum edging |
| Inner material | EVA Cotton |
| Dimension(mm): | 920X800X280 |
| Net Weight: | 24.8kg |
Typically specified for Portable Battery Heliport, Portable Battery Powered projects.
Common use cases include battery powered lighting, elevated heliport perimeter light, helipad landing lights, helipad lighting helipad lights price, helipad lighting suppliers， helipad portable lighting, helipad lights.
