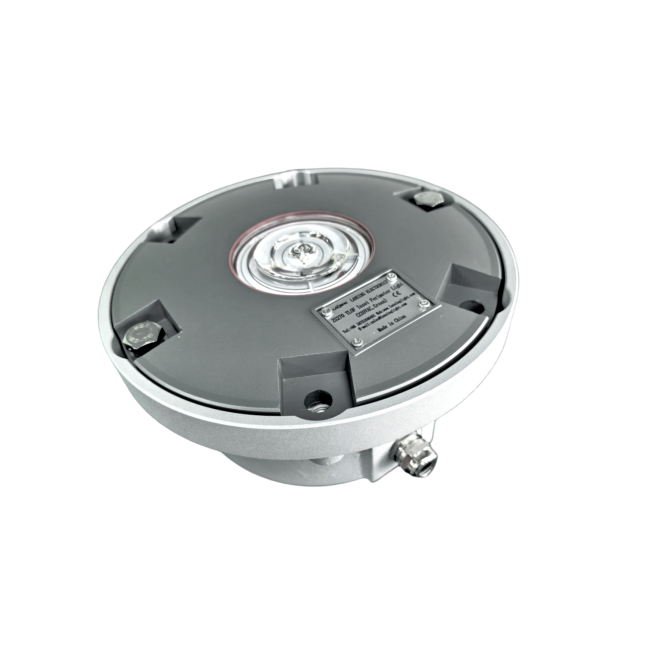

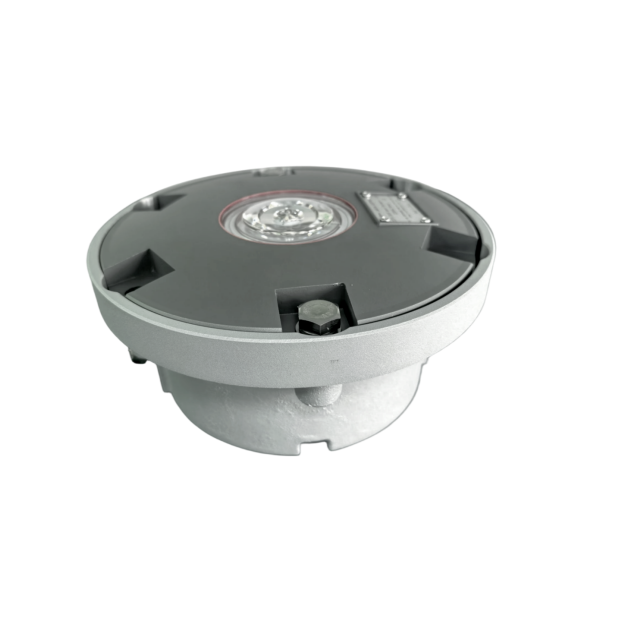

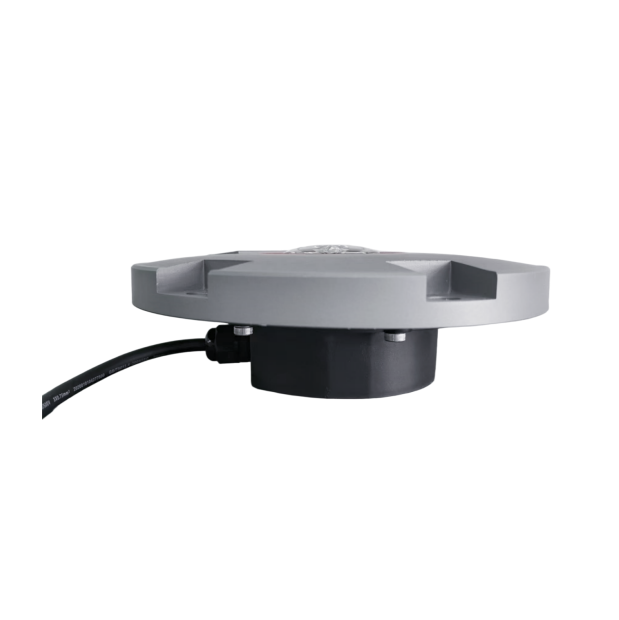

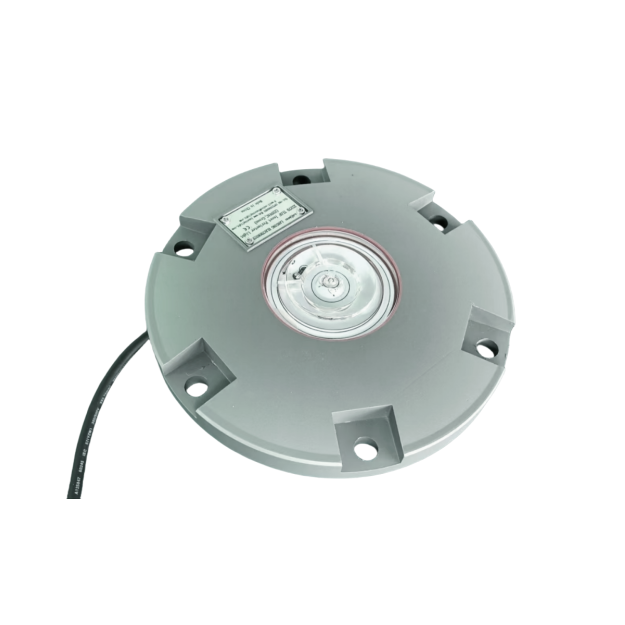

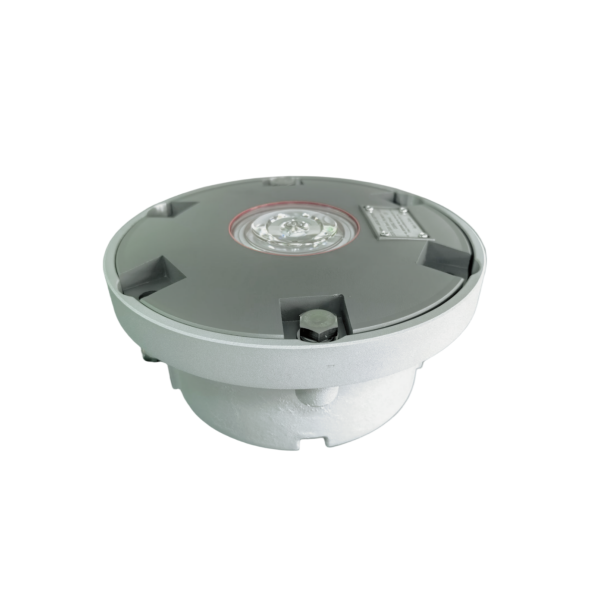

AS810 Heliport Aiming Point Helipad Inset Light RGB
Short Description:
Product name:Inset Heliport Aiming Point Helipad Inset Light RGB
Power supply: AC220V, AC120V, DC12-48V or 6.6A
Rated power: 5W
LED Life Time:100,000 Hours
Minimum Average Intensity:30cd
Color: White
IP grade: IP68
Item: AS810
ELECTRICAL CHARACTERISTIC - Max Intensity: ≥30cd
Downloads
- SKU
AS810- Category
- Inset Heliport Lighting
- Item: AS810
- ELECTRICAL CHARACTERISTIC - Max Intensity: ≥30cd
- LED source: Imported white customized LED
- Light Source Service Life: 100000hours
- Emitting Color: White
- POWER SUPPLY - Optional voltage: AC220V, AC120V, DC12-48V or 6.6A
- Average Power Consumption: 5W
- OPERATION - Working Mode: Steady-burning
| Item | AS810 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Max Intensity | ≥30cd |
| LED source | Imported white customized LED |
| Light Source Service Life | 100000hours |
| Emitting Color | White |
| POWER SUPPLY - Optional voltage | AC220V, AC120V, DC12-48V or 6.6A |
| Average Power Consumption | 5W |
| OPERATION - Working Mode | Steady-burning |
| Supply Frequency | 50HZ～60HZ |
| MECHANICAL STRUCTURE - Net Weight | 5.2kg |
| Size | ø222mm(D)×115mm(H) |
| IP Protection | IP68 |
| Ambient Temperature | -40℃～55℃ |
| Humidity | 0～100% |
| Altitude | ＜4500M |
| Cable methods | Bottom/side entry |
Typically specified for Inset Heliport Lighting projects.
Common use cases include heliport lighting, inset type, products.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
