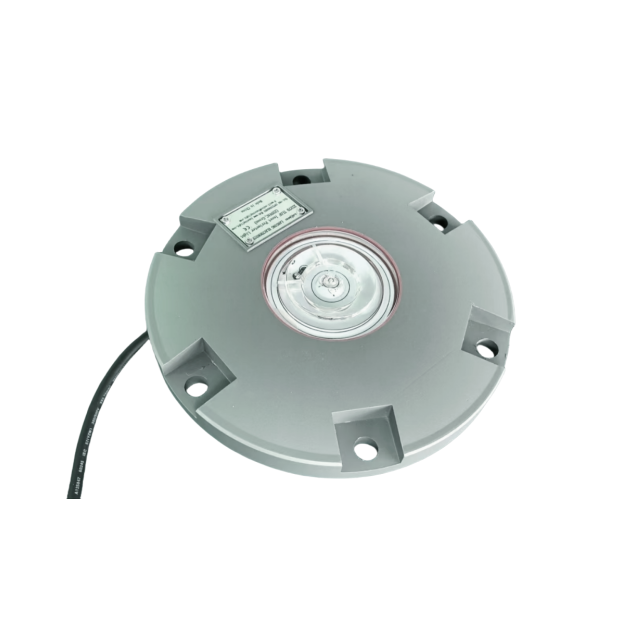

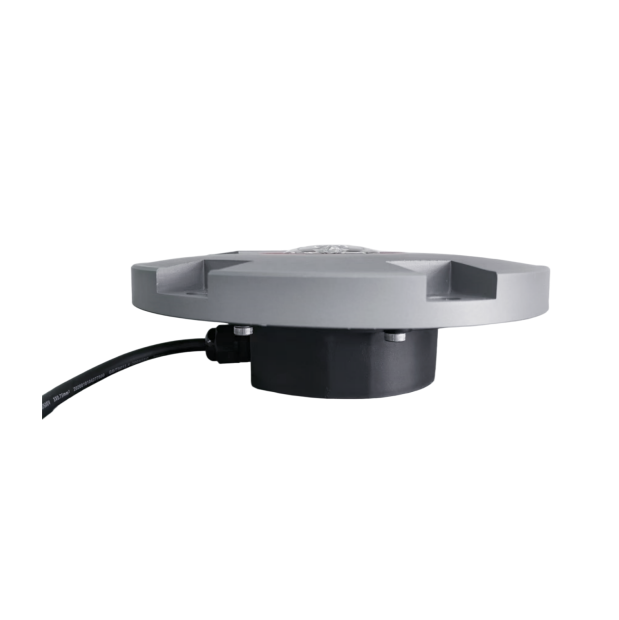

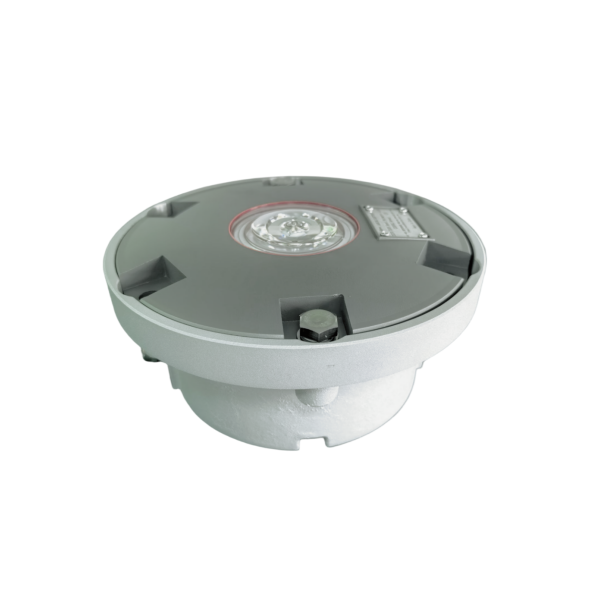

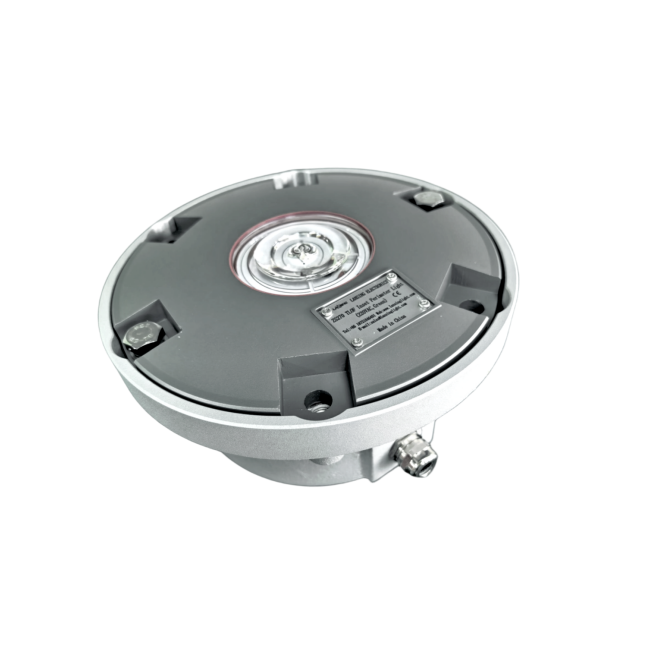

AS830 Inset Heliport Perimeter Light
Short Description:
Product name:Inset Heliport Perimeter Light
Power supply: AC220V, AC120V, DC12-48V or 6.6A
Rated power: 5W
LED Life Time:100,000 Hours
Minimum Average Intensity:30cd
Color: Green
IP grade: IP68
Item: AS830
ELECTRICAL CHARACTERISTIC - Max Intensity: ≥30cd
Downloads
- SKU
AS830- Category
- Inset Heliport Lighting
- Item: AS830
- ELECTRICAL CHARACTERISTIC - Max Intensity: ≥30cd
- LED source: Imported green customized LED
- Light Source Service Life: 100000hours
- Emitting Color: Green
- POWER SUPPLY - Optional voltage: AC220V, AC120V, DC12-48V or 6.6A
- Average Power Consumption: 5W
- OPERATION - Working Mode: Steady-burning
| Item | AS830 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Max Intensity | ≥30cd |
| LED source | Imported green customized LED |
| Light Source Service Life | 100000hours |
| Emitting Color | Green |
| POWER SUPPLY - Optional voltage | AC220V, AC120V, DC12-48V or 6.6A |
| Average Power Consumption | 5W |
| OPERATION - Working Mode | Steady-burning |
| Supply Frequency | 50HZ ～ 60HZ |
| MECHANICAL STRUCTURE - Net Weight | 5.2kg |
| Size | ø222mm(D)×115mm(H) |
| IP Protection | IP68 |
| Ambient Temperature | -40℃ ～ 55℃ |
| Humidity | 0 ～ 100% |
| Altitude | ＜ 4500M |
| Cable methods | Bottom/side entry |
Typically specified for Inset Heliport Lighting projects.
Common use cases include accessed helipad light, accessed heliport light, accessed perimeter light, helipad landing lights, helipad lighting, helipad lighting system.
