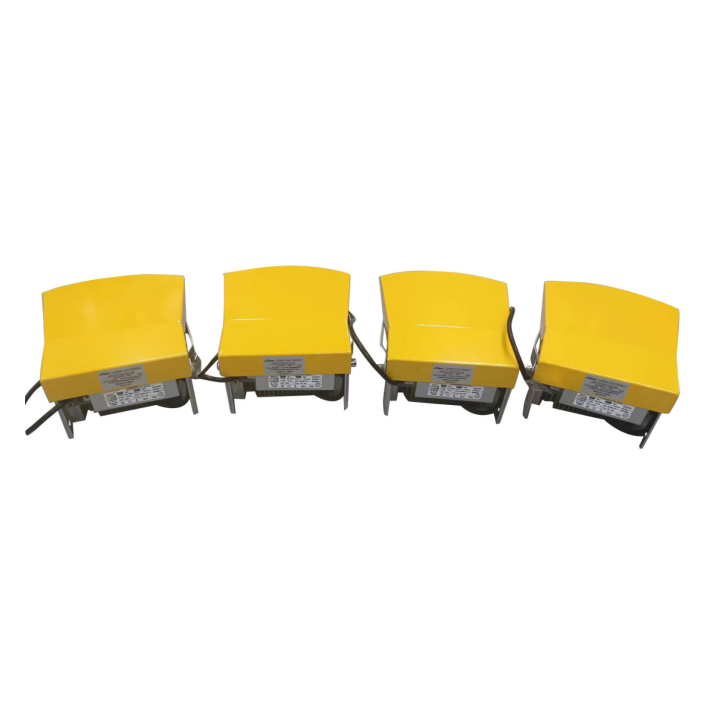

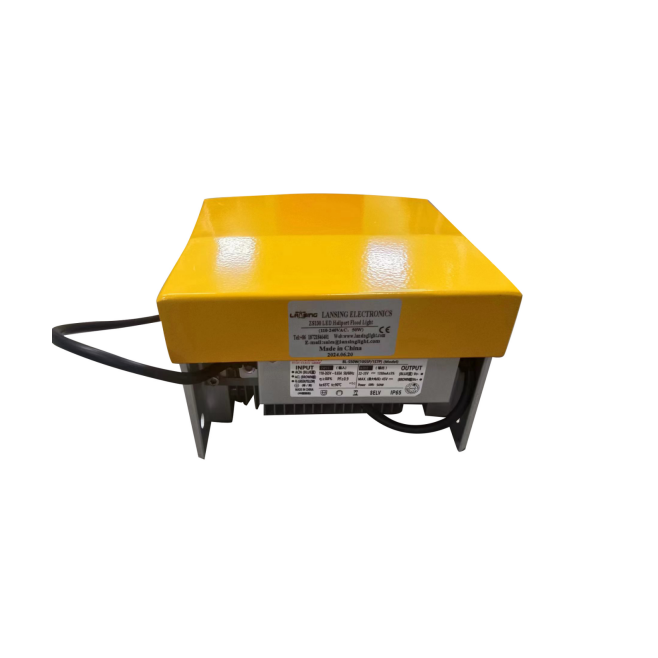

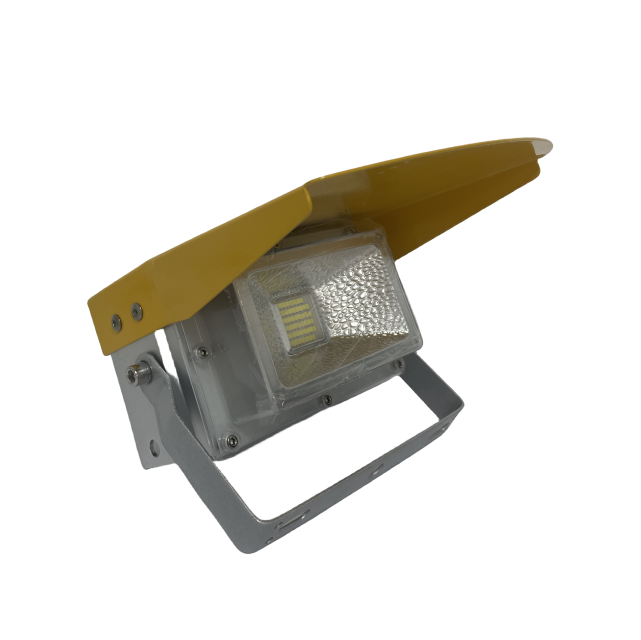

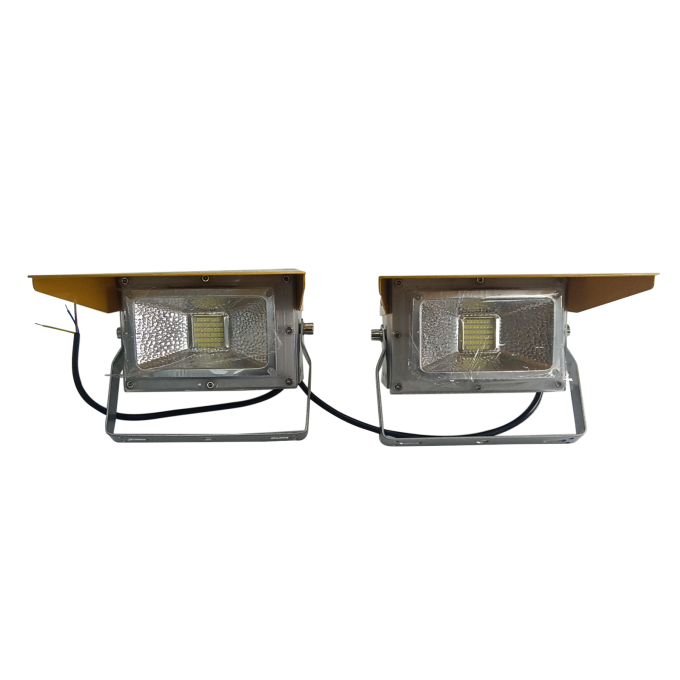

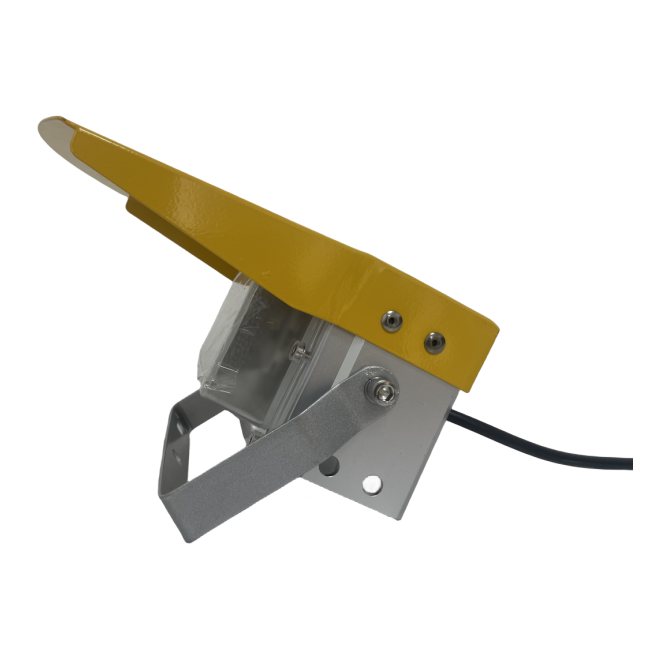

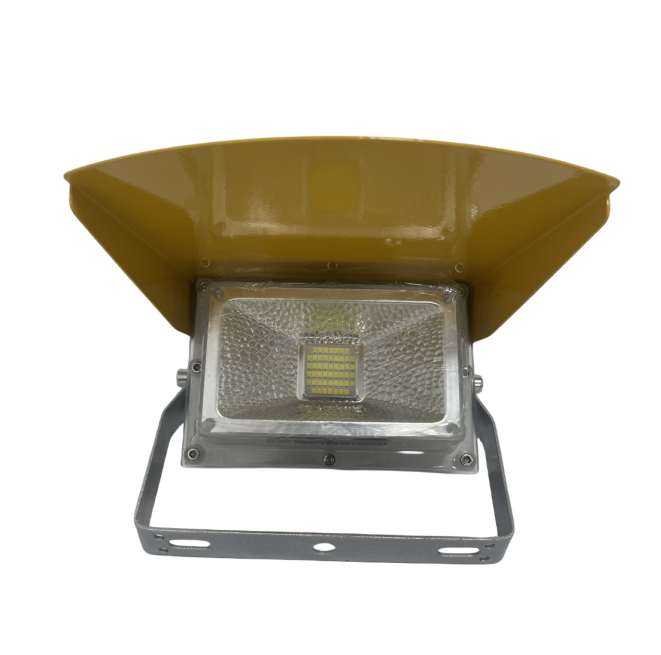

AS970 LED Heliport Flood Light
Short Description:
The new flood light AS970 is designed to meet the specific requirements of heliport operations,
ensuring that it delivers optimal performance in a range of different environmental conditions.
This innovative light is set to revolutionize the way heliports are illuminated, providing improved
visibility and safety for both pilots and ground personnel.
Power voltage: 220VAC, 48VDC，50~60Hz
Power Consumption:30–70W(optional)
Working mode: Steady Burning
Light source life：10000h
Materials:Lens-PC Body-Aluminum
LED Color:White
IP rate:IP66
Item: AS970
Power voltage: 110-240VAC, 50~60Hz 48VDC
Downloads
- SKU
AS970- Category
- Elevated Heliport Lighting
- Item: AS970
- Power voltage: 110-240VAC, 50~60Hz 48VDC
- Light Source: High Power LED
- Optical structure: Reflective optical structure
- Power Consumption: 50W(optional 30W, 70W or 100W)
- Light source life: 10000h
- Working mode: Steady Burning
- Luminous Flux: 13000Lm
| Item | AS970 |
|---|---|
| Power voltage | 110-240VAC, 50~60Hz 48VDC |
| Light Source | High Power LED |
| Optical structure | Reflective optical structure |
| Power Consumption | 50W(optional 30W, 70W or 100W) |
| Light source life | 10000h |
| Working mode | Steady Burning |
| Luminous Flux | 13000Lm |
| Emitting Light Colors | White |
| Body Material | Powder coated aluminum |
| Height above ground | Lower than 180mm |
| Overall Size(mm) | 235×180×160 |
| Packing Size(mm) | 240×190×120 |
| Net Weight | 1.3KG |
| IP Protection | IP66 |
| Temperature range | -30℃ ～ 70℃ |
| Gross Weight | 1.5KG |
| Humidity | ＜ 95% |
| Altitude | ＜ 4500M |
| Wind resistance | 80 m/s |
| color temperature | 6000K |
Typically specified for Elevated Heliport Lighting projects.
Common use cases include elevated type, heliport lighting, products.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
