Medium Intensity Series Solar Powered Series, Solar-Powered Series

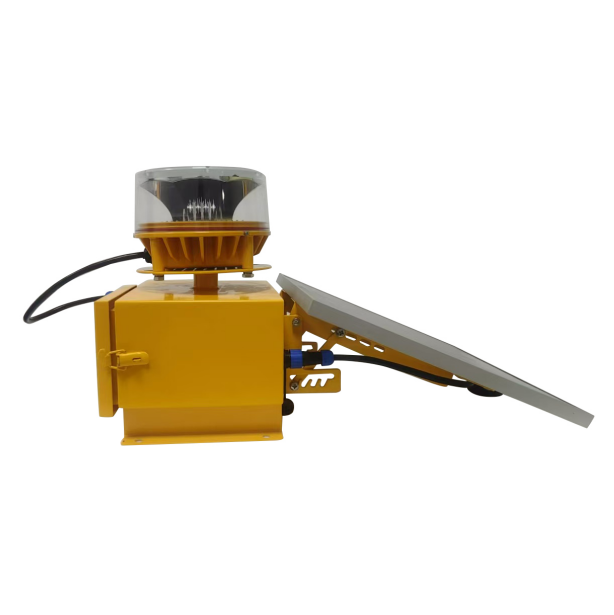

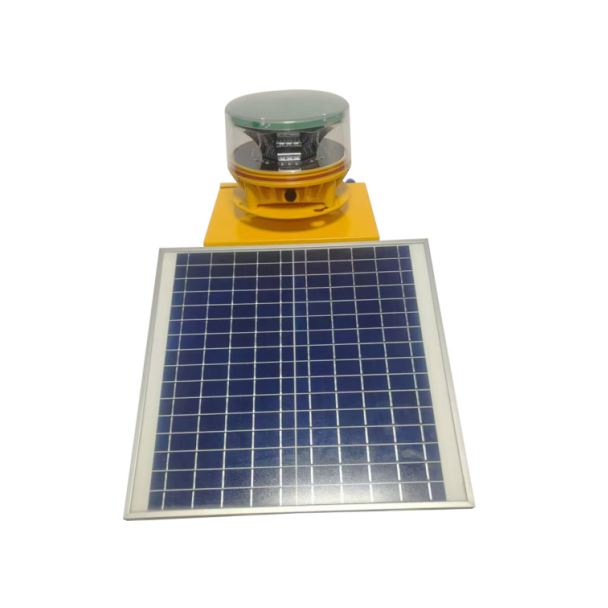

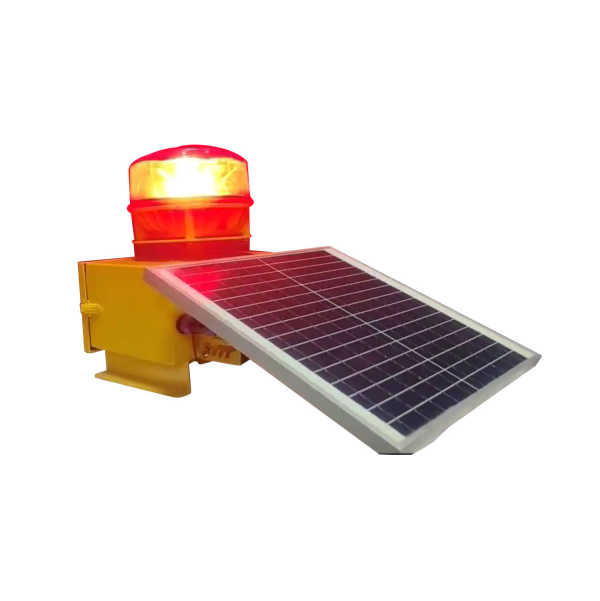

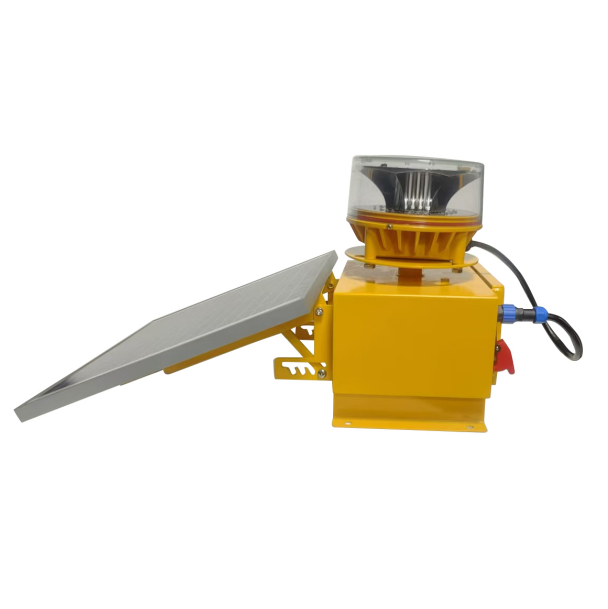

GY8000S LED Single Medium Intensity Solar Obstruction Light(Type B or C)
Short Description:
Solar panel:Solar module, mono-crystalline silicon 18V 40W*2
Intensity: >2000cd
Autonomy: 8 days(flashing), 5 days(steady burning)
Suitable areas: PSH=4
Item: GY8000S
E LECTRICAL CHARACTERISTIC - Effective Intensity: > 200 0 Candela
Downloads
- SKU
GY8000S- Category
- Medium Intensity Series Solar Powered Series, Solar-Powered Series
- Item: GY8000S
- E LECTRICAL CHARACTERISTIC - Effective Intensity: > 200 0 Candela
- Vertical Divergence: 3 Degree
- Horizontal Divergence: 360 Degree
- LED Color: Red (for obstruction). White, yellow, green and blue are available for other applications
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing or steady burning
- Flash Pattern (optional): Flashing: 20/30/40/60FPM; Default: 40FPM;
| Item | GY8000S |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | > 200 0 Candela |
| Vertical Divergence | 3 Degree |
| Horizontal Divergence | 360 Degree |
| LED Color | Red (for obstruction). White, yellow, green and blue are available for other applications |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing or steady burning |
| Flash Pattern (optional) | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 7 0 -100 Lux |
| Autonomy | 8 days(flashing), 5 days(steady burning) |
| Alarm type: | NO & NC, dry contact relay(optional) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 18V 4 0W |
| Solar Efficiency | 21 % |
| Battery capacity | VRLA, 2* 12V/ 12 Ah |
| B attery replacement | R eplaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 5 |
| Weight | 15 KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 70 ℃ |
| Suitable areas: | PSH=4 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| Overall dimension | 550X458X250 (mm) |
| Battery box dimension | 168X190x250 (mm) |
| Solar panel dimension | 365*350*17(mm) |
| Mounting hole | 150*225(mm) |
| OTHERS - Warranty | 2 years |
Typically specified for Medium Intensity Series Solar Powered Series, Solar-Powered Series projects.
Common use cases include avation light, aviation lamp, aviation light fitting, aviation light for tower, aviation light for tower crane, aviation lighting.
