High-Intensity Solar-Powered Series, Solar-Powered Series
Short Description:

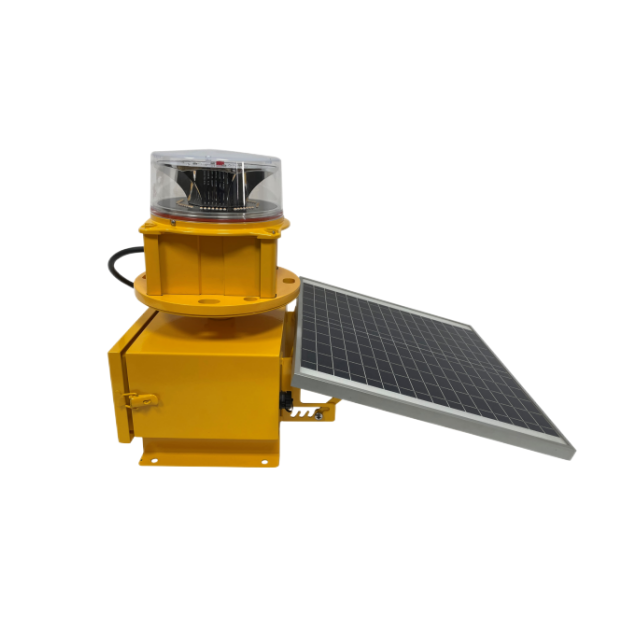

Whether you are responsible for the safety of a high-rise building, communication tower, wind turbine, or any other tall structure, Altiglo L857 GY8HB solar high intensity obstruction light is the ideal choice to ensure compliance with aviation regulations and enhance safety for both air traffic and on-site personnel. Trust in our reliable and innovative lighting solution to provide the visibility and warning signals needed to mitigate potential risks and keep the skies safe for all.
Autonomy：20 days(flashing)
Battery capacity ：VRLA，12V/100Ah
Solar panel：Solar module，mono-crystalline silicon 24V160W
Item: GY8HB
E LECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 200, 000cd+25%, At dusk: white 100, 000cd (±25%) Night: white 2, 000cd+25%
Downloads
GY8HB| Item | GY8HB |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | Day: white 200, 000cd+25%, At dusk: white 100, 000cd (±25%) Night: white 2, 000cd+25% |
| Vertical Divergence | 3 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red (for obstruction). White, yellow, green and blue are available for other applications |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing or steady burning |
| Flash Pattern (optional) | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 7 0 -100 Lux |
| Autonomy | 20 days(flashing) |
| Alarm type (optional) | NO & NC, dry contact relay(optional) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 24V160W |
| Solar Efficiency | 21 % |
| Battery capacity | VRLA, 12V/100Ah |
| B attery replacement | R eplaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 5 |
| Weight | 50 KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 70 ℃ |
| Suitable areas: | PSH=4 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 1 year |
| Optional | F lashing pattern( 2 0 –60 FPM) B uilt-in photocell NO & NC, dry contact relay GPS Synchronization function |
Typically specified for High-Intensity Solar-Powered Series, Solar-Powered Series projects.
Common use cases include aircraft warning lights, aviation light fitting, aviation light for tower, aviation lights, aviation warning light, aviation warning lights.
