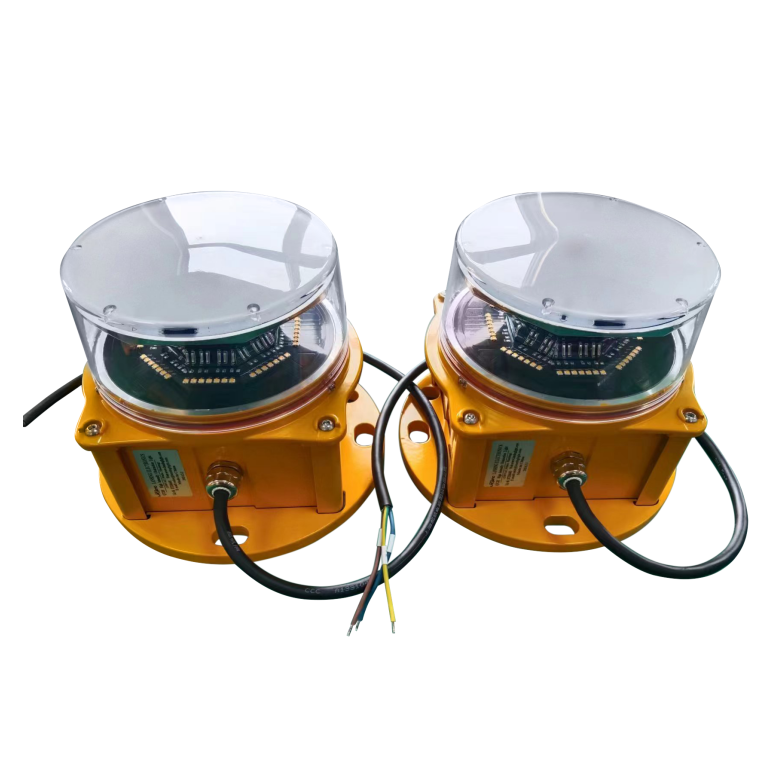

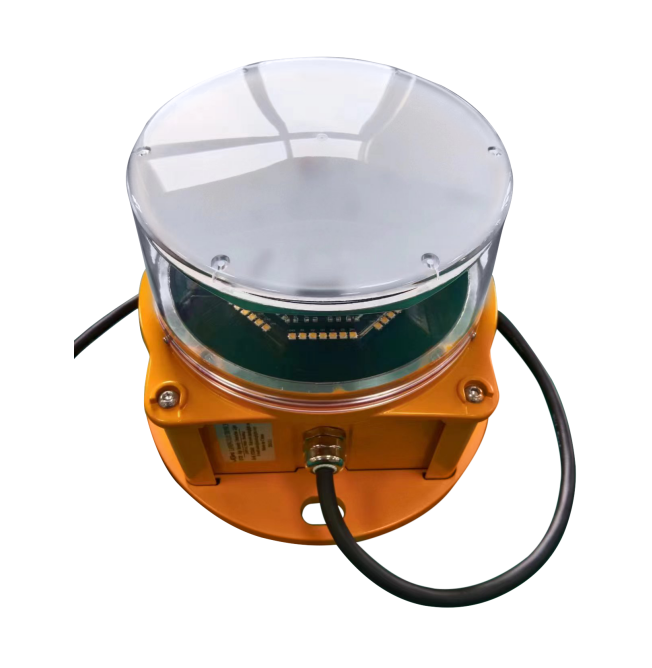

JT8AT L-865 Single Medium Intensity Obstruction Light (Type A)

JT8AT L-865 Single Medium Intensity Obstruction Light (Type A) - Image 3

JT8AT L-865 Single Medium Intensity Obstruction Light (Type A) - Image 4

Short Description:

Altiglo L865 medium intensity obstruction light Type A is a high-performance and compliant solution for tall structures requiring aircraft warning lights. Its durable construction, easy installation, and reliable operation make it an essential addition to any tall structures, providing essential safety for both aircraft and nearby structures.

Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;

Effective Intensity:>2000+25% Candela

LED Lifespan:100,000 Hours

Materials:Lens-PC; Body- Aluminum

Item: JT8AT

ELECTRICAL CHARACTERISTIC - Effective Intensity: Day: white 20, 000cd+25%, Night: white 2, 000cd+25%

Downloads

Send Enquiry

SKU: JT8AT
Category: Medium Intensity Series, Type A Series Medium Intensity Series

Item	JT8AT
ELECTRICAL CHARACTERISTIC - Effective Intensity	Day: white 20, 000cd+25%, Night: white 2, 000cd+25%
Vertical Divergence	3 Degree
Horizontal out-put	360 Degree
LED Color	White&White
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Alarm type	NO & NC, dry contact relay
POWER SUPPLY - Input voltage	85-265VAC, 50/60 Hz;24VDC;30-60VDC;
Power consumption	40W(Flashing)
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP66
Weight	3.8KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Wire Connection mode	Prewired
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	1 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization function
