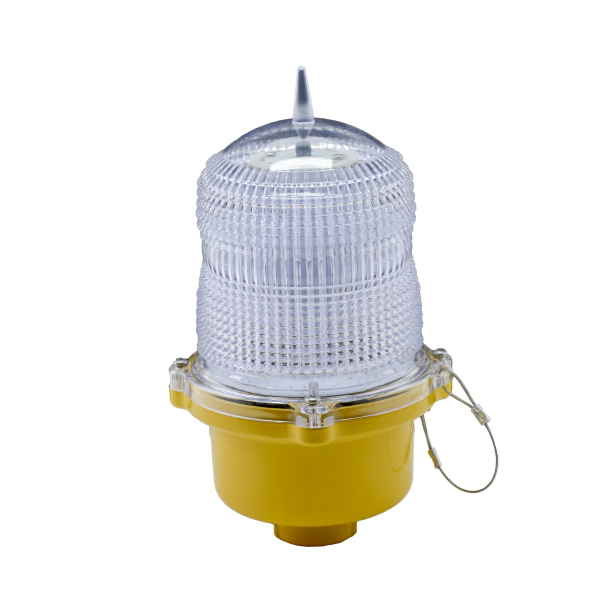

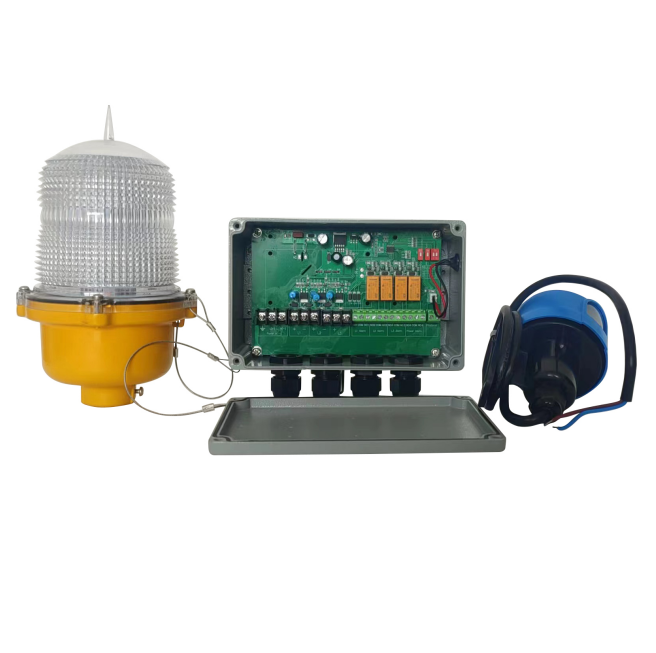

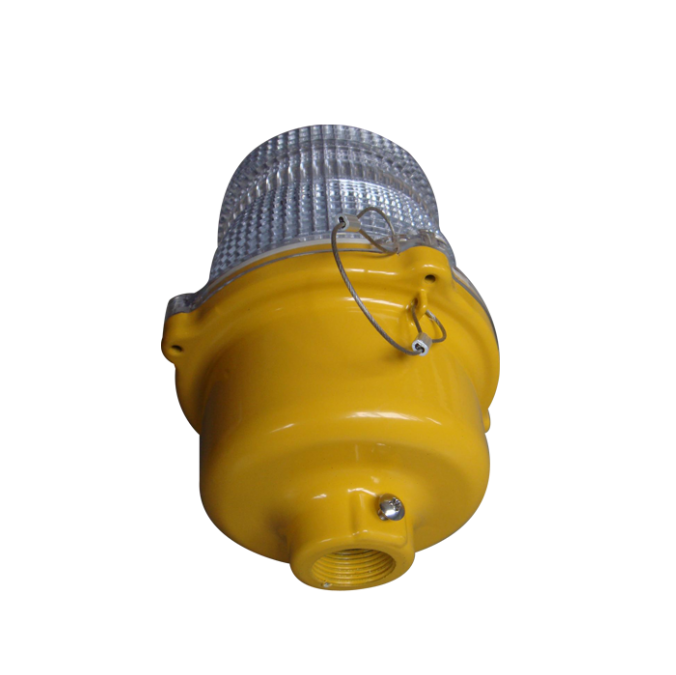

L-810 DC LED Single OBSTRUCTION LIGHT SYSTEM

L-810 DC LED Single OBSTRUCTION LIGHT SYSTEM - Image 3

L-810 DC LED Single OBSTRUCTION LIGHT SYSTEM - Image 4

L-810 DC LED Single OBSTRUCTION LIGHT SYSTEM - Image 5

Short Description:

Altiglo L-810 Single Obstruction Light Monitoring System sets the standard for reliable, efficient, and user-friendly monitoring and control of obstruction lighting. With its advanced technology, seamless integration, and durable construction, this system is the ideal choice for ensuring the safety and compliance of aviation obstruction lighting on any structure. Trust the L810 Single Obstruction Light Monitoring System to provide the performance and peace of mind you need in maintaining your obstruction lighting systems.

Item: C BL02 A

E LECTRICAL CHARACTERISTIC - Effective Intensity: >32.5Candela

Downloads

Send Enquiry

SKU: X
Category: Controller & Monitoring

Item	C BL02 A
E LECTRICAL CHARACTERISTIC - Effective Intensity	>32.5Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern	Flashing: 20/30/40/60FPM; Steady burning
Flash duration	670ms
POWER SUPPLY - Input voltage	48VDC;
Power consumption	5W(Steady burning)
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP65
Weight	0.7KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Wire Connection mode	Threaded 3/4” bottom entry
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years

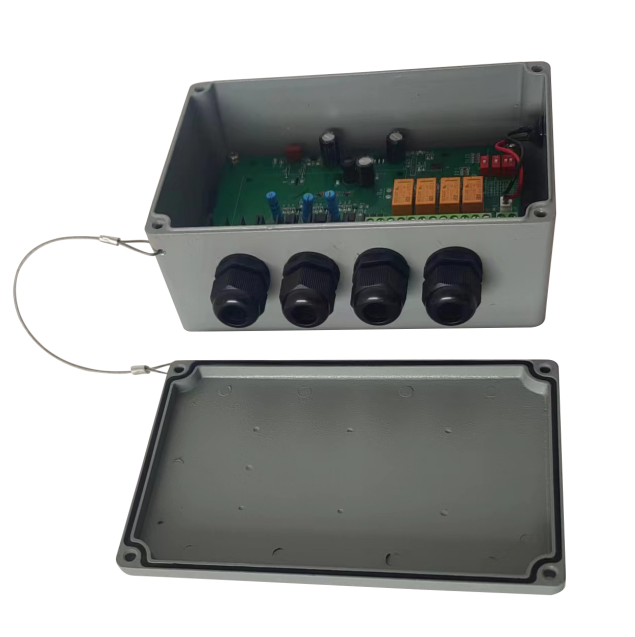

P OWER SUPPLY - Input voltage:	48V DC
Max.Load/Output	1A
Flash Rate	Steady/Flashing(20FPM), adjustable
Photocell sensitivity	70-100 Lux
Alarm type	NO & NC, dry contact relay
Numbers of Alarm Output	2*contact relay for lights and power

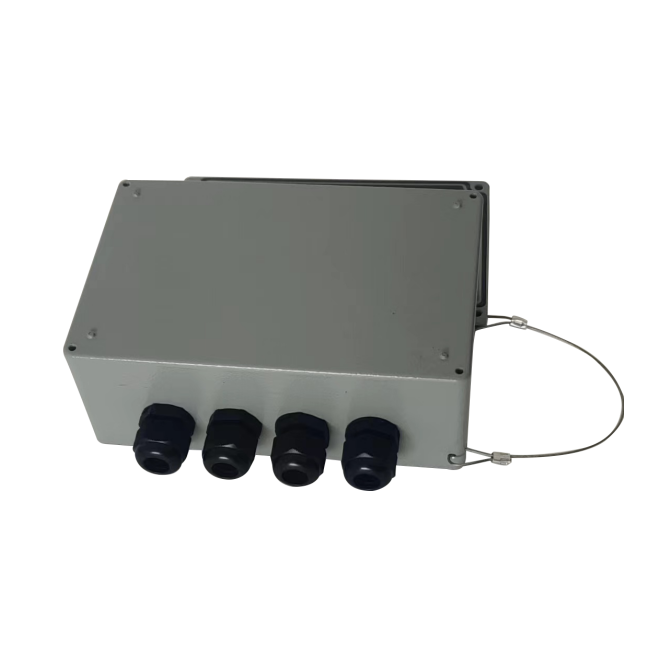

MECHANICAL STRUCTURE - Enclosure Type	outdoor
Enclosure Material	Aluminum alloy
Protection	IP65
