OS-ASL(H) Halogen Elevated approach side-row light
Short Description:
Altiglo Halogen Elevated Airport Approach Side Row Light,designed to enhance
safety and visibility during nighttime landings and takeoffs. This state-of-the-art
lighting solution is specifically engineered to provide superior illumination for pilots
and air traffic controllers, ensuring smooth and efficient operations at airports of all sizes.

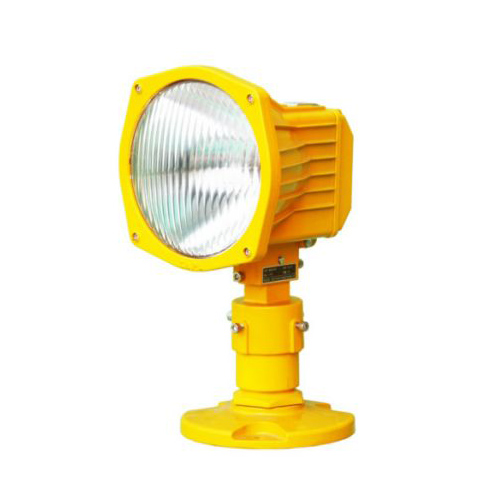

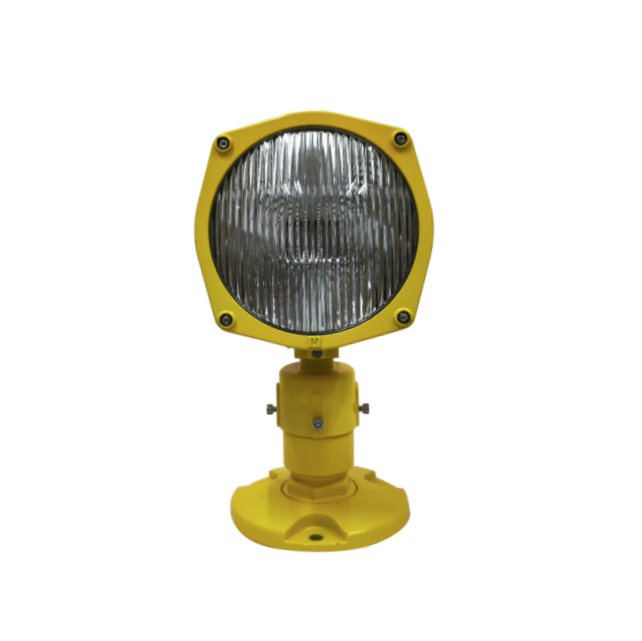

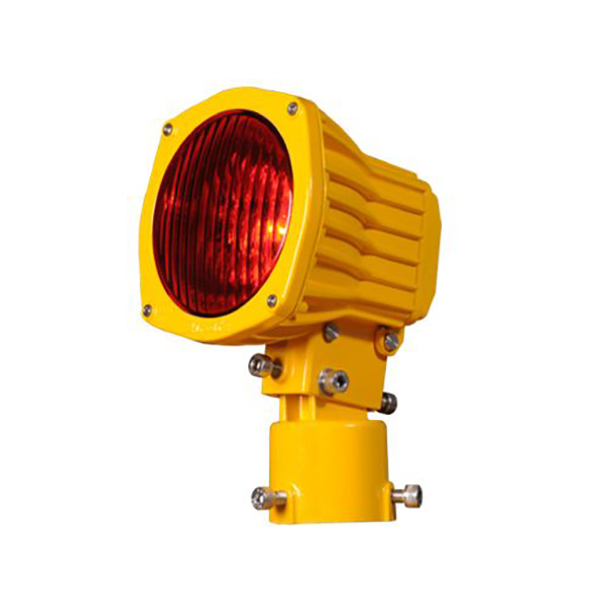

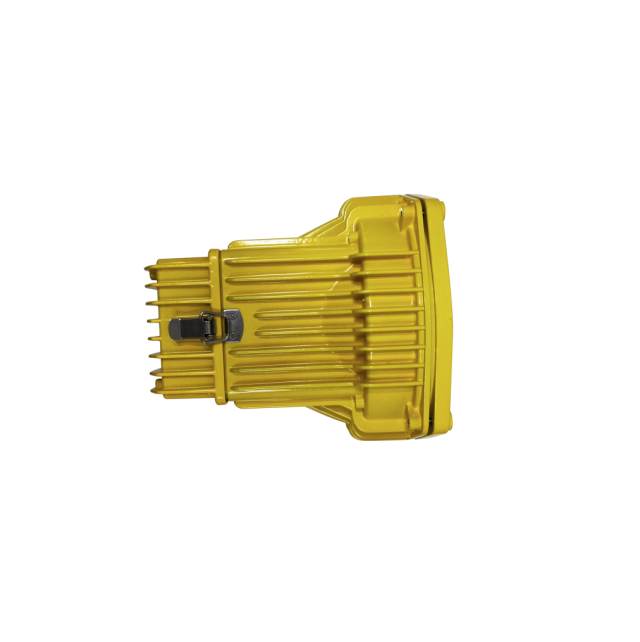

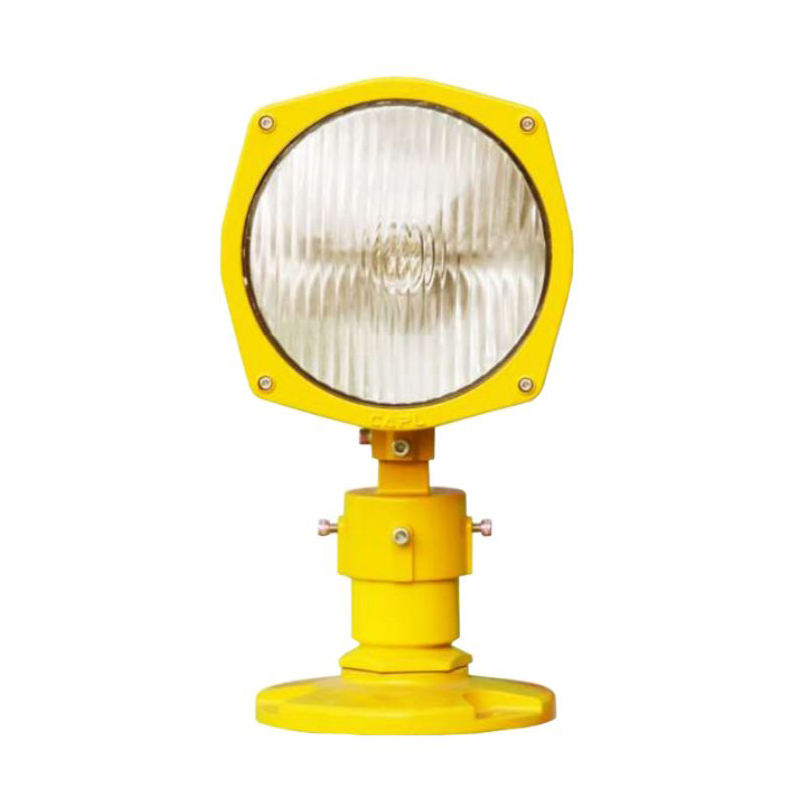

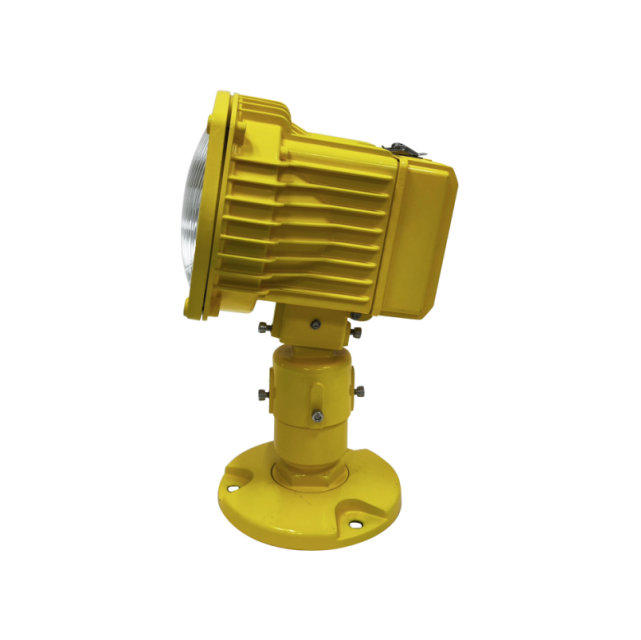

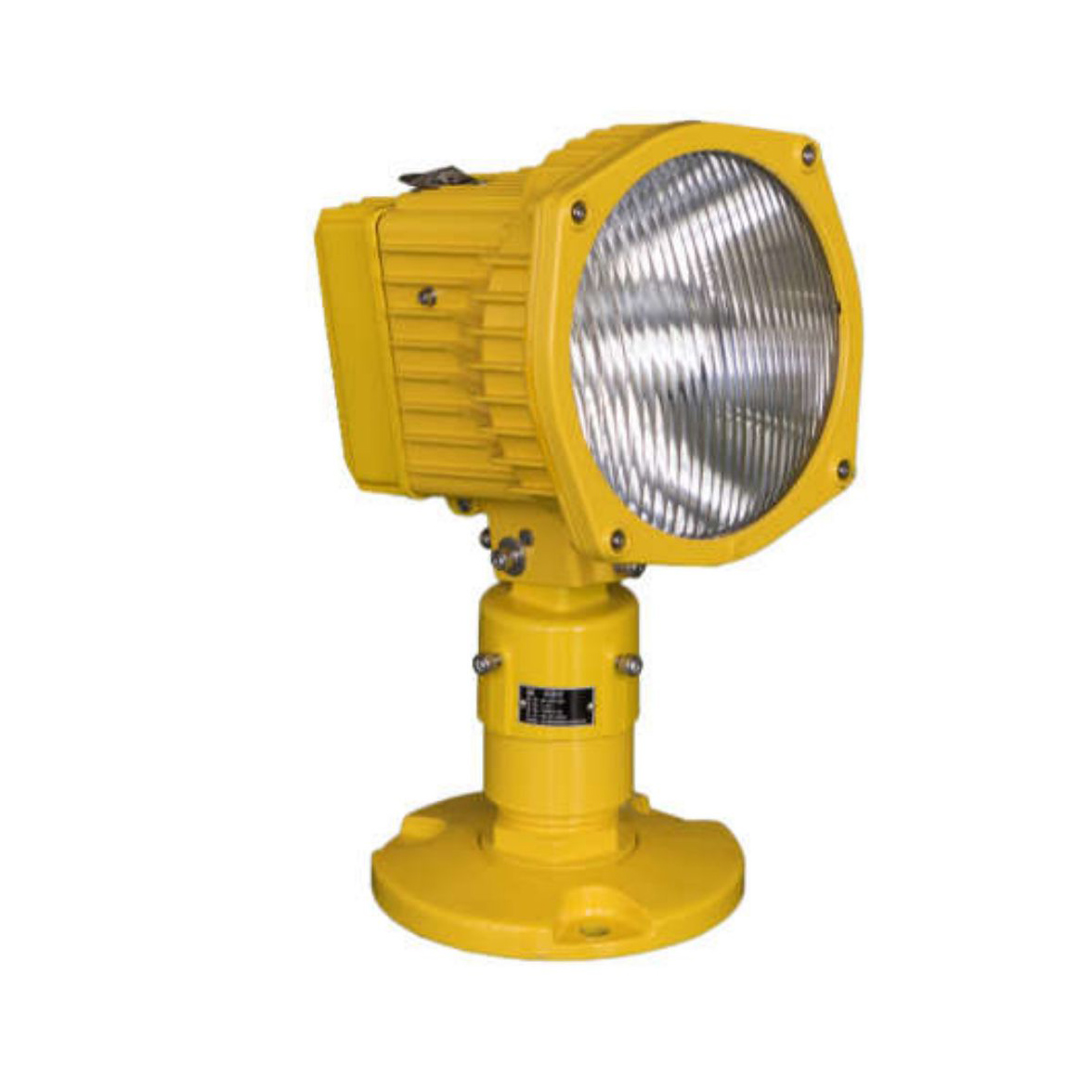

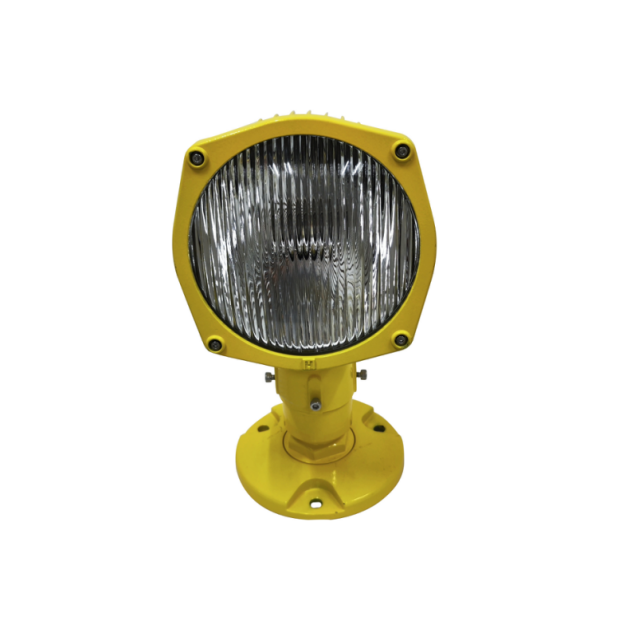

Halogen Elevated Approach Side-row Light
Power supply: 2.8A-6.6A
Bulb: 1X200W Pk30d Prefocus halogen lamp
Halogen Life Time:1000 Hours
Minimum Average Intensity:5000cd
Color: Uni-direction, Red
IP grade: IP65
Item: OS-SAL(H)
Environmental Property - Environmental Temperature: -40℃~+55℃
Downloads
- SKU
OS-SAL(H)- Category
- Approach Lighting, Elevated Approach Lighting
- Item: OS-SAL(H)
- Environmental Property - Environmental Temperature: -40℃~+55℃
- IP ingress: IP65
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: Halogen Lamp 200W
- Lamp: Halogen Lamp
| Item | OS-SAL(H) |
|---|---|
| Environmental Property - Environmental Temperature | -40℃~+55℃ |
| IP ingress | IP65 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | Halogen Lamp 200W |
| Lamp | Halogen Lamp |
| Lamp Life | 1, 000Hours |
| Photometric Property - Light color | Red |
| Main beam angle | Vertical:0°- 13.5°; Horizontal:± 10° |
| Min intensity | 5000cd |
| Lamp Size | 188x215x350mm³ |
| Weight | 4.1Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg(cd) |
| OS-ASL(H) - ICAO Figure A2-2 | V |
| ±7̊ - 0.5~10.5̊ | 6904 |
| ±7̊ - 1~11̊ | 7073 |
| ±7̊ - 1.5~12.5̊ | 7099 |
Typically specified for Approach Lighting, Elevated Approach Lighting projects.
Common use cases include airfield approach lighting, airport runway approach lights, approach lighting, approach lighting crossbar, approach lighting in airport, approach lighting series.
