Inset Type, Runway Lighting Series
Short Description:

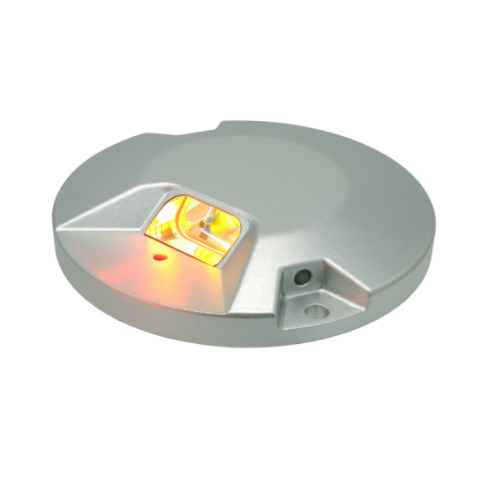

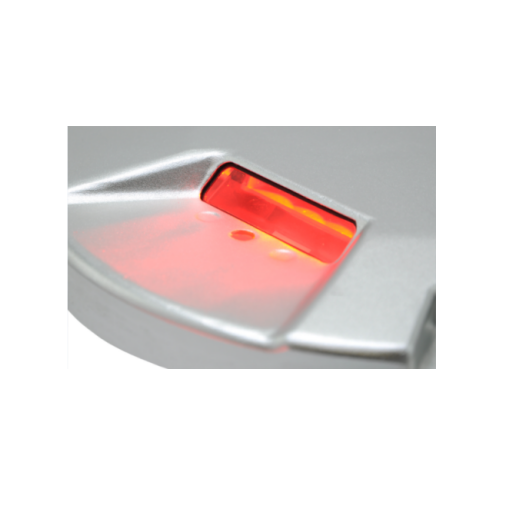

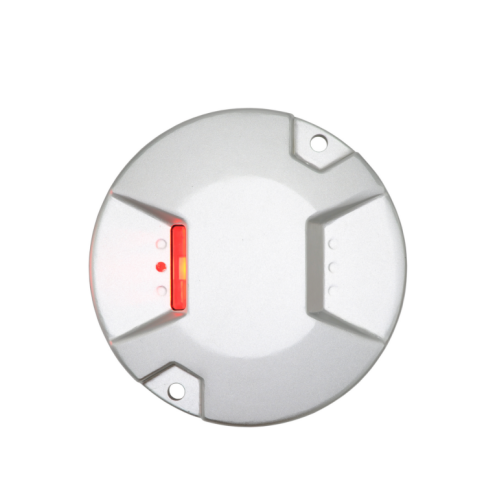

Altiglo OS-END-02-R(H) Halogen Inset Runway End Light is a top-of-the-line solution for improving runway visibility and safety. Its robust construction, easy installation, and energy-efficient performance make it a must-have for any airport looking to enhance their airfield lighting system. Upgrade to our Halogen Embedded Runway End Light today and experience the difference it can make in your airport operations.
Power supply: 2.8A-6.6A
Rated power: 1X105W
Halogen Life Time:1000 Hours
Minimum Average Intensity:2500cd
Color: Red
IP grade: IP68
Item: OS-END-02-R(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
OS-END-02-R(H)| Item | OS-END-02-R(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | 1X105W |
| Lamp | Halogen Lamp |
| Lamp Life | 1000Hours |
| Photometric Property - Light color | Red |
| Main beam angle | Vertical:0.25°~4.75° or 0.2°~4.7°; Horizontal ： ±6° |
| Min intensity | 2500cd |
| Light Size | 203*203*150mm(without shallow base） 220*220*150mm(with shallow base） |
| Weight | 3.5Kg(without shallow base） 6.1Kg(with shallow base） |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Angle of Main Light Beam | Average Intensity Actual |
| OS-END-02-R(H) - ICAO Figure A2-8 / FAA L-862E | Vertical |
| ±6̊ - 0.25°~4.75°/ 0.2°~4.7° | 3005 |
| 1 - Shallow base | Waterproof connector |
| 2 - O Sealing ring | Support plate |
| 3 - Shallow base cover | Screws |
| 4 - Joggle | Lower base |
| 5 - Waterproof connector | Joint porcelain |
| 6 - Screws | O Sealing ring |
Typically specified for Inset Type, Runway Lighting Series projects.
Common use cases include aluminium inset runway end light, fen - runway end halogen, fte - runway threshold and end halogen, halogen inset runway end light, halogen inset threshold and runway end light, inset runway end light.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
