OS-END-98-R(H) Halogen Inset runway end light(12”6mm)

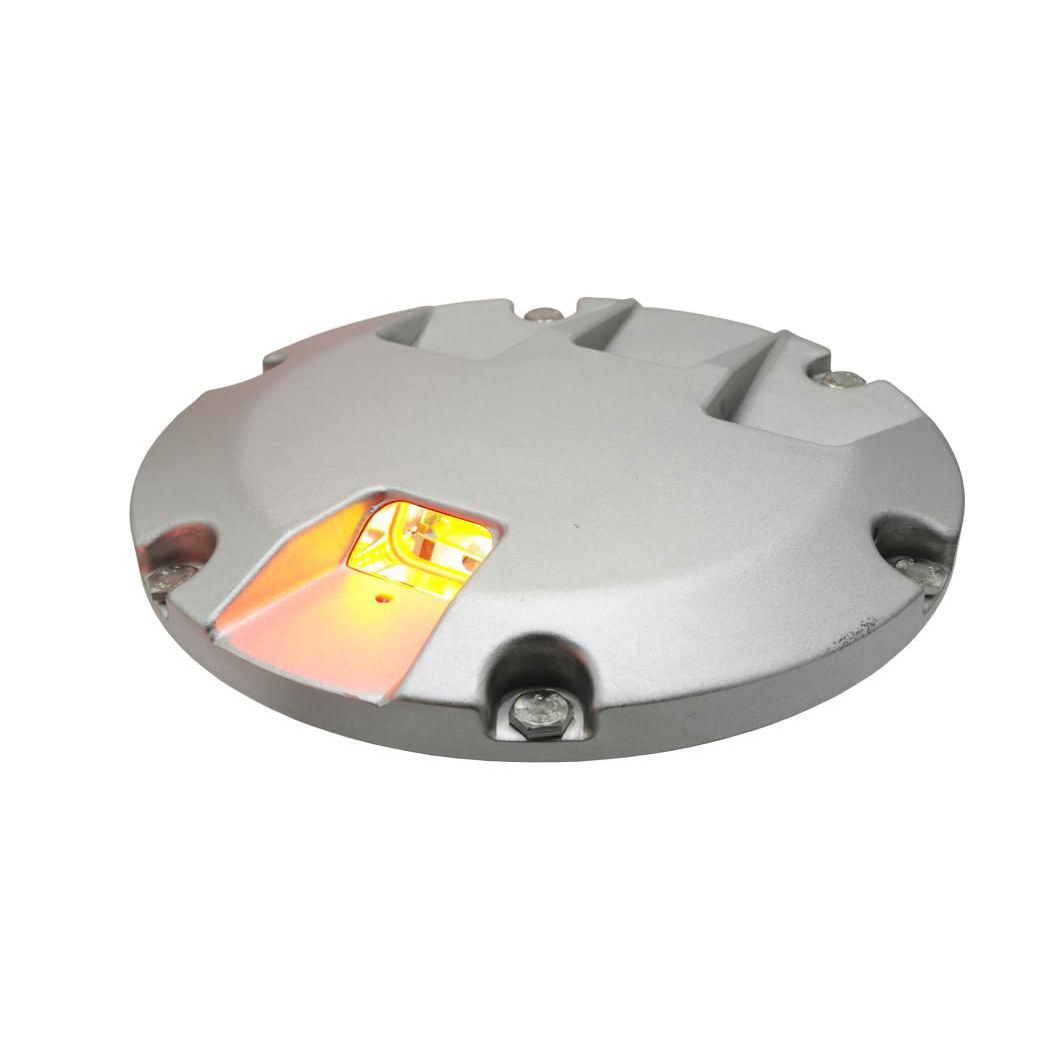

OS-END-98-R(H) Halogen Inset runway end light(12”6mm) - Image 3

Short Description:

Altiglo OS-END-98-R(H) halogen inset runway end light offers unmatched performance, durability, and reliability. Whether you are looking to upgrade your existing lighting system or install new runway lights, our product is the ideal choice for airports seeking to enhance safety and efficiency. With its outstanding visibility, energy efficiency, and robust construction, our halogen inset runway end light is the perfect solution for all airfield lighting needs.

Power supply: 2.8A-6.6A

Rated power:48W

Halogen Life Time:1000 Hours

Minimum Average Intensity:2500cd

Color: Red

IP grade: IP68

Item: OS-END-98-R(H)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-END-98-R(H)
Category: Inset Type, Runway Lighting Series

Item	OS-END-98-R(H)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A-6.6A
Rated power	48W
Lamp	Halogen Lamp
Lamp Life	1000Hours
Photometric Property - Light color	Red
Main beam angle	Vertical:0.25~4.75̊ or 0.2~4.7̊; Horizontal:± 6°
Min intensity	2500cd
Light Size	203203150mm(without shallow base） 220220150mm(with shallow base）
Packing Size	3.5Kg(without shallow base） 6.1Kg(with shallow base）
Weight	7Kg
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Angle of Main Light Beam	Average Intensity Actual
OS-END-98-R(H) - ICAO Figure A2-8/ FAA L850D	Vertical
±6̊ - 0.25~4.75 ̊ or 0.2~4.7̊	3128
1 - Shallow base	Driver assembly
2 - O Sealing ring	Waterproof connector
3 - Shallow base cover	O Sealing ring
4 - Joggle	Screws
5 - Waterproof connector	Lower cover
